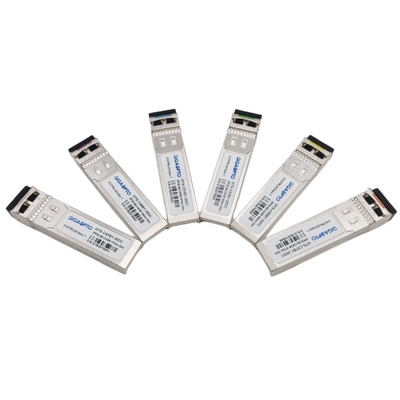

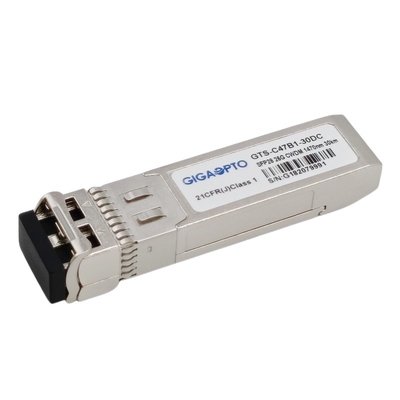

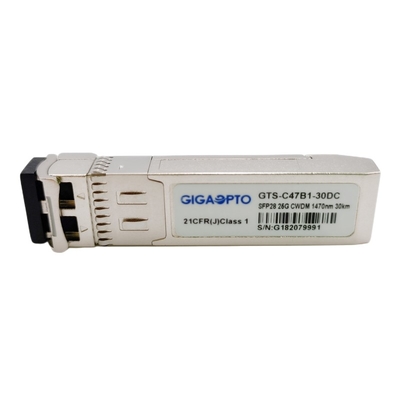

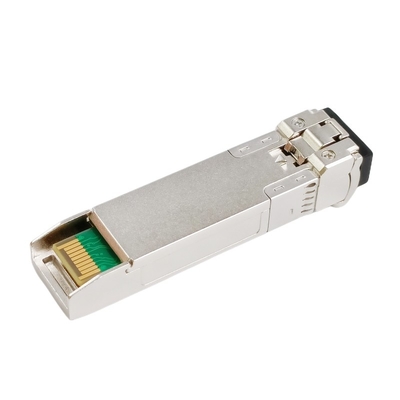

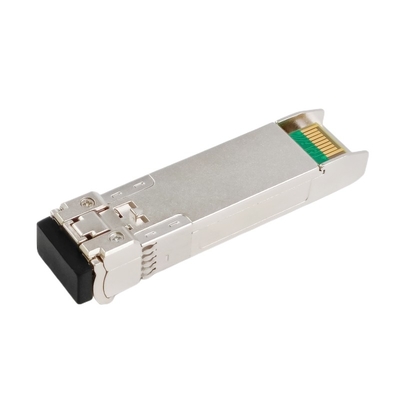

LC SMF Single Mode Transceiver Fiber Module DOM 25GBASE ERL CWDM SFP28 1470nm 1570nm 30km

Certification
China Shenzhen Gigaopto Technology Co., Ltd. certification
China Shenzhen Gigaopto Technology Co., Ltd. certification
I'm Online Chat Now

LC SMF Single Mode Transceiver Fiber Module DOM 25GBASE ERL CWDM SFP28 1470nm 1570nm 30km

LC SMF Single Mode Transceiver Fiber Module DOM 25GBASE ERL CWDM SFP28 1470nm 1570nm 30km
LC SMF Single Mode Transceiver Fiber Module DOM 25GBASE ERL CWDM SFP28 1470nm 1570nm 30km LC SMF Single Mode Transceiver Fiber Module DOM 25GBASE ERL CWDM SFP28 1470nm 1570nm 30km LC SMF Single Mode Transceiver Fiber Module DOM 25GBASE ERL CWDM SFP28 1470nm 1570nm 30km LC SMF Single Mode Transceiver Fiber Module DOM 25GBASE ERL CWDM SFP28 1470nm 1570nm 30km LC SMF Single Mode Transceiver Fiber Module DOM 25GBASE ERL CWDM SFP28 1470nm 1570nm 30km

Large Image :  LC SMF Single Mode Transceiver Fiber Module DOM 25GBASE ERL CWDM SFP28 1470nm 1570nm 30km

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-CxxB1-30DC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Single Package,10 or 20pcs per Tray,30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5,000pcs/month

LC SMF Single Mode Transceiver Fiber Module DOM 25GBASE ERL CWDM SFP28 1470nm 1570nm 30km

Description
Product: SFP28 CWDM Transceiver Data-Rate: 25Gbps
Wavelength: CWDM 1470nm/1490nm/1510nm/1530nm/1550nm/1570nm Interface: Duplex LC/UPC
Cable Distance: 30km Without FEC, 40km With FEC Keywords: 25G EML/APD CWDM 30km Transceiver, 1470nm ~1570nm CWDM SFP28 ER Lite
High Light:

SFP28 single mode transceiver

,

1470nm single mode transceiver

,

SMF single mode fiber module

25G CWDM 1470nm~1570nm SFP28 SMF 30km Without FEC LC Optical Transceiver Module DOM EML/APD





Functional Specification



Form Factor SFP28 Max Data Rate 25.78Gb/s
Wavelength CWDM (1470~1570)nm Reach 30km
Connector Dual LC Fiber Type single-mode fiber
Laser Type DML CWDM PD Type APD
Supply Voltage 3.3V Supply Current 450mA
TX Power 0~6dBm Receiver Sensitivity <-19dBm
Power-budget 19dB Receiver Overload >-5dBm
Power Consumption ≤1.5W ER. >4.0dB
DDM/DOM Yes FEC Function N/A
CDR TX and RX Environment Operating:0 to 70°C (32 to 158°F)
OEM/ODM Supported Warranty 3-year
Protocols MSA Compliant, CPRI, eCPRI
Compliance IEC/EN 61000-4-2,IEC-60825, FDA 21CFR 1040.10 and 1040.11,RoHS





Products Description of 25G SFP28 CWDM SFP28 (1470~1570)nm Transceiver Series



This 25GBase CWDM 1470nm~1570nm series SFP28 transceiver provides 25GBase-CWDM throughput up to 30km over single mode fiber (SMF) via an LC duplex connector.

This transceiver is fully compliant with SFP28 Multi-Source Agreement (MSA), IEEE 802.3cc 25GBASE-ERL and 25GAUI standard. The full-duplex SFP28 transceiver features highly reliable DML transmitter and APD photo detector to offer high performance interconnection at 25 Gb/s data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C).





Ordering Information



Part Number Description Wavelength Max Reach
GTS-C47B1-30DC 25G SFP28 CWDM DML CWDM + APD 1470nm 30km
GTS-C49B1-30DC 25G SFP28 CWDM DML CWDM + APD 1490nm 30km
GTS-C51B1-30DC 25G SFP28 CWDM DML CWDM + APD 1510nm 30km
GTS-C53B1-30DC 25G SFP28 CWDM DML CWDM + APD 1530nm 30km
GTS-C55B1-30DC 25G SFP28 CWDM DML CWDM + APD 1550nm 30km
GTS-C57B1-30DC 25G SFP28 CWDM DML CWDM + APD 1570nm 30km





Features



  • Hot pluggable SFP28 form factor
  • Data rate up to 25.78Gbps
  • Suitable for use in 1270nm-1370nm CWDM systems (20nm channel)
  • DML transmitter, APD photo receiver
  • Duplex LC optical connector
  • Link distances up to 30km on 9/125m SMF without FEC
  • Up to 40km on SMF with FEC
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1.5W
  • Operating temperature range: 0 to 70°C
  • Compliant with SFF-8402, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3cc 25GBASE-ERL
  • Compliant with RoHS, REACH, CE, FCC standards



Application



  • High-speed storage area networks
  • CPRI 10





Compatibility



All of Gigaopto's 25G CWDM 30km Transceivers are open sourced,can be coded to be fully compatible with mainstream devices, please refer to the following form( for example in 1470nm Wavelength channel), for more products compatibility, please feel free to contact us.



Corresponding Compatible Brand/Part Number
Compatible Brand Part Number Compatible Brand Part Number
Gigaopto GTS-C47B1-30DC Arista SFP-25G-CW-1470-30
Cisco CWDM-SFP25G-1470-30 Juniper EX-SFP-25GE-CWE47-30
Mellanox CWDM-SFP25G-30S Brocade XBR-SFP25G1470-30
HW CWDM-SFP25G-1470-30
