Product Details:
|
| Product Name: | 25G WDM Transceiver | Data-Rate: | 25.78Gb/s |
|---|---|---|---|
| Wavelength: | 1330nm/1270nm | Connector: | Simplex LC/UPC |
| Distance: | 10km | Latch Color: | Red |
| Temperature: | -40 To 85°C | OEM/ODM: | Yes |
| Keywords: | SFP28 1330nm/1270nm Module, 25G Bidi 10km | ||
| Highlight: | 1270nm WDM Transceiver,1330nm WDM Transceiver,10km Industrial Transceiver |
||
Cisco SFP-25GBX-D-10-I compatible 25GBASE-BX 10km Bidirectional 1330nm/1270nm Optical Fiber Module Temperature Range -40 to 85°C for Outdoor Deployment
Description

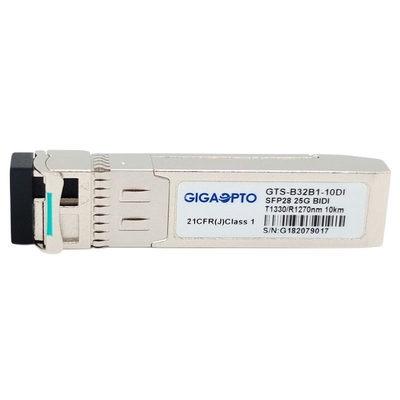

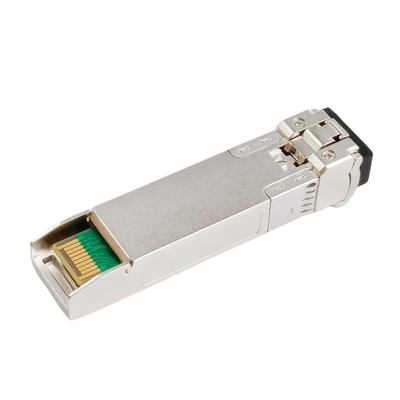

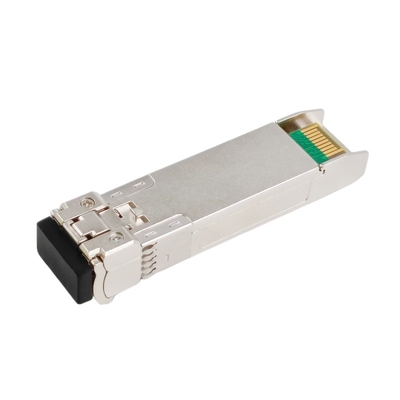

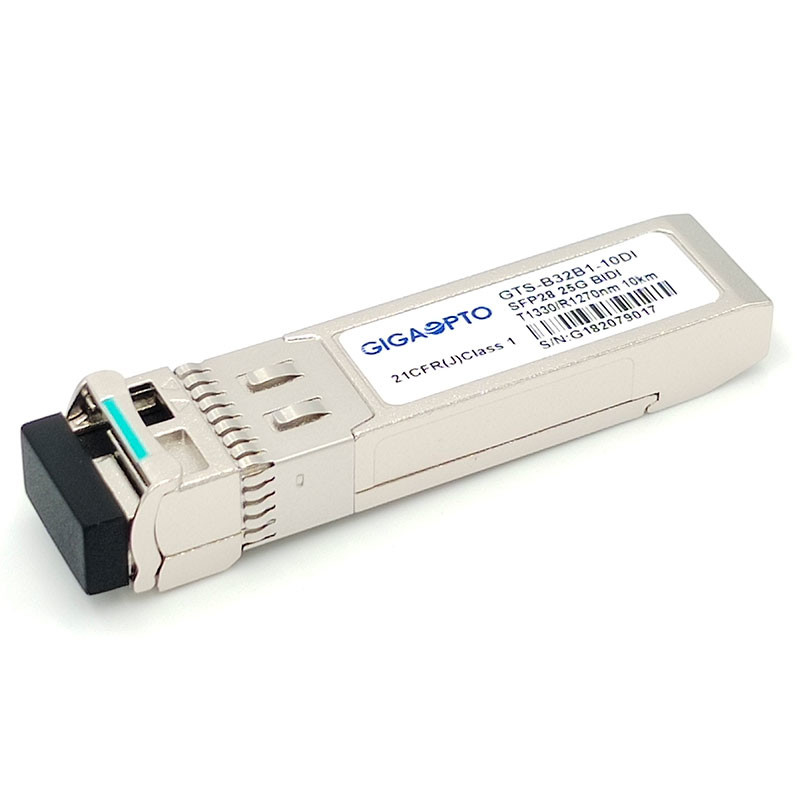

Gigaopto’s GTS-B32B1-10DI SFP28 optical transceivers are designed for bi-directional serial optical data communications such as Ethernet/eCPRI/CPRI links up to 25.78 Gb/s data rate and up to 10km link length. They are compliant to SFF-8472 Rev 12.2, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 3.0.
The transmitter section uses a 1330nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses a 1270nm integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a rate selection clock data recovery (CDR) IC.
Featuring with high quality components, this 25G BIDI LR transceiver is capable to work under the temperature range from -40 to 85°C, suitable for indoor and outdoor deployments such as 25G Ethernet, telecom and data center.
The SFP28 BIDI optical transceiver is compliant per the RoHS Directive 2011/65/EU.
This bidirectional unit must be used with another transceiver or network appliance of complementing wavelengths (our model P/N GTS-B23B1-10DI).
Specification
| Package | SFP28 | Data Rate(Gb/s) | 25Gb/s |
| Centre Wavelength | 1330nm-TX/1270nm-RX | Max Reach | 10km |
| Connector Type | LC/UPC Simplex | Fiber Type | SMF |
| Transmitter Type | DFB BiDi | Receiver Type | PIN |
| TX Power | -4~2.5dBm | Receiver Sensitivity | <-12dBm |
| Powerbudget | 8.0dB | Receiver Overload | >2.5dBm |
| Power Consumption | ≤1.2W | Extinction Ratio | >3.0dB |
| DDM/DOM | Yes | FEC Function | Not Supported |
| CDR | TX and RX | Industrial Temperature | -40 to 85°C (-40 to 185°F) |
| OEM/ODM | Supported | Warranty | 3 years |
| Protocols | SFF-8472, SFF-8402, SFF-8432, SFF-8431, CEI-28G-VSR | ||
Features
Application
Compatibility
Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.
For this GTS-B32B1-10DI, please refer to the P/N correspondence table. If you are interested in knowing more compatibility, you are always welcome to contact us.
| Compatible Brand | Compatible Part Number | Compatible Brand | Compatible Part Number |
| Gigaopto | GTS-B32B1-10DI | Arista | SFP-25G-BD-I |
| Cisco | SFP-25GBX-D-10-I | HW | 25GBase-BX-D-I |
| Brocade | 25G-SFP28-BXD-I | Juniper | SFP28-25G-BX-I |
| Mellanox | SFP28-25G-BX-I |
For More of our SFP28 25GBASE Transceiver Series, please refer to the following table
| Part Number | Description | Wave Length | Transmission | Media | TX Power (dBm) | Rx Sens. (dBm) |
| GTS-L08B1-01DC | 25G SR | 850nm | 100m | MMF | -6.4~2.4 | < -10.3 |
| GTS-L08B1-03DC | 25G eSR | 850nm | 300m | MMF | -6.4~2.4 | < -10.3 |
| GTS-L08B1-01MC | 25G CSR Dual Rate 10/25G | 850nm | 100m | MMF | -5~2.4 | ＜-10.3 |
| GTS-L13B1-10DC | 25G LR | 1310nm | 10km | SMF | -4.5~2.5 | <-11.4 |
| GTS-L13B1-30DC | 25G ER Lite | 1310nm | 30km | SMF | 0~6 | <-19 |
| GTS-L13B1-40DC | 25G ER | 1310nm | 40km | SMF | 0~6 | <-19 |
| GTS-B23B1-10DC | 25G BD LR | 1270/1330nm | 10km | SMF | -2~4 | <-13 |
| GTS-B32B1-10DC | 25G BD LR | 1330/1270nm | 10km | SMF | -2~4 | <-13 |
| GTS-B23B1-20DC | 25G BiDi eLR | 1270/1330nm | 20km | SMF | 0~6 | <-14 |
| GTS-B32B1-20DC | 25G BiDi eLR | 1330/1270nm | 20km | SMF | 0~6 | <-14 |
| GTS-B23B1-40DC | 25G BD ER | 1270/1330nm | 40km | SMF | 0~6 | <-18 |
| GTS-B32B1-40DC | 25G BD ER | 1330/1270nm | 40km | SMF | 0~6 | <-18 |
| GTS-CxxB1-10DC | 25G CWDM LR | C27/C29/C31/C33/C35/C37 | 10km | SMF | 0~6 | <-14 |
| GTS-CxxB1-10DC | 25G CWDM LR | C47/C49/C51/C53/C55/C57 | 10km | SMF | 0~6 | <-14 |
| GTS-CxxB1-30DC | 25G CWDM ER Lite | C27/C29/C31/C33/C35/C37 | 30km | SMF | 0~6 | <-19 |
| GTS-CxxB1-30DC | 25G CWDM ER Lite | C47/C49/C51/C53/C55/C57 | 30km | SMF | 0~6 | <-19 |
| GTS-DxxB1-10DC | 25G DWDM LR 100GHz | C17~C61 | 10km | SMF | -2~6 | <-12 |
| Note | OEM/ODM supported | |||||
