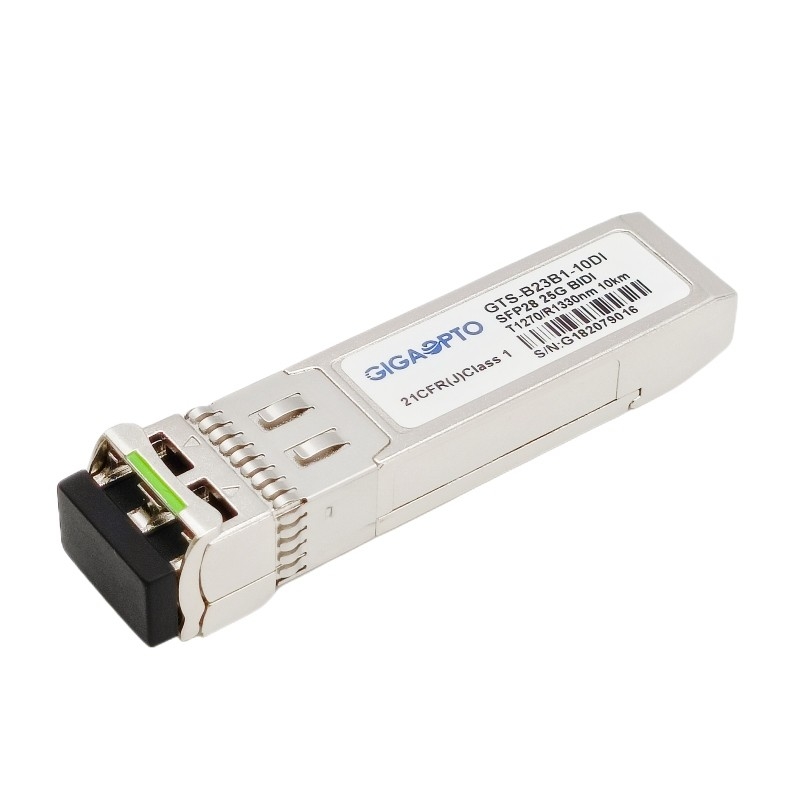

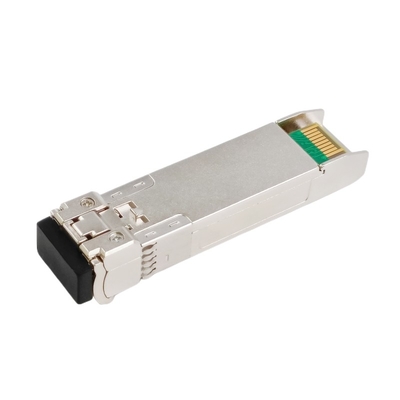

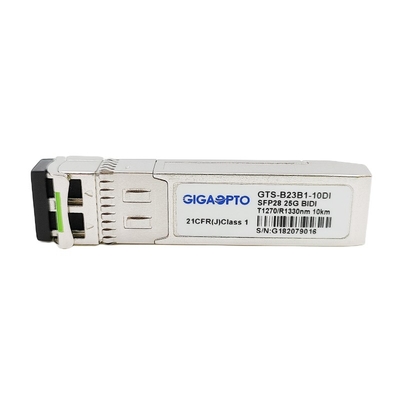

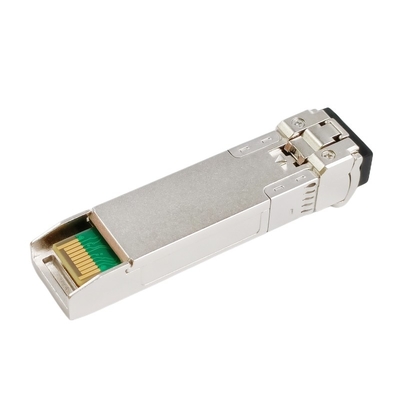

WDM SFP28 Optical Transceiver Module 10km LC DOM 1270nm TX 1330nm RX Industrial

WDM SFP28 Optical Transceiver Module 10km LC DOM 1270nm TX 1330nm RX Industrial
WDM SFP28 Optical Transceiver Module 10km LC DOM 1270nm TX 1330nm RX Industrial WDM SFP28 Optical Transceiver Module 10km LC DOM 1270nm TX 1330nm RX Industrial WDM SFP28 Optical Transceiver Module 10km LC DOM 1270nm TX 1330nm RX Industrial WDM SFP28 Optical Transceiver Module 10km LC DOM 1270nm TX 1330nm RX Industrial

Large Image :  WDM SFP28 Optical Transceiver Module 10km LC DOM 1270nm TX 1330nm RX Industrial

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE,FCC,RoHs, TUV,UL
Model Number: GTS-B23B1-10DI
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Single Package,10 or 20pcs per Tray,30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20,000pcs/month

WDM SFP28 Optical Transceiver Module 10km LC DOM 1270nm TX 1330nm RX Industrial

Description
Product Name: 25G BiDi Transceiver 10km Bit-Rate: 25.78Gb/s
Wavelength: 1270nm-TX/1330nm-RX Connector: Simplex LC/UPC
Distance: 10km Latch Color: Blue
Temperature: -40 To 85°C OEM/ODM: Supported
Keywords 1: 1270nm/1330nm Fiber Transceiver Module Keywords 2: 25G WDM Optical Transceiver
High Light:

WDM SFP28 Optical Transceiver

,

10km SFP28 Optical Transceiver

,

25g bidi sfp28

Industrial Operating Temperature  25.78Gbps SFP28 BIDI LR Transceiver Single Mode 10km Reach 1270nm TX / 1330nm RX





Description



Gigaopto’s GTS-B23B1-10DI transceiver provides 25GBase throughput up to 10km over single mode fiber (SMF) using a wavelength of 1270nm-TX/1330nm-RX via LC simplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance amplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Featuring with high quality components, this 25G BIDI LR transceiver is capable to work under the temperature range from -40 to 85°C, suitable for indoor and outdoor deployments.

It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard. SFF-8472 digital diagnostics functions are available via an I2C interface.





Specification



Form Factor SFP28 Data Rate(Gbps) 25.78G
Center Wavelength 1270nm-TX/1330nm-RX Max Reach 10km
Connector Type Simplex LC/UPC Fiber Type SMF
LD Type DFB BiDi PD Type PIN
TX Power -4~2.5dBm Receiver Sensitivity <-12dBm
Powerbudget 8dB Receiver Overload 2.5dBm
Power Consumption ≤1.2W Extinction Ratio 3dB
DDM/DOM Supported FEC Function Not Supported
CDR TX & RX Built-in CDR Temperature Range -40 to 85°C (-40 to 185°F)
OEM/ODM Supported Warranty 3 years
Protocols SFF-8472, SFF-8402, SFF-8432, SFF-8431, CEI-28G-VSR





Features



  • 1-Fiber Bi-Directional SFP Optical Transceiver
  • Supports up to 25.78Gbps bit rates
  • Hot-pluggable SFP28 footprint
  • 1270nm DFB laser and 1330nm PIN photodiode,Up to 10 km Transmission Distance
  • Compliant with SFP28 MSA with simplex LC connector
  • Single 3.3V±5% Power Supply
  • Real Time Digital Diagnostic Monitoring
  • Low Power Consumption <1.2W
  • -40℃ to 85℃ Operating Case Temperature Range
  • Compatible with RoHS



Application



  • 25GE LR
  • eCPRI & CPR



Compatibility



Gigaopto manufactures and stocks a full range of optical transceivers up to 100G. All of our optical transceiver modules are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, HW, Alcatel-Lucent, Extreme, Arista, Force10, D-link, 3Com, etc. and offer a 3-year warranty.

For this GTS-B23B1-10DI fiber transceiver, please refer to the P/N correspondence table. If you need more compatibility, please don’t hesitate to let us know.



Corresponding Compatible Brand/Part Number
Brand Part Number Brand Part Number
Gigaopto GTS-B23B1-10DI Arista SFP-25G-BD-I
Cisco SFP-25GBX-U-10-I HW 25GBase-BX-U-I
Brocade 25G-SFP28-BXU-I Juniper SFP28-25G-BX-I
Mellanox SFP28-25G-BX-I





For More of our SFP28 25GBASE Transceiver Series, please refer to the following table



Part Number Description Wave Length Transmission Media TX Power (dBm) Rx Sens. (dBm)
GTS-L08B1-01DC 25G SR 850nm 100m MMF -6.4~2.4 < -10.3
GTS-L08B1-03DC 25G eSR 850nm 300m MMF -6.4~2.4 < -10.3
GTS-L08B1-01MC 25G CSR Dual Rate 10/25G 850nm 100m MMF -5~2.4 <-10.3
GTS-L13B1-10DC 25G LR 1310nm 10km SMF -4.5~2.5 <-11.4
GTS-L13B1-30DC 25G ER Lite 1310nm 30km SMF 0~6 <-19
GTS-L13B1-40DC 25G ER 1310nm 40km SMF 0~6 <-19
GTS-B23B1-10DC 25G BD LR 1270/1330nm 10km SMF -2~4 <-13
GTS-B32B1-10DC 25G BD LR 1330/1270nm 10km SMF -2~4 <-13
GTS-B23B1-20DC 25G BiDi eLR 1270/1330nm 20km SMF 0~6 <-14
GTS-B32B1-20DC 25G BiDi eLR 1330/1270nm 20km SMF 0~6 <-14
GTS-B23B1-40DC 25G BD ER 1270/1330nm 40km SMF 0~6 <-18
GTS-B32B1-40DC 25G BD ER 1330/1270nm 40km SMF 0~6 <-18
GTS-CxxB1-10DC 25G CWDM LR C27/C29/C31/C33/C35/C37 10km SMF 0~6 <-14
GTS-CxxB1-10DC 25G CWDM LR C47/C49/C51/C53/C55/C57 10km SMF 0~6 <-14
GTS-CxxB1-30DC 25G CWDM ER Lite C27/C29/C31/C33/C35/C37 30km SMF 0~6 <-19
GTS-CxxB1-30DC 25G CWDM ER Lite C47/C49/C51/C53/C55/C57 30km SMF 0~6 <-19
GTS-DxxB1-10DC 25G DWDM LR 100GHz C17~C61 10km SMF -2~6 <-12
Note OEM/ODM supported
