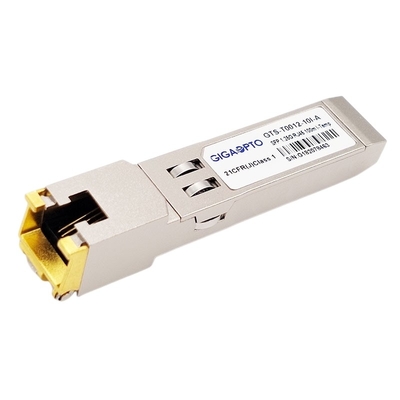

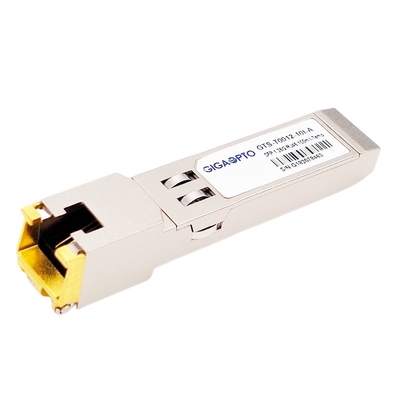

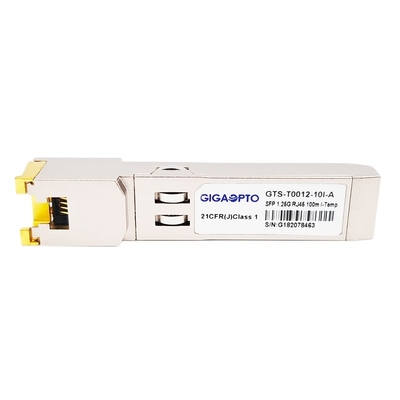

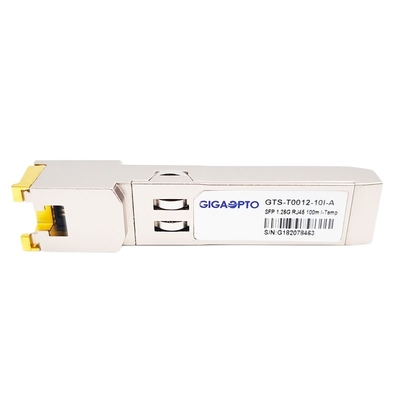

1000Mbps Single Mode SFP Optical Transceiver Module 1000BASE T Copper RJ-45 100m Industrial

1000Mbps Single Mode SFP Optical Transceiver Module 1000BASE T Copper RJ-45 100m Industrial
1000Mbps Single Mode SFP Optical Transceiver Module 1000BASE T Copper RJ-45 100m Industrial 1000Mbps Single Mode SFP Optical Transceiver Module 1000BASE T Copper RJ-45 100m Industrial 1000Mbps Single Mode SFP Optical Transceiver Module 1000BASE T Copper RJ-45 100m Industrial 1000Mbps Single Mode SFP Optical Transceiver Module 1000BASE T Copper RJ-45 100m Industrial

Large Image :  1000Mbps Single Mode SFP Optical Transceiver Module 1000BASE T Copper RJ-45 100m Industrial

Product Details:
Place of Origin: China
Brand Name: GIGAOPTO
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-T0012-10I-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs / month

1000Mbps Single Mode SFP Optical Transceiver Module 1000BASE T Copper RJ-45 100m Industrial

Description
Product Name: 1000BASE Copper SFP Product Form Type: SFP
Speed: 1000Mbps Max Reach: 100m (328ft)
Connector Type: RJ-45 Typical Power Consumption: 1.05W
Media Type: CAT6/CAT6a Ambient Temperature Range (IND): -40 To 85℃
Keywords: 1000BASE-T 1G Copper SFP, RJ-45 SFP Copper Module, SFP Copper Optical Module
High Light:

Copper SFP Optical Transceiver

,

1000BASE T SFP Optical Transceiver

,

1000mbps Single Mode SFP

Cisco Compatible 1Gbps 1000BASE-T SFP Transceiver Module Copper 100m Industrial RJ-45





Description



The GIGAOPTO's GTS-T0012-10I-A transceiver is a high performance, cost-effective Copper Small Form Pluggable (SFP) module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE802.3ab, which supports 1000Mbps data-rate up to 100 meters reach over unshielded twisted-pair category 5 cables. Its electrical interface is MSA compliant 20-pin edge type connector and the line-side interface is RJ45 connector. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with the address of A0h via the 2 wire serial CMOS EEPROM protocol.



Featuring low power consumption (1.05W for 100m), the hot swappable 1000Mbps SFP transceiver is compatible with various brands of hosts, widely used in data centers and enterprise networks.





Specification



Compatible Brand CISCO Compatible Part Number GLC-TE-I
Form Factor Copper SFP Speed 1000Mbps
Optical Receptacle Type RJ-45 Cable Length 100m (328ft)
DDM/DOM Not supported Cable Type Cat 6/Cat 6a
Storage Temperature 0 to 70°C Industrial Temperature -40 to 85°C (-40 to 185°F)
Warranty 3 Years Input Voltage 3.3V
Power Consumption 1.05W Supply Current <350mA
Rx LOS No Surge Current <30mA
Protocols MSA Compliant, IEEE STD 802.3 and 802.3ab





Features



  • Support 1000BASE-T operation in Host Systems
  • For 100m Reach Over UTP Cat 5/5e/6 Cable
  • Fully metallic enclosure for low EMI
  • Low power dissipation (1.05W typical)
  • Compact RJ-45 connector assembly
  • Access to physical layer IC via 2-wire serial bus
  • Hot-Pluggable SFP Footprint
  • Detailed product information in EEPROM
  • Single 3.3V power supply voltage
  • Operating case temperature: Industrial: -40°C~85°C (-40 to 185°F)
  • Compliant with INF-8074i, SFF-8472
  • Compliant with IEEE 802.3ab 1000BASE-T
  • Compliant with RoHS6





Application



  • LAN 1000Base-T
  • Gigabit Ethernet over Cat 5/5e/6Cable
  • Switch to Switch Interface
  • Router/Server Interface





Compatibility



Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.
For this (1000BASE-T Copper SFP 100m Industrial), please refer to the P/N correspondence table. If you are interested in knowing more compatibility, you are always welcome to contact us.



Compatible Brand Compatible Part Number Compatible Brand Compatible Part Number
GIGAOPTO GTS-T0012-10I-A CISCO GLC-TE-I
CISCO SFP-GE-T-I





Ordering Information



P/N Description Data Rate Reach Media Interface
GTS-T0012-10-A 1000BASE-T SFP Copper 1000Mbps 100m Cat 5e/6/6a RJ-45
GTS-T0012-10-C 10/100/1000BASE-T SFP Copper 10/100/1000Mbps 100m Cat 6/Cat 6a RJ-45
GTS-T0012-10I-A 1000BASE-T SFP Copper 1000Mbps 100m Cat 6/Cat 6a RJ-45
