Product Details:
|
| Product Name: | 1000BASE-ZX SFP | Form Factor: | SFP |
|---|---|---|---|
| Max Data Rate: | 1.25Gbps | Transmission Distance: | 160km |
| Media: | Single-Mode Fiber | Wavelength: | 1550nm |
| Connector: | Duplex LC | RoHS Compliant: | Yes |
| Keywords: | 1.25G SFP Module, SFP 1000BASE-ZX, 1550nm Transceiver Module | ||
| High Light: | Duplex SFP Optical Transceiver,1550nm SFP Optical Transceiver,1000BASE ZX |
||

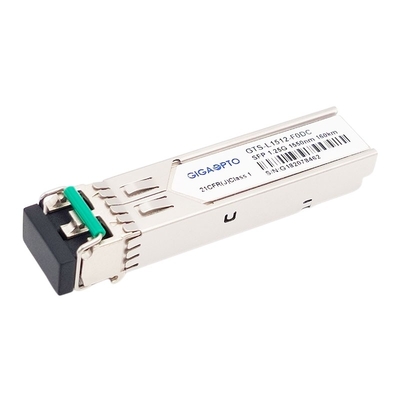

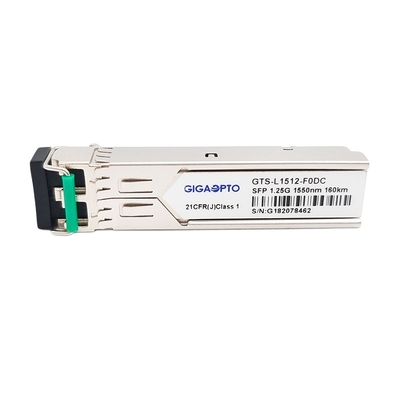

Cisco Compatible 1000BASE-ZX 1550nm SMF 160km DOM Duplex LC SFP Transceiver Module
Description
The GIGAOPTO's GTS-L1512-F0DC transceiver is a small form factor pluggable module that provides 1000BASE-ZX throghput up to 160km over single-mode fiber using a wavelength of 1550nm via an LC connector. Digital optical monitoring (DOM) is built in to allow access to real-time operating parameters. The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the APD photo-detector .The module data link up to 160km in 9/125um single mode fiber. The 1G SFP module is designed to be compliant with SFF-8472 SFP Multi-Source Agreement (MSA).
Specification
| Compatible Brand | CISCO | Compatible P/N | GLC-ZX-SM-160 |
| Form Type | SFP | Data Rate | 1.25Gb/s |
| Connector | Dual LC | Max Distance | 160km |
| DOM | Supported | Media | SMF |
| Warranty | 3 years | Operating Temperature |
C-Temp. 0 to 70°C(32 to 158°F) I-Temp. -40 to 85°C (-40 to 185°F) |
| Center Wavelength | 1550nm | Power Supply Voltage | 3.3V |
| Power Consumption |
<1W |
Supply Current |
<300mA |
| Laser Type | DFB | PD Type | APD |
| Average Output Power | 0~6dBm | RX Sensitivity | -34dBm |
|
Extinction Ratio ER |
>9dB | RX Overload | >-8dBm |
| Protocols | 1000BASE Ethernet, MSA Compliant | ||
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator
according to the table.
| Distance | ≤5km | ≤25km | ≤45km | ≤65km |
| Attenuator | 20dB | 15dB | 10dB | 5dB |
Features
C-Temp: 0°C~70°C
I-Temp: -40°C~85°C
Application
Compatibility
Gigaopto's optical transceivers are 100% compatible with many famous switch brands and will not cause damage to OEM devices. In order to ensure the quality and compatibility of our products, each product is carefully tested on the corresponding equipment before delivery to customers.
For this (1000BASE-ZX SFP 1550nm 160km) compatibility, please refer to the P/N correspondence table. If the brand and part number you are looking for is not listed below, please let us know and we will be delighted to provide you with more details.
| Compatible Brand | Compatible Part Number | Compatible Brand | Compatible Part Number |
| GIGAOPTO | GTS-L1512-F0DC | Juniper | SFP-1GE-EZX-160 |
| CISCO | GLC-ZX-SM-160 | Arista | SFP-1G-EZX-160 |
| Alcatel-Lucent | SFP-GIG-ZXC | Brocade | E1MG-ZXC-160 |
Ordering Information
| P/N | Description | Speed | Wavelength | Reach | Fiber Type | Interface |
| GTS-L0812-02DC | 1000BASE-SX SFP | 1250M | 850nm |
550m@OM2 275m@OM1 220m@FDDI |
MMF | Duplex LC |
| GTS-L1312-M2DC | 1000BASE-SX SFP | 1250M | 1310nm | 2km@OM4 | MMF | Duplex LC |
| GTS-L1312-10DC | 1000BASE-LX SFP | 1250M | 1310nm | 10km@SMF | SMF | Duplex LC |
| GTS-L1312-20DC | 100BASE-LH SFP | 1250M | 1310nm | 20km | SMF | Duplex LC |
| GTS-L1512-40DC | 1000BASE-EX SFP | 1250M | 1550nm | 40km | SMF | Duplex LC |
| GTS-L1312-40DC | 1000BASE-EX SFP | 1250M | 1310nm | 40km | SMF | Duplex LC |
| GTS-L1512-80DC | 1000BASE-ZX SFP | 1250M | 1550nm | 80km | SMF | Duplex LC |
| GTS-L1512-A0DC | 1000BASE-EZX SFP | 1250M | 1550nm | 100km | SMF | Duplex LC |
| GTS-L1512-C0DC | 1000BASE-EZX SFP | 1250M | 1550nm | 120km | SMF | Duplex LC |
| GTS-L1512-F0DC | 1000BASE-EZX SFP | 1250M | 1550nm | 160km | SMF | Duplex LC |
Pin Definition
Typical Application Circuit
Package Outline
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
