SFP28 Bidirectional Optical Transceiver Module 10km LC DOM 1270nm-TX/1330nm-RX

Certification
China Shenzhen Gigaopto Technology Co., Ltd. certification
China Shenzhen Gigaopto Technology Co., Ltd. certification
I'm Online Chat Now

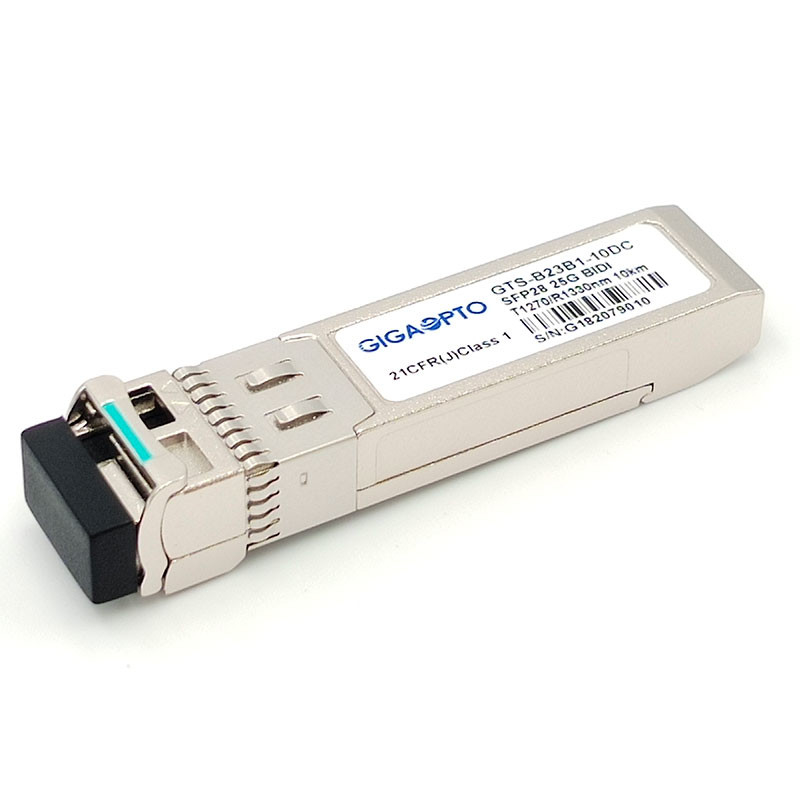

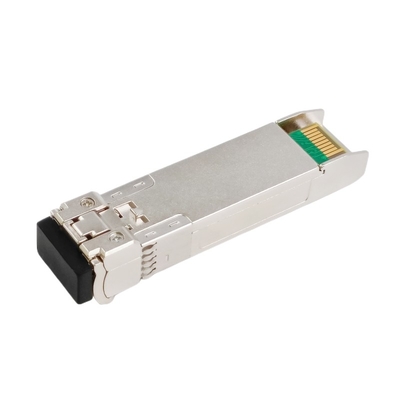

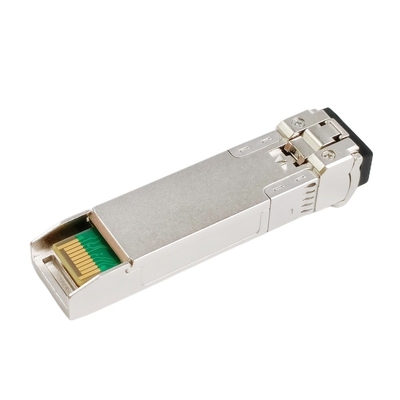

SFP28 Bidirectional Optical Transceiver Module 10km LC DOM 1270nm-TX/1330nm-RX

SFP28 Bidirectional Optical Transceiver Module 10km LC DOM 1270nm-TX/1330nm-RX
SFP28 Bidirectional Optical Transceiver Module 10km LC DOM 1270nm-TX/1330nm-RX SFP28 Bidirectional Optical Transceiver Module 10km LC DOM 1270nm-TX/1330nm-RX SFP28 Bidirectional Optical Transceiver Module 10km LC DOM 1270nm-TX/1330nm-RX SFP28 Bidirectional Optical Transceiver Module 10km LC DOM 1270nm-TX/1330nm-RX

Large Image :  SFP28 Bidirectional Optical Transceiver Module 10km LC DOM 1270nm-TX/1330nm-RX

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-B23B1-10DC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Single Package,10 or 20pcs per Tray,30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50,000pcs/month

SFP28 Bidirectional Optical Transceiver Module 10km LC DOM 1270nm-TX/1330nm-RX

Description
Product Name: SFP28 Bidirectional Optical Transceiver Data Rate (Gbps): 25.78Gbps
Wavelength: 1270nm-TX/1330nm-RX Connector: Simplex LC
Transmission: 10km Latch Color: Blue
Warranty: 3 Years Keywords: SFP-25GBX-U, 25G BiDi SFP28 10km
High Light:

SFP28 Bidirectional Optical Transceiver Bidirectional Optical Transceiver

,

10km Bidirectional Optical Transceiver

,

25G BiDi SFP28

25.78Gbps SFP28 BIDI LR Transceiver Single Mode 10km Reach 1270nm TX / 1330nm RX





Description



Gigaopto’s GTS-B23B1-10DC SFP28 optical transceivers are designed for bi-directional serial optical data communications such as Ethernet/eCPRI/CPRI links up to 25.78 Gb/s data rate and up to 10km link length. They are compliant to SFF-8472 Rev 12.2, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 3.0.

The transmitter section uses a 1270nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses a 1330nm integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a rate selection clock data recovery (CDR) IC.

The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

This bidirectional unit must be used with another transceiver or network appliance of complementing wavelengths (our model P/N GTS-B32B1-10DC).





Specification



Packaging /Technology SFP28 BiDi Bit Rate 25.78Gbps
Wavelength 1270nm-TX/1330nm-RX Transmission 10km
Connector LC Simplex Cable Type single-mode fiber
Transmitter Type DFB Receiver Type PIN
TX Power -2~4dBm Receiver Sensitivity <-13dBm
Powerbudget 11dB Overload >2dBm
Power Dissipation ≤1W Extinction Ratio >3.5dB
Digital Diagnostic Monitoring Supported FEC Function Not Supported
CDR TX and RX Temperature Range 0 to 70°C (32 to 158°F)
OEM/ODM Supported Warranty 3 years
Protocols 25GBASE-BX Ethernet,CPRI 10
Compliance IEC/EN 61000-4-2,IEC-60825,FDA 21CFR 1040.10 and 1040.11,RoHS





Features



  • Supports up to 25.78Gbps bit rates
  • Hot-pluggable SFP+ footprint
  • 1270nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
  • Compliant with SFP28  MSA and SFF-8472 with duplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real Time Digital Diagnostic Monitoring
  • Operating case temperature:Standard: 0 to +70°C



Application



  • 25GE LR
  • eCPRI & CPR



Compatibility



As a global provider of Brand Compatible Networking products, we have made significant investments over the past few years to support our customers, as well as in our physical infrastructure and test equipment platforms. Our overall trusted engineering and testing capabilities allow us to produce a large selection of Brand Compatible Transceivers. This GTS-B23B1-10DC optical transceiver is 100% compatible with mainstream optical devices. Below is a table of P/N correspondence for different brand modules. For more compatibility, please don't hesitate to contact us.



Corresponding Compatible Brand/Part Number
Brand Part Number Brand Part Number
Gigaopto GTS-B23B1-10DC Arista SFP-25G-BD
Cisco SFP-25GBX-U-10 HW 25GBase-BX-U
Brocade 25G-SFP28-BXU Juniper SFP28-25G-BX
Mellanox SFP28-25G-BX







For More of our SFP28 25GBASE Transceiver Series, please refer to the following table:



Part Number Description Wave Length Transmission Media TX Power (dBm) Rx Sens. (dBm)
GTS-L08B1-01DC 25G SR 850nm 100m MMF -6.4~2.4 < -10.3
GTS-L08B1-03DC 25G eSR 850nm 300m MMF -6.4~2.4 < -10.3
GTS-L08B1-01MC 25G CSR Dual Rate 10/25G 850nm 100m MMF -5~2.4 <-10.3
GTS-L13B1-10DC 25G LR 1310nm 10km SMF -4.5~2.4 <-11.4
GTS-L13B1-30DC 25G ER Lite 1310nm 30km SMF 0~6 <-19
GTS-L13B1-40DC 25G ER 1310nm 40km SMF 0~6 <-19
GTS-B23B1-10DC 25G BD LR 1270/1330nm 10km SMF -2~4 <-13
GTS-B32B1-10DC 25G BD LR 1330/1270nm 10km SMF -2~4 <-13
GTS-B23B1-20DC 25G BiDi eLR 1270/1330nm 20km SMF 0~6 <-14
GTS-B32B1-20DC 25G BiDi eLR 1330/1270nm 20km SMF 0~6 <-14
GTS-B23B1-40DC 25G BD ER 1270/1330nm 40km SMF 0~6 <-18
GTS-B32B1-40DC 25G BD ER 1330/1270nm 40km SMF 0~6 <-18
GTS-CxxB1-10DC 25G CWDM LR C27/C29/C31/C33/C35/C37 10km SMF 0~6 <-14
GTS-CxxB1-10DC 25G CWDM LR C47/C49/C51/C53/C55/C57 10km SMF 0~6 <-14
GTS-CxxB1-30DC 25G CWDM ER Lite C27/C29/C31/C33/C35/C37 30km SMF 0~6 <-19
GTS-CxxB1-30DC 25G CWDM ER Lite C47/C49/C51/C53/C55/C57 30km SMF 0~6 <-19
GTS-DxxB1-10DC 25G DWDM LR 100GHz C17~C61 10km SMF -2~6 <-12
Note OEM/ODM supported
