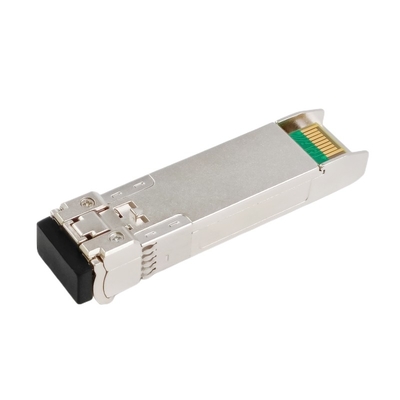

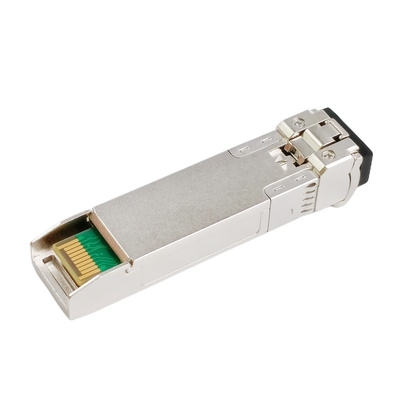

SFP28 30km 25GBASE ER Lite SMF 1310nm Optical Transceiver Module Duplex LC DOM

25G Ethernet SFP28 30km SFP-25G-ER-S Optical Fiber Transceiver 1310nm DDM/DOM

Description

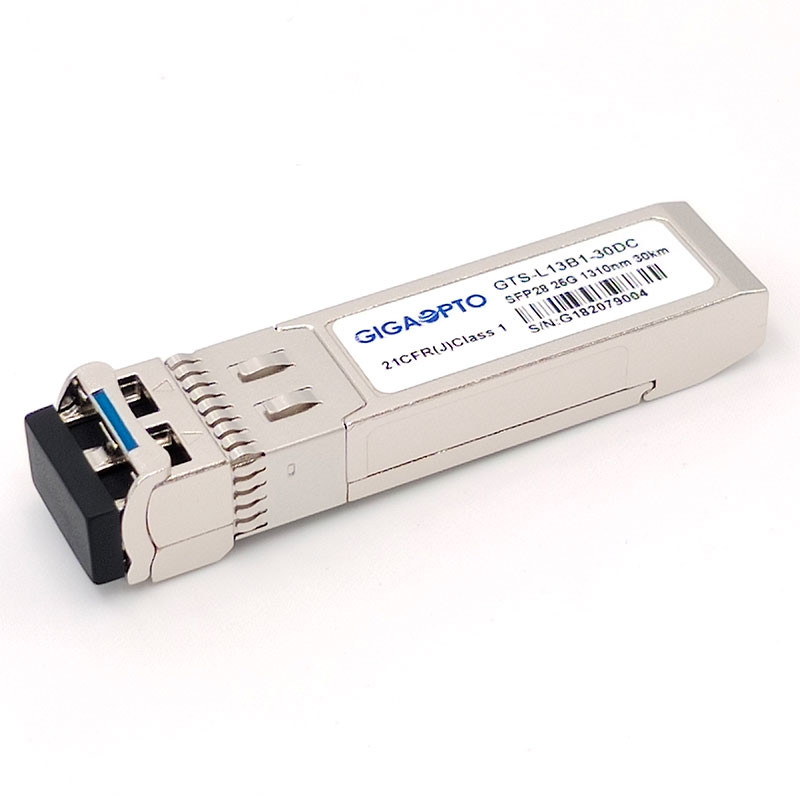

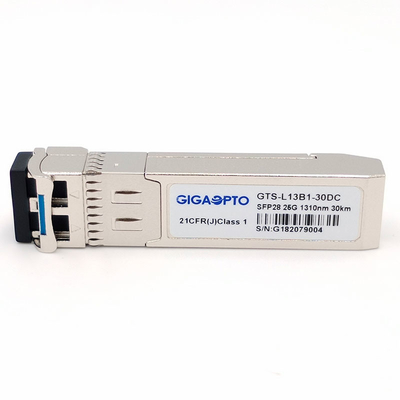

Gigaopto’s GTS-L13B1-30DC SFP28 transceiver provides 25GBase throughput up to 30km (without FEC) over single mode fiber (G.652 SMF) using a wavelength of 1310nm via LC duplex connector.

This module consists of two sections: the transmitter section uses a 1310 nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825, the receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a rate selection clock data recovery (CDR) IC

Real time digital diagnostic monitoring functions are available via an I2C interface, as defaulted in SFF-8472.

This 25G ER Lite Transceiver is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

Specification

Features

• Up to 25.78Gb/s data links
• Hot-Pluggable SFP28 footprint
• Duplex LC connector
• DML laser transmitter, APD photodetector
• Up to 30km on SMF without FEC
• Single 3.3V power supply
• Operating case temperature range: 0~ 70°C
• RoHS compliant
• 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

Application

• High-speed storage area networks
• CPRI 10

Compatibility

All Gigaopto’s transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.

For this GTS-L13B1-30DC optical transceiver, please refer to the P/N correspondence table. For more product compatibility, please feel free to let us know.

For More of our 25GBASE Transceiver Series, please refer to the following table
