Product Details:
|
| Product Name: | 1000BASE-BX BIDI CSFP | Form Factor: | CSFP |
|---|---|---|---|
| Data Rate: | 1.25Gb/s | Distance: | 10km (6.2 Miles) |
| Wavelength: | 1310nm-TX/1490nm-RX | Connector: | LC |
| Receiver Sensitivity: | < -22dBm | Max. Power Consumption: | 1.5W |
| Keywords: | CSFP BiDi Transceiver, 1000BASE-BX 1.25G, 2-Channel BiDi CSFP Module | ||
| Highlight: | 2 Channel CSFP Optical Transceiver,BiDi CSFP Optical Transceiver,1.25G BiDi Optical Transceiver |
||
Cisco Compatible 2-Channel 1000BASE-BX BiDi CSFP Transceiver Module TX1490nm/RX1310nm SMF 10km DOM Duplex LC
Description

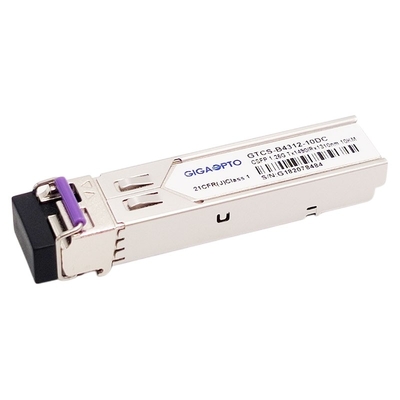

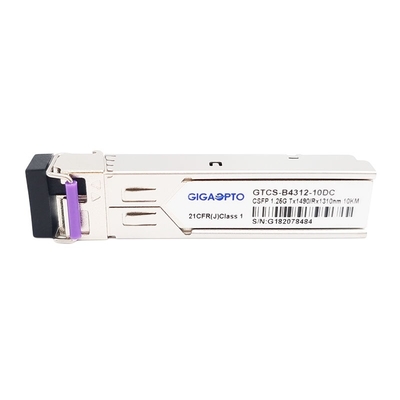

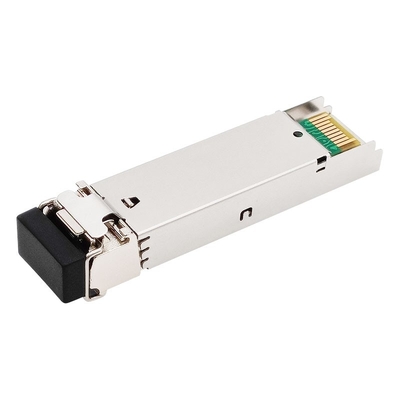

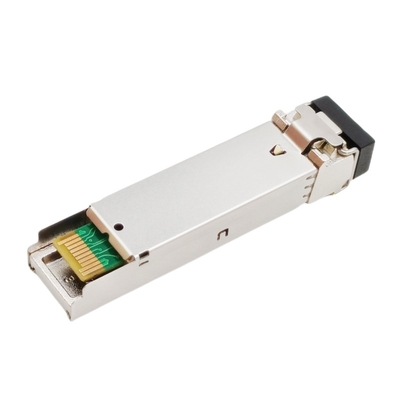

The GIGAOPTO's GTCS-B4312-10DC transceiver is a high performance, cost effective module supporting 1.25Gbps and 10km transmission distance with single-mode fiber (SMF). The transceiver consists of 2-channel Bi-directional Optical Transceiver unit with five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector.
The 2-Channel 1000BASE-BX BiDi CSFP transceiver operates at the normal wavelength of TX1310nm/RX1490nm, 2 channel, and is designed to meet Gigabit Ethernet and 1X Fiber channel application. All modules satisfy class I laser safety requirements. It fully complies with the Compact Small Form-Factor Pluggable (CSFP) Multi-Source Agreement (MSA).
Specification
| Compatible Brand | CISCO | Compatible Part Number | GLC-2BX-D |
| Form Factor | Compact SFP (CSFP) | Data Link | 1000Mbps |
| Optical Connector | Duplex LC | Max Cable Distance | 10km(6.2 miles) |
| DDM/DOM | Supported | Fiber Mode | SMF |
| Total System Budget | >14dB | Environment |
Commercial 0 to 70°C (32 to 158°F) |
| Centre Wavelength | 1490nm-TX/1310nm-RX | Supply Voltage | 3.3V |
| Max Power Consumption | 1.5W | Power Supply Current | 300mA |
| Transmitter Type | DFB BiDi | PD Type | PIN |
| Launched Power | -9.5~-3dBm | Sensitivity | < -22dBm |
| Extinction Ratio | >8.2dB | Saturation | >-3dBm |
| Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | ||
Features
Standard: 0°C~70°C (32 to 158°F)
Industrial: -40°C~85°C (-40 to 185°F)
Application
Ordering Information
| P/N | Package | Speed | Wavelength | Reach | Laser Type | Interface |
| GTS-B3412-10DC | 1000BASE-BX-U BiDi SFP | 1250Mbps | Tx1310nm/Rx1490nm | 10km | FP | Single LC |
| GTS-B4312-10DC | 1000BASE-BX-D BiDi SFP | 1250Mbps | Tx1490nm/Rx1310nm | 10km | DFB | Single LC |
| GTS-B3512-10DC | 1000BASE-BX BiDi SFP | 1250Mbps | Tx1310nm/Rx1550nm | 10km | FP | Single LC |
| GTS-B5312-10DC | 1000BASE-BX BiDi SFP | 1250Mbps | Tx1550nm/Rx1310nm | 10km | DFB | Single LC |
| GTCS-B3412-10DC | 2-Channel BiDi CSFP 1000BASE-BX | 1250Mbps | Tx1310nm/Rx1490nm | 10km | FP | Dual LC |
| GTCS-B4312-10DC | 2-Channel 1000BASE-BX-D BiDi CSFP | 1250Mbps | Tx1490nm/Rx1310nm | 10km | FP | Dual LC |
