10G EPON SFP Module ONU SFP+ Symmetric PR30 TX1270nm 10.3G RX1577nm 10.3G SC UPC Transceiver Module

10GEPON ONU Symmetrical PR30 SFP+ SC/UPC Receptacle Burst TX1270nm 10.3125G RX1577nm 10.3125G 20km Transceiver Module

Description

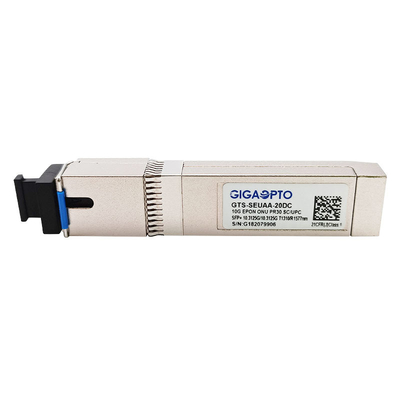

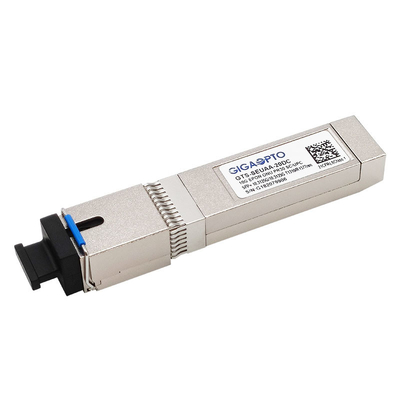

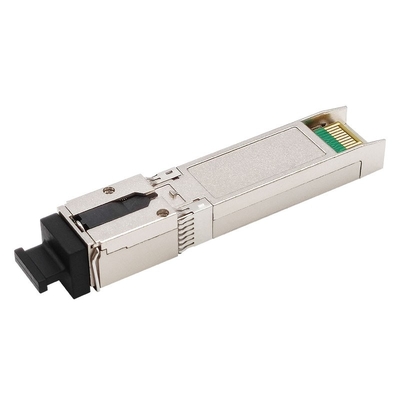

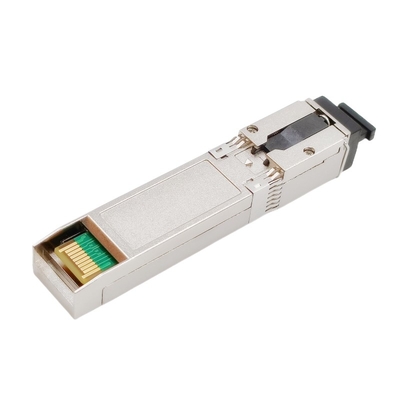

The GIGAOPTO's GTS-SEUAA-20DC is a high performance module for single fiber communications by using 1270nm burst-mode transmitter and 1577nm continuous-mode receiver. The 10G EPON ONU transceiver is supplied in SFP+ package with SC/UPC receptacle connector, designed for the optical network unit (ONU) of 10GEPON with 10.3125Gbps in downstream and 10.3125Gbps in upstream.

The transmitter section uses a DFB 1270nm laser and is a class 1 laser compliant according to International Safety Standard IEC-60825-1. The receiver section uses an integrated 1577nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. CML interface is used for differential inputs and outputs.

Specification

Features

• IEEE802.3av Gigabit Ethernet compliant
• Single fiber bi-directional data links symmetric TX 10.3125Gbps, Burst Mode RX 10.3125Gpbs application
• SFP+ package with SC/UPC receptacle
• 1270nm DFB LD and high sensitivity 1577nm APD
• Hot-pluggable capability
• Support 20km transmission distance with SMF
• CML compatible data input/output interface
• Low power dissipation
• Low EMI and excellent ESD protection
• Digital diagnostic monitor interface
• Case operating temperature: Commercial: -5°C~70°; Industrial: -40°C~85°C
• RoHS6 compliant and lead-free​

Application

• Symmetric 10GEPON PR30 ONU with 15~29dB attenuation range

Standards

• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with IEEE Std 802.3avTM-2009
• Complies with FCC 47 CFR Part 15, Class B
• Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
• Complies with SFF-8472
• Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.
• Compatible with Telcordia GR-468-CORE

Ordering Information

Compatibility

Gigaopto's optical transceivers are 100% compatible with many famous switch brands and will not cause damage to OEM devices. In order to ensure the quality and compatibility of our products, each product is carefully tested on the corresponding equipment before delivery to customers.
For this (10GEPON ONU PR30 SFP+ Symm (10G)T1270nm /(10G)R1577nm) compatibility, please refer to the P/N correspondence table. If the brand and part number you are looking for is not listed below, please let us know and we will be delighted to provide you with more details.
