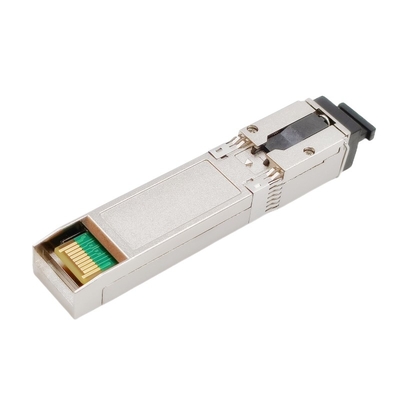

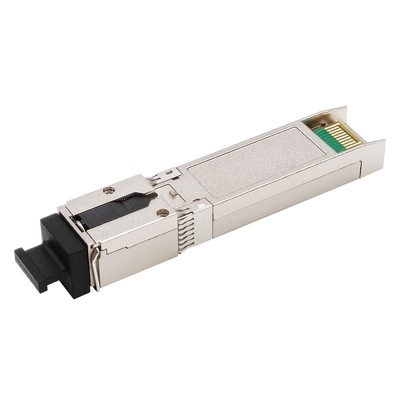

DFB 10G ONU EPON SFP Module Asymmetric PRX30 SFP+ 20km SFP Module

10GEPON ONU Asymmetrical PRX30 SFP+ SC/UPC Receptacle Burst TX1310nm 1.25G RX1577nm 10.3125G 20km Transceiver Module

Description

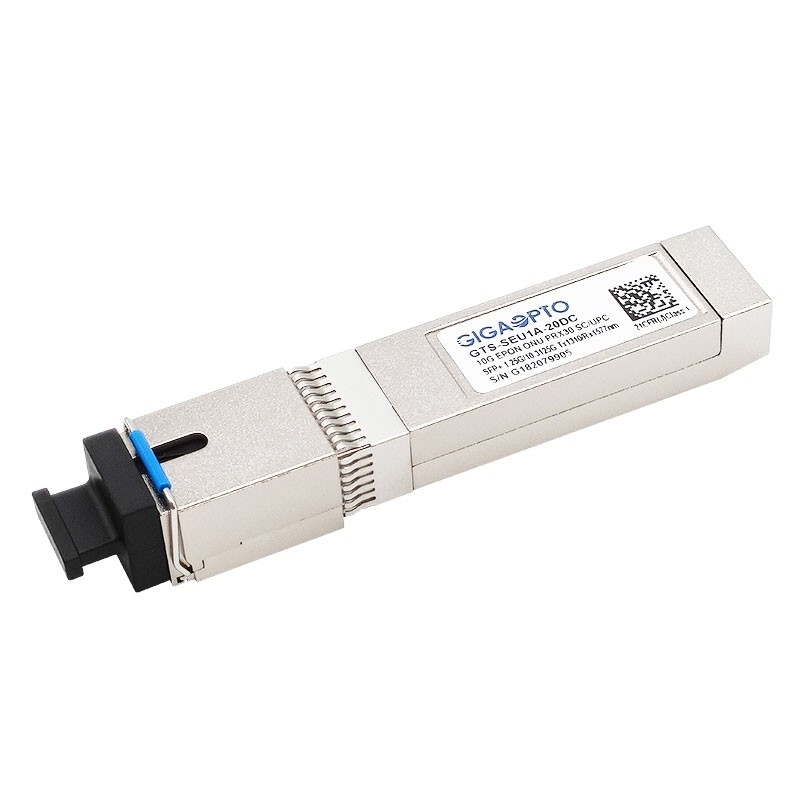

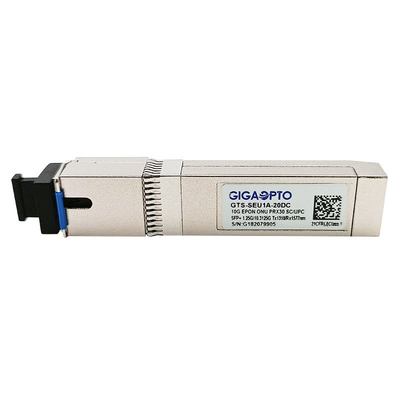

The GIGAOPTO's GTS-SEU1A-20DC is a high performance and cost-effective 10G EPON ONU transceiver module designed for Gigabit Ethernet Passive Optical Network (GEPON) transmission. The transceiver is supplied in SFP+ package with SC/UPC receptacle connector. This EPON ONU transceiver module consists of 1310nm DFB laser, 1577nm APD photodiode WDM filter and Preamplifier in a high-integrated optical sub-assembly for 1.25G upstream and 10G downstream EPON applications. Its maximum range reaches 20km via a single mode fiber with 3.3V power supply. This module is Class 1 laser product that complies with IEC 60825-1 and IEC 60825-2 standards, and it is ROHS6 compliant.

Specification

Features

• Single fiber bi-directional data links
• 1310nm DFB laser transmitter and 1577nm APD receiver
• 1.25Gbps burst mode transmission
• 10.3125Gbps continuous mode receiver data rate
• SFP+ package with SC/UPC receptacle connector
• Single 3.3V power supply
• 2-wire interface for integrated Digital Diagnostic monitoring
• CML compatible data input/output interface
• Provide TX burst mode signal detect function
• LVTTL transmitter laser fault alarm
• Low EMI and excellent ESD protection
• International Class1 laser safety certified
• Operating temperature range: Commercial: -5°C~70°C; Industrial: -40°C~85°C
• RoHS6 Compliance​

Application

• Asymmetrical 10G Ethernet Passive Optical Network

Standards

• Complies with SFP+ MSA (SFF-8431)
• Complies with IEEE Std 802.3avTM-2009
• Complies with IEEE Std 802.3ahTM-2004
• Complies with FCC 47 CFR Part 15, Class B
• Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
• Complies with SFF-8472 Rev 10.2

Ordering Information

Compatibility

All Gigaopto transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.
For this (10GEPON ONU PRX30 SFP+ Asym (1G)T1310nm/(10G)R1577nm), please refer to the P/N correspondence table. For more product compatibility, please feel free to send us a message.
