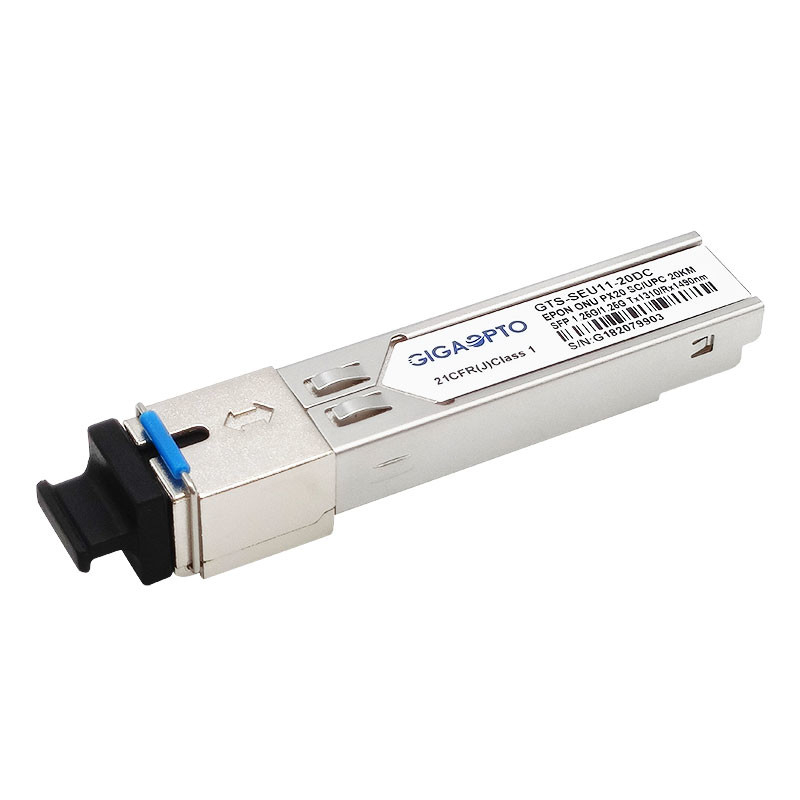

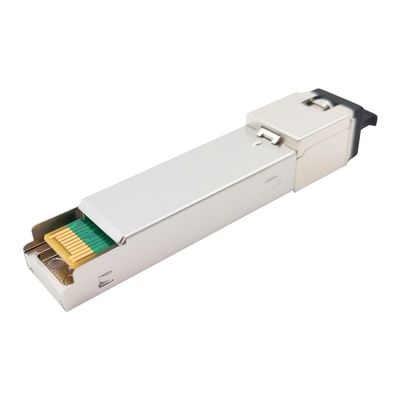

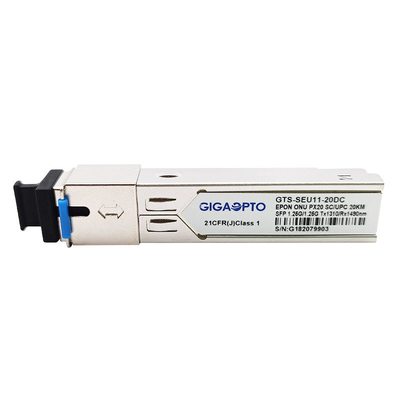

1.25G ONU EPON SFP Module PX20 TX1310nm/RX1490nm 20km SC SFP UPC

1.25G ONU EPON SFP Module PX20 TX1310nm/RX1490nm 20km SC SFP UPC
1.25G ONU EPON SFP Module PX20 TX1310nm/RX1490nm 20km SC SFP UPC 1.25G ONU EPON SFP Module PX20 TX1310nm/RX1490nm 20km SC SFP UPC 1.25G ONU EPON SFP Module PX20 TX1310nm/RX1490nm 20km SC SFP UPC 1.25G ONU EPON SFP Module PX20 TX1310nm/RX1490nm 20km SC SFP UPC

Large Image :  1.25G ONU EPON SFP Module PX20 TX1310nm/RX1490nm 20km SC SFP UPC

Product Details:
Place of Origin: Shenzhen, China
Brand Name: GIGAOPTO
Certification: CE, FCC, ROHS, REACH, CP65, TUV, UL, ISO9001, ISO14000, MSDS
Model Number: GTS-SEU11-20DC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 50,000pcs / month

1.25G ONU EPON SFP Module PX20 TX1310nm/RX1490nm 20km SC SFP UPC

Description
Product Name: EPON ONU SFP Form Factor: SFP
Data Rate: Tx1.25G/Rx1.25G Centre Wavelength: TX1310nm/RX1490nm
Connector Type: SC/UPC LD Type: DFB
ODN Class: PX20 Max Transmission Distance: 20km
Keywords: SFP 1.25G EPON ONU, PX20 Transceiver, EPON SFP ONU SC/UPC
High Light:

1.25G EPON SFP Module

,

TX1310nm EPON SFP Module

,

SFP UPC

GEPON ONU SFP 1.25G SC/UPC PX20 Burst TX1310nm/RX1490nm 20km Transceiver Module





Description



The GIGAOPTO's GTS-SEU11-20DC single mode transceiver is small form factor pluggable module designed for Gigabit Ethernet Passive Optical Network (EPON) 20km transmission. It is Optical Network Unit (ONU) for IEEE Std 802.3ahTM -2004 1000BASE-PX20 application.



The module incorporates 1310nm burst-mode transmitter and 1490nm continuous-mode receiver. The transmitter section uses a 1310nm DFB laser, and the receiver section uses an integrated 1490nm InGaAs Pin photodiode and preamplifier mounted together. It has the function that indicates receiver signal-detected status.





Specification



Product Packaging EPON SFP ONU Speed 1250Mbps/1250Mbps
Types of Interface SC/UPC Link Length 20km
Digital Diagnostic Monitoring YES Fiber Mode

SMF



Warranty 3 years Environment Commercial -5 to 70°C
Center Wavelength TX1310nm/RX1490nm Power Supply Voltage 3.3V
Power Consumption <1W Icc 300mA
Optical Components DFB PD Type PIN
Transmitter Output Power 0 to 4dBm Sensitivity <-27dBm
Extinction Ratio >9dB Saturation >-3dBm
Protocols IEEE 802.3ah-2004, Telcordia GR-468-CORE





Features



  • Single fiber bi-directional data links
  • 1310nm DFB laser transmitter and 1490nm PIN receiver
  • 1.25Gbps burst mode transmission
  • 1.25Gbps continuous mode receiver data rate
  • SFP package with SC/UPC Receptacle Connector
  • Single 3.3V power supply
  • Digital diagnostic monitoring interface
  • LVPECL compatible data input/output interface
  • Provide TX burst mode signal detect function
  • LVTTL transmitter laser fault alarm
  • Low EMI and excellent ESD protection
  • Class I laser safety standard IEC-60825 compliant
  • Operating temperature range: Commercial: -5°C~70°C; Industrial: -40°C~85°C
  • RoHS6 Compliance





Application



  • Gigabit Ethernet Passive Optical Networks (GEPON)
  • Access Networks
  • FTTX





Standards



  • Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
  • Complies with IEEE 802.3ah-2004
  • Complies with FCC 47 CFR Part 15, Class B
  • Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
  • Complies with SFF-8472
  • Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class 2.
  • Compatible with Telcordia GR-468-CORE





Ordering Information



Part Number Description Data Rate (Gb/s) Wavelength(nm) Class Interface Temp.
GTF-SEU11-20DC

EPON ONU

SFF 2x10

T1.25/R1.25 Tx1310/Rx1490 PX20 SC/UPC Receptacle -5~70°C
GTF-SEU11-20DI

EPON ONU

SFF 2x10

T1.25/R1.25 Tx1310/Rx1490 PX20 SC/UPC Receptacle -40~85°C
GTF-UEU11-20DC

EPON ONU

SFF 2x10

T1.25/R1.25 Tx1310/Rx1490 PX20 SC/UPC Pigtail -5~70°C;
GTF-UEU11-20DI

EPON ONU

SFF 2x10

T1.25/R1.25 Tx1310/Rx1490 PX20 SC/UPC Pigtail -40~85°C
GTF-AEU11-20DC

EPON ONU

SFF 2x10

T1.25/R1.25 Tx1310/Rx1490 PX20 SC/APC Pigtail -5~70°C;
GTF-AEU11-20DI

EPON ONU

SFF 2x10

T1.25/R1.25 Tx1310/Rx1490 PX20 SC/APC Pigtail -40~85°C
GTS-SEU11-20DC EPON ONU SFP T1.25/R1.25 Tx1310/Rx1490 PX20 SC/UPC Receptacle -5~70°C
GTS-SEU11-20DI EPON ONU SFP T1.25/R1.25 Tx1310/Rx1490 PX20 SC/UPC Receptacle -40~85°C
GTS-BEU11-20DC EPON ONU SFP T1.25/R1.25 Tx1310/Rx1490 PX20 LC/APC Receptacle -5~70°C
GTS-BEU11-20DI EPON ONU SFP T1.25/R1.25 Tx1310/Rx1490 PX20 LC/APC Receptacle -40~85°C





Compatibility



Gigaopto manufactures and stocks a full range of optical transceivers up to 100G. All of our optical transceiver modules are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, Huawei, Alcatel-Lucent, Extreme, Arista, etc. and offer 3-year warranty.
For this (EPON ONU SFP SC/UPC PX20 TX1310nm/RX1490nm), please refer to the P/N correspondence table. If you need more compatibility, please don’t hesitate to let us know.



Compatible Brand Compatible Part Number Compatible Brand Compatible Part Number
GIGAOPTO GTS-SEU11-20DC WTD RTXM169-531





Pin Definition



1.25G ONU EPON SFP Module PX20 TX1310nm/RX1490nm 20km SC SFP UPC 0





Typical Application Circuit





1.25G ONU EPON SFP Module PX20 TX1310nm/RX1490nm 20km SC SFP UPC 1





Package Outline

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)



1.25G ONU EPON SFP Module PX20 TX1310nm/RX1490nm 20km SC SFP UPC 2
