9dBm EPON SFP Module PX20+++ OLT 1.25G PX40 TX1490nm RX1310nm 20km Transceiver Module

9dBm EPON SFP Module  PX20+++ OLT 1.25G PX40 TX1490nm RX1310nm 20km Transceiver Module
9dBm EPON SFP Module  PX20+++ OLT 1.25G PX40 TX1490nm RX1310nm 20km Transceiver Module
9dBm EPON SFP Module  PX20+++ OLT 1.25G PX40 TX1490nm RX1310nm 20km Transceiver Module 9dBm EPON SFP Module  PX20+++ OLT 1.25G PX40 TX1490nm RX1310nm 20km Transceiver Module 9dBm EPON SFP Module  PX20+++ OLT 1.25G PX40 TX1490nm RX1310nm 20km Transceiver Module 9dBm EPON SFP Module  PX20+++ OLT 1.25G PX40 TX1490nm RX1310nm 20km Transceiver Module 9dBm EPON SFP Module  PX20+++ OLT 1.25G PX40 TX1490nm RX1310nm 20km Transceiver Module

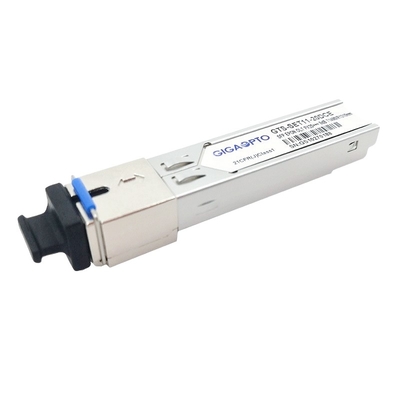

Large Image :  9dBm EPON SFP Module PX20+++ OLT 1.25G PX40 TX1490nm RX1310nm 20km Transceiver Module

Product Details:
Place of Origin: Shenzhen, China
Brand Name: GIGAOPTO
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-SET11-20DCE
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 50kpcs per month

9dBm EPON SFP Module PX20+++ OLT 1.25G PX40 TX1490nm RX1310nm 20km Transceiver Module

Description
Product Name: EPON OLT SFP Product Packaging: SFP
Speed: 1.25Gbps/1.25Gbps Wavelength: 1490nm-TX/1310nm-RX
Max Cable Distance: 20km Receiver Sensitivity: <-33dBm
ODN Class: PX20+++ Average Output Power: +7 To +10dBm
Keywords: SFP 1.25G EPON OLT, PX20+++ Optical Transceiver, SFP OLT 9dBm Module
Highlight:

9dBm EPON SFP Module

,

RX1310nm EPON SFP Module

,

SFP EPON Px20+++

GEPON OLT SFP Optical Transceiver Modules PX20+++ 9dBm PX40 1.25Gbps 1490nm-TX/1310nm-RX
20km SC SMF DDM





Description



The GIGAOPTO's GTS-SET11-20DCE is an SFP packaged hot-swappable optical module with single SC/UPC receptacle connector used to connect optical data communication links. It can fully support the EPON OLT application specified by the IEEE802.3ah 1000Base-PX20 specifications. This EPON OLT transceiver module consists of 1490nm continuous-mode 1.25Gb/s DFB transmitter, 1310nm burst-mode 1.25Gb/s APD receiver, preamplifier and WDM filter in a high-integrated optical sub-assembly.



This GEPON SFP module is a class 1 laser compliant according to International Safety Standard IEC-60825.





Specification



Form Type EPON OLT SFP Max Data Rate 1250Mbps/1250Mbps
Optical Receptacle Type SC/UPC Reach 20km
DDM/DOM Supported Cable Type Single Mode Fiber
Warranty 3 years Environment -5 to 70°C
Center Wavelength TX1490nm/RX1310nm Supply Voltage 3.3V
Max Power Consumption <1.65W Current 500mA
Types of Laser DFB Receiver Type Burst APD
Launched Power +7 to +10dBm Sensitivity <-33dBm
ER >9dB RX Overload >-6dBm
Protocols MSA, IEEE-802.3ah, RoHS6 Compliant





Features



  • SFP with SC/UPC receptacle transceiver
  • Single fiber bi-directional data links with 1.25Gbps upstream/1.25Gbps downstream
  • 1490nm DFB Tx
  • 1310nm APD Rx
  • Transmission distance up to 20km
  • Single 3.3V power supply
  • 2-wire interface for integrated digital diagnostic Monitoring
  • Provide fast RSSI function
  • LVPECL compatible data input/output interface
  • Burst mode received signal strength indication output
  • LVTTL transmitter disable control
  • LVTTL transmitter laser fault alarm
  • Low EMI and excellent ESD protection
  • International Class 1 laser safety certified
  • Ambient operating temperature: Commercial: -5°C~70°C; Industrial: -40°C~85°C
  • Comply with MSA SFP specification SFF-8472





Application



  • Gigabit Ethernet Passive Optical Networks (GEPON)
  • Fiber to the Home, Curb, Office (FTTx)





Standards



  • Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
  • Complies with IEEE 802.3ah
  • Complies with FCC 47 CFR Part 15, Class B
  • Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
  • Complies with SFF-8472
  • Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.
  • Compatible with Telcordia GR-468-CORE





Ordering Information



P/N Package Data Rate (Gb/s) Wavelength(nm) Class Conn. Tx/Rx Type Temp.
GTS-SET11-20DCB EPON OLT SFP Tx1.25/Rx1.25 T1490/R1310 PX20+ SC DFB/APD -5~70°C
GTS-SET11-20DIB EPON OLT SFP Tx1.25/Rx1.25 T1490/R1310 PX20+ SC DFB/APD -40~85°C
GTS-SET11-20DCC EPON OLT SFP Tx1.25/Rx1.25 T1490/R1310 PX20++ SC DFB/APD -5~70°C
GTS-SET11-20DIC EPON OLT SFP Tx1.25/Rx1.25 T1490/R1310 PX20++ SC DFB/APD -40~85°C
GTS-SET11-20DCD EPON OLT SFP Tx1.25/Rx1.25 T1490/R1310

PX20+++

7dBm

SC DFB/APD -5~70°C
GTS-SET11-20DID EPON OLT SFP Tx1.25/Rx1.25 T1490/R1310

PX20+++

7dBm

SC DFB/APD -40~85°C
GTS-SET11-20DCE EPON OLT SFP Tx1.25/Rx1.25 T1490/R1310 PX20+++ 9dBm SC DFB/APD -5~70°C
GTS-SET11-20DIE EPON OLT SFP Tx1.25/Rx1.25 T1490/R1310 PX20+++ 9dBm SC DFB/APD -40~85°C
