OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module

OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module
OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module
OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module

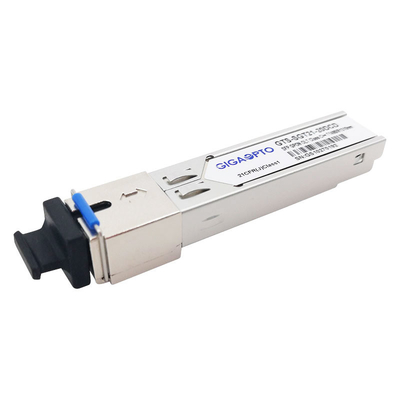

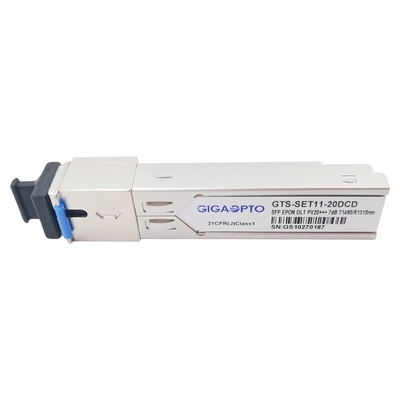

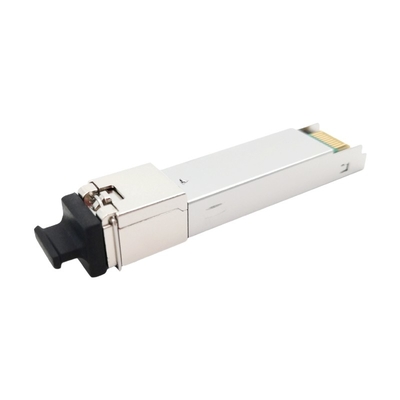

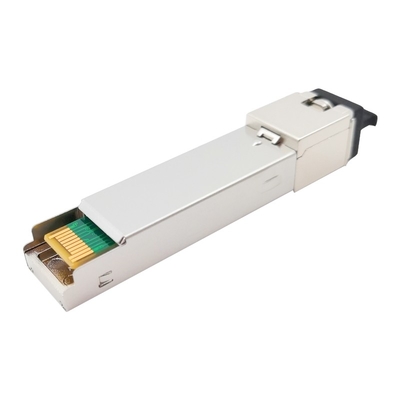

Large Image :  OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module

Product Details:
Place of Origin: Shenzhen, China
Brand Name: GIGAOPTO
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GTS-SET11-20DCD
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 50,000pcs / month
Contact Now

OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module

Description
Product Name: EPON OLT SFP Form Factor: SFP
Data Rate: 1.25Gb/s Wavelength: TX1490nm/RX1310nm
Max Distance: 20km Connector: SC/UPC
Transmitter Type: DFB Receiver Type: Burst APD
Keywords: SFP EPON OLT PX20+++, GEPON SFP OLT 7dBm Optical Module
High Light:

SFP 20km

,

PX40 Transceiver Module

,

gepon sfp PX20+++ 20km 7dBm

GEPON OLT PX20+++ PX40 +7dBm Optical Transceiver SFP 1.25G TX1490nm/RX1310nm 20km SC SMF DDM





Description



The GIGAOPTO's GTS-SET11-20DCD is a high performance transceiver module for single fiber communications using a 1490nm continuous-mode transmitter and a 1310nm burst-mode receiver. It is designed to meet IEEE802.3ah-2004 1000BASE-PX20 requirements and target for optical line terminal (OLT) applications.

The module provides digital diagnostic information of its operating conditions and status, including transmitting power, laser bias current, module temperature, and supply voltage. Calibration and alarm/warning threshold data are written and stored in the internal memory (EEPROM). The memory map is compatible with SFF-8472.

Featuring low power consumption, the hot pluggable OLT SFP transceiver is perfect solution for Internet Service Provider (ISP) PON applications and other optical links.





Specification



Form Type EPON OLT SFP Data Rate (Gbps) 1.25Gbps
Optical Connector SC/UPC Distance 20km
DDM Supported Fiber Type Single Mode Fiber
Warranty 3 years Temperature -5 to 70°C
Center Wavelength TX1490nm/RX1310nm Power Supply Voltage 3.3V
Power Consumption <1.65W Supply Current 500mA
Laser Type DFB PD Type Burst APD
TX Power +7 to +10dBm RX Sensitivity <-33dBm
Extinction Ratio >9dB RX Saturation >-6dBm
Protocols IEEE 802.3ah, Telcordia GR-468-CORE, SFF-8472, SFF-8074i





Features



  • Single fiber bi-directional data links asymmetric TX1250Mbps/RX1250Mbps application
  • 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
  • Small Form Factor Pluggable package with SC/UPC connector
  • Single 3.3V power supply
  • DDMI function available with internally calibrated mode
  • Digital burst RSSI function to monitor the input optical power level
  • LVPECL compatible data input/output interface
  • LVTTL transmitter disable control
  • LVTTL transmitter laser fault alarm
  • Low EMI and excellent ESD protection
  • International Class 1 laser safety certified
  • Operating temperature range: Commercial: -5°C~70°C; Industrial: -40°C~85°C
  • RoHS6 Compliance​





Application



  • Gigabit Ethernet Passive Optical Networks (GEPON)
  • Other Optical Links





Standards



  • Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
  • Complies with IEEE 802.3ah
  • Complies with FCC 47 CFR Part 15, Class B
  • Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
  • Complies with SFF-8472
  • Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class 2.
  • Compatible with Telcordia GR-468-CORE





Ordering Information



Part Number Description Data Rate (Gbps) Wavelength (nm) Class Conn. Tx/Rx Type Temp.
GTS-SET11-20DCB EPON OLT SFP T1.25/R1.25 T1490/R1310 PX20+ SC DFB/APD C
GTS-SET11-20DIB EPON OLT SFP T1.25/R1.25 T1490/R1310 PX20+ SC DFB/APD I
GTS-SET11-20DCC EPON OLT SFP T1.25/R1.25 T1490/R1310 PX20++ SC DFB/APD C
GTS-SET11-20DIC EPON OLT SFP T1.25/R1.25 T1490/R1310 PX20++ SC DFB/APD I
GTS-SET11-20DCD EPON OLT SFP T1.25/R1.25 T1490/R1310

PX20+++

7dBm

 SC DFB/APD C
GTS-SET11-20DID EPON OLT SFP T1.25/R1.25 T1490/R1310

PX20+++

7dBm

 SC DFB/APD I
GTS-SET11-20DCE EPON OLT SFP T1.25/R1.25 T1490/R1310 PX20+++ 9dBm SC DFB/APD C
GTS-SET11-20DIE EPON OLT SFP T1.25/R1.25 T1490/R1310 PX20+++ 9dBm SC DFB/APD I





Compatibility


Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty. For this (EPON OLT PX20+++ 7dBm PX40 SFP 1.25G T1490/R1310), please refer to the P/N correspondence table. If you are interested in knowing more compatibility, you are always welcome to contact us.

Compatible Brand Compatible Part Number Compatible Brand Compatible Part Number
GIGAOPTO GTS-SET11-20DCC Broadex D44355-SSCD





Pin Definition



OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module 0





Typical Application Circuit



OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module 1





Package Outline
Dimensions are in millimeters. All dimensions are ±0.2mm unless otherwise specified. (Unit: mm)



OLT SFP EPON Px20+++ PX40 7dBm SFP 1.25G TX1490nm/RX1310nm 20km Transceiver Module 2
