Product Details:
|
| Form Factor: | SFP | Speed: | 1.25Gbps |
|---|---|---|---|
| Cable Distance: | 550m@MMF/10km@SMF | Centre Wavelength: | 1310nm |
| Fibre Type: | SMF/MMF | Power Budget: | 13.5dB |
| Ambient Temperature: | Industrial -40 To 85°C | ||
| High Light: | 1.25G SFP 1310nm 550m IND Fiber Optic Module, 1000BASE-LX/LH Industrial SFP Optical Module | ||

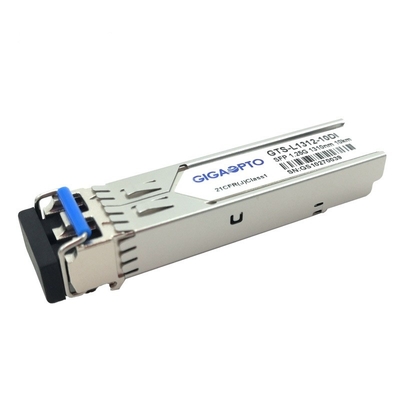

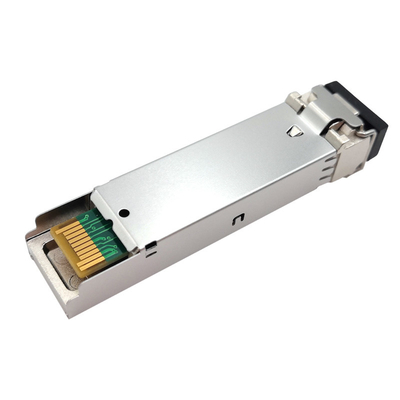

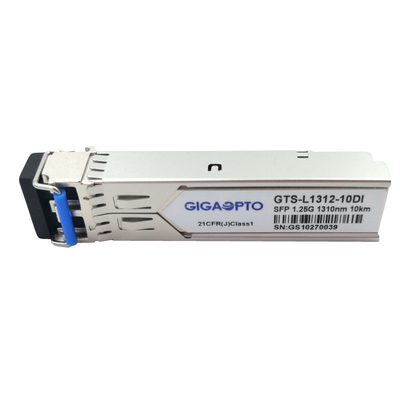

Cisco Compatible 1000BASE-LX/LH SFP Transceiver Module (550M@MMF / 10km@SMF 1310nm LC Industrial DOM)
Description
The GIGAOPTO's GTS-L1312-10DI transceiver is a high performance, cost-effective module supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF and 550m with MMF using a wavelength of 1310nm via an LC connector. The industrial SFP transceiver module provides a reliable rugged connectivity solution over fiber for system integrator, distributors and ends users in industrial network infrastructure and fiber cabling.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
This 1.25G SFP transceiver module fully complies with the SFP Multi-Source Agreement (MSA) and can be used on MSA compliant SFP ports of optical networking equipment.
Specification
| Compatible Brand | CISCO | Compatible PN | GLC-LX-SM-RGD |
| Form Type | SFP | Data Link | 1.25Gb/s |
| Optical Receptacle Type | LC Duplex | Transmission Distance | 550m@MMF/10km@SMF |
| Digital Diagnostic Monitoring | YES | Media | SMF/MMF |
| Power Budget | 13.5dB | Operating Case Temperature |
Industrial -40 to 85°C (-40 to 185°F) |
| Wavelength | 1310nm | Supply Voltage | 3.30V |
| Power Consumption | <1W | Supply Current | <300mA |
| Optical Components | FP 1310nm | Receiver Type | PIN |
| Average Output Power | -9.0 ~ -3dBm | Sensitivity | < -21dBm |
| ER | >8.2dB | Saturation Power | >-3dBm |
| Protocols | IEEE 802.3z, SFF-8472, FC-PI, SFP MSA (INF-8074i) Compliant | ||
Features
Application
Ordering Information
| Part Number | Description | Data Rate | Wavelength | Distance | Connector | Temp. |
| GTS-T0012-10I-A | 1000BASE-T SFP Copper | 1.25G | / | 100m | RJ-45 | -40~85℃ |
| GTS-L0812-02DI | 1000BASE-SX SFP | 1.25G | 850nm | 550m@OM2 | Duplex LC | -40~85℃ |
| GTS-L1312-10DI | 1000BASE-LX SFP | 1.25G | 1310nm | 10km | Duplex LC | -40~85℃ |
| GTS-L1312-40DI | 1000BASE-EX40 SFP | 1.25G | 1310nm | 40km | Duplex LC | -40~85℃ |
| GTS-L1512-80DI | 1000BASE-ZX SFP | 1.25G | 1550nm | 80km | Duplex LC | -40~85℃ |
Compatibility
All of Gigaopto's optical modules are open-source and can be coded to be fully compatible with many highly popular optical devices. For this product (1000BASE-LX/LH SFP 1310nm 10km Industrial) please refer to the following compatibility table. If you would like more information about compatibility, please feel free to contact us.
| Compatible Brand | Compatible Part Number | Compatible Brand | Compatible Part Number |
| GIGAOPTO | GTS-L1312-10DI | CISCO | SFP-GE-L-I |
| CISCO | GLC-LX-SM-RGD |
