SFP 1.25G 1000BASE-EZX 1550nm 120km SMF Optical Transceiver Duplex LC DOM Module

Cisco Compatible 1550nm 120km 1000BASE-EZX SMF DOM Duplex LC SFP Transceiver Module

Description

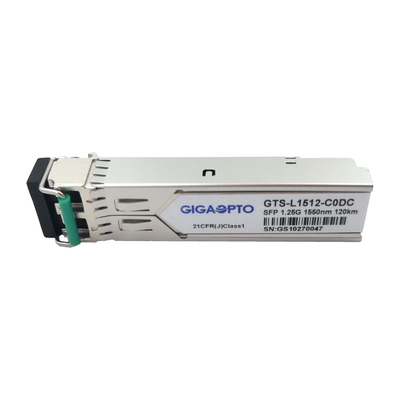

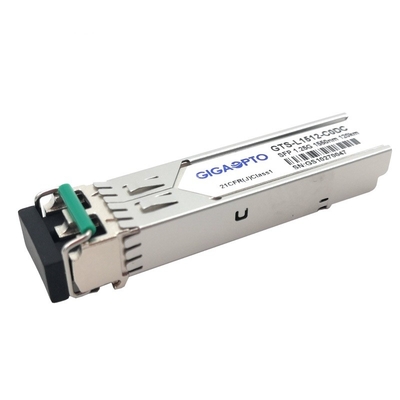

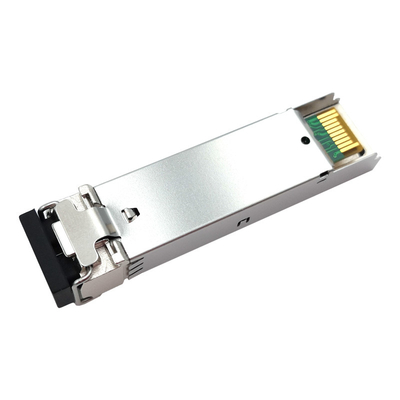

The GIGAOPTO's GTS-L1512-C0DC transceiver is a high performance, cost effective module supporting data rate of 1.25Gbps and 120km transmission distance with LC duplex single-mode fiber (SMF). The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. This module is built to operate at a nominal wavelength of 1550nm for serial optical data communications such as Gigabit Ethernet 1000BASE-ZX and Fiber Channel 1x SM-LC-L FC-PI. All modules meet international class I laser safety standards.

Specification

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator

according to the table.

Features

• Up to 1.25Gbps bit rate
• Duplex LC connector interface
• 1550nm DFB laser and APD photodetector
• 120km with 9/125 µm SMF
• Hot-pluggable SFP footprint
• Temperature range:

Com.: 0°C~70°C

Ind.: -40°C~85°C

• RoHS Compliant
• Compliant with SFP MSA and SFF-8472

Application

• 1.25Gbps Optical systems
• Gigabit Ethernet
• 1.063Gbps Fiber Channel

Compatibility

All Gigaopto transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.
For this (1000BASE-EZX SFP 1550nm 120km), please refer to the P/N correspondence table. For more product compatibility, please feel free to send us a message.

Ordering Information
