Product Details:
|
Fiber Type: | Single-mode | Connector: | SC UPC |
---|---|---|---|
Receiver Sensitivity: | -32dBm | Interface Type: | GPON |
Storage Temperature: | -40-85C | Application: | FTTH / FTTP / FTTA |
Distance: | 20Km | Operating Temperature: | 0~70℃ |
High Light: | SC UPC GPON SFP Transceiver,2.488Gbps GPON SFP Transceiver,GPON 1.244Gbps SFP Transceiver |

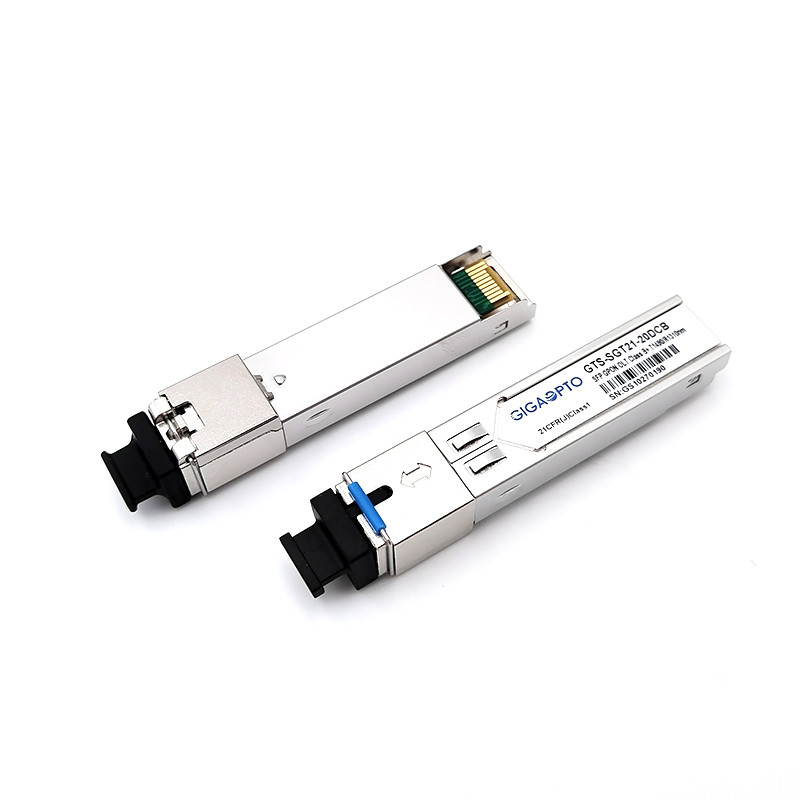

This GPON SFP transceiver is designed for FTTH/FTTP/FTTA applications. It is an SFP module transceiver for GPON OLT C++ and GPON B+ with SC UPC connector. It supports transmission rates of 2.488Gbps and 1.244Gbps, and the receiving sensitivity is -32dBm.
This SFP GPON transceiver combines high performance and reliability to support a wide range of protocols and applications. It is also RoHS compliant and comes with a 3-year warranty.
Product Name | Parameters |
---|---|
GPON SFP Transceiver | Wavelength: 1490nm/1310nm |
Connector: SC UPC | |
Distance: 20Km | |
Storage Temperature: -40-85C | |
Humidity: 5%~95% | |
Receiver Sensitivity: -32dBm | |
Interface Type: GPON | |
Optical Components: FP/DFB/DML | |
Fiber Type: Single-mode | |
Keywords: SFP Optical Transceivers, GPON OLT C+, SFP Transceiver Modules |
The universal GTS-SGT21-20DCD GPON SFP transceiver is a high-performance and cost-effective module designed for fiber-based Gigabit Passive Optical Networks (GPON) OLT-Class C++. It complies with the ITU-T G.984.x GPON standard and provides 2.488Gbps downstream and 1.244Gbps upstream transmission rates. It has SC UPC connector, low power consumption, high receiving sensitivity of -32dBm, and wide operating temperature range of 0~70℃. The transceiver is CE, FCC, RoHs, TUV and UL certified, and the MOQ is 1 piece, 10 pieces/pallet, 400 pieces/carton packaging. Delivery time is 3-7 days, payment method can be T/T or L/C. Universal GTS-SGT21-20DCD GPON SFP transceiver monthly supply capacity is 100,000 pieces at negotiated price.
Are you looking for a reliable GPON SFP Transceiver partner who can offer you customized services? Look no further! We offer a wide range of GPON SFP Transceiver Module custom services, ranging from SFP Module Transceiver to GPON OLT C++.
With our GPON SFP Transceiver Module, you can be sure that your network is secure, reliable and up-to-date. Contact us today and let us customize a solution that meets your needs!
