20KM OLT GPON SFP Transceiver Class C++ 1490nm TX 1310nm RX SC UPC DDM

GPON OLT C++ Transceiver 6dBm 20km SMF SC/UPC DDM

Description

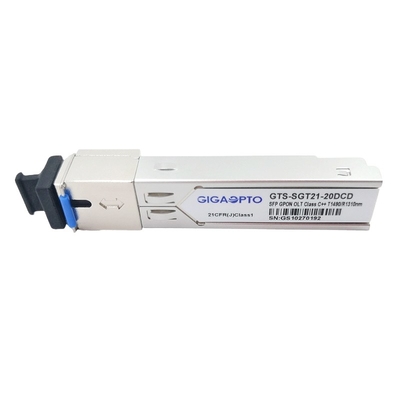

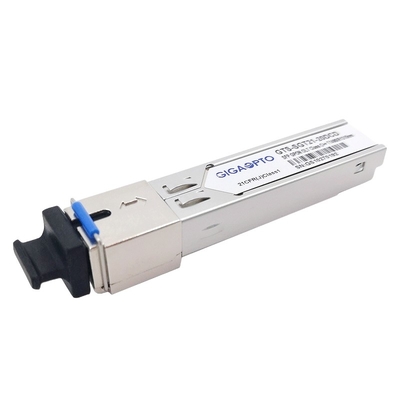

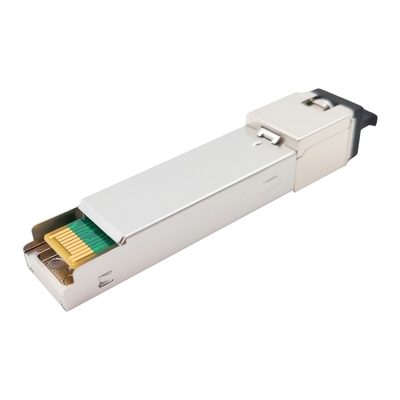

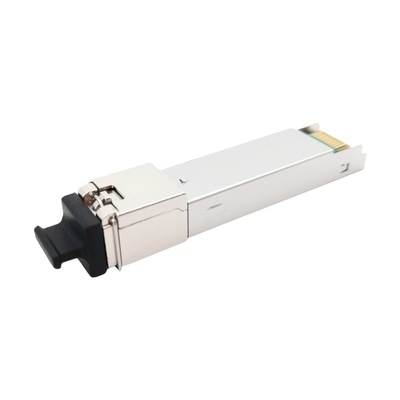

The GIGAOPTO's GTS-SGT21-20DCD is a high performance transceiver module for single fiber communications using a 1490nm continuous-mode transmitter and a 1310nm burst-mode receiver. It is designed to meet ITU G.984.2 Class C++ requirements for optical line terminal (OLT) applications.

The 1490nm DFB LD transmitter has automatic power control (APC) function and temperature compensation circuitry to ensure stable optical power and extinction ratio over all operating temperature range. The transmitter meets Class 1 eye safety per IEC60825 and CDRH standards.

The receiver has a hermetically packaged APD-TIA (trans-impedance amplifier) pre-amplifier and a limiting amplifier with LVPECL compatible differential outputs. It features a Burst Packet Detect (SD) output which is LVTTL compatible. The SD output will come high after receiving the burst packet.The module provides digital diagnostic information of its operating conditions and status, including transmitting power, laser bias current, module temperature, and supply voltage. Calibration and alarm/warning threshold data are written and stored in the internal memory (EEPROM).This OLT SFP transceiver module has done sampling test under most famous brands of routers, switches, servers.

The hot swappable GPON SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Passive Optical Network (GPON) communication links, other optical links.

Specification

Features

• Single fiber bi-directional data links asymmetric TX 2488Mbps/RX1244Mbps application
• 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
• Small Form Factor Pluggable package with SC/UPC Connector
• Operating case temperature Range:Commercial: 0°C~70°C, Industrial: -40°C~85°C
• Single 3.3V power supply
• Digital diagnostic monitoring interface
• Digital burst RSSI function to monitor the input optical power level
• LVPECL compatible data input/output interface
• LVTTL transmitter disable control
• LVTTL transmitter laser fault alarm
• Fast LVTTL receiver Signal Detect (SD) indication response
• Low EMI and excellent ESD protection
• Class I laser safety standard IEC-60825 compliant
• RoHS6 Compliance

Application

• Gigabit-capable Passive Optical Networks (GPON)

Standards

• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with ITU-T G.984.2 Amendment 1
• Complies with FCC 47 CFR Part 15, Class B
• Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
• Complies with SFF-8472
• Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.
• Compatible with Telcordia GR-468-CORE

Ordering information - Gigaopto’s GPON OLT SFP Series(DFB+APD SC Simplex)

Compatibility

As a global provider of Brand Compatible Networking products, we have made significant investments over the past few years to support our customers, as well as in our physical infrastructure and test equipment platforms. Our overall trusted engineering and testing capabilities allow us to produce a large selection of Brand Compatible Transceivers. This GTS-SGT21-20DCD SFP optical transceiver modules is 100% compatible with worldwide popular brands' devices, e.g. HUAWEI MA5603T, HUAWEI MA5608T, HUAWEI MA5680T, HUAWEI MA5800T, ZTE ZXA10 C300, ZTE ZXA10 C320, ZTE C600, Alcatel-Lucent 7360, Nokia 7360, C-DATA, VSOL, BDCOM. please refer to the P/N correspondence table. If the brand and part number you are looking for is not listed below, please let us know and we will be delighted to provide you with more details.
