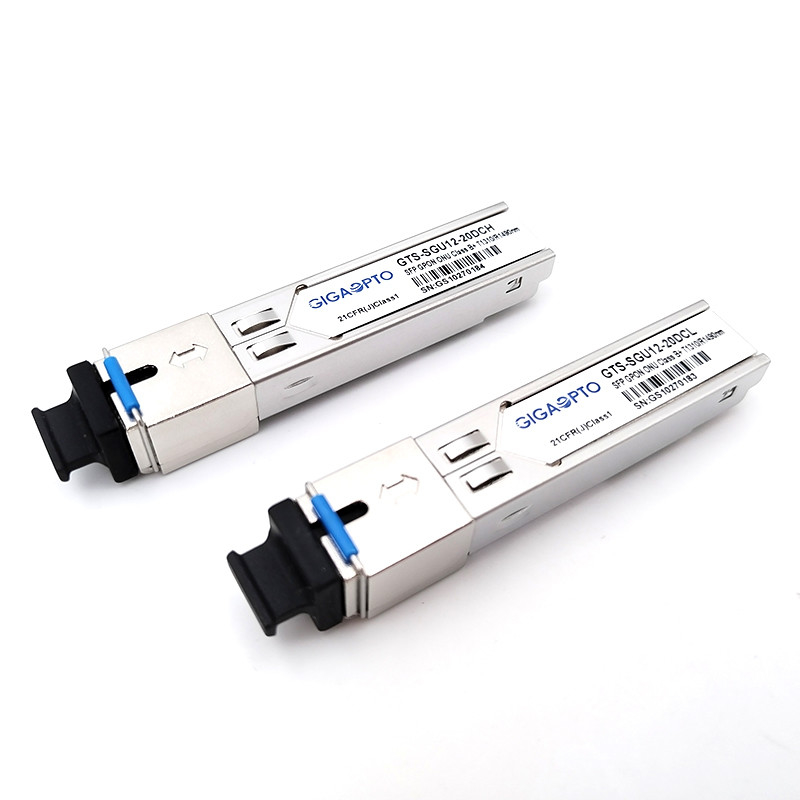

Singlemode Sfp Optical Transceivers For Ftth

Singlemode Sfp Optical Transceivers For Ftth
Singlemode Sfp Optical Transceivers For Ftth

Large Image :  Singlemode Sfp Optical Transceivers For Ftth

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Generic
Certification: CE, FCC, RoHs, TUV, UL
Model Number: GTS-SGT21-20DC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: Single Package,10 or 20pcs per Tray,30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C
Supply Ability: 50,000pcs/Month

Singlemode Sfp Optical Transceivers For Ftth

Description
Transmission Rate: 2.488Gbps / 1.244Gbps Fiber Type: Single-mode
Interface Type: GPON Total Current: 450mA
Connector: SC UPC Application: FTTH / FTTP / FTTA
Product Name: GPON SFP Transceiver Storage Temperature: -40-85C
High Light:

gpon sfp module singlemode

,

gpon transceiver for ftth

,

transceiver gpon for ftth

Product Description:

The GPON SFP transceiver is a high-performance transceiver designed for use in GPON-OLT-CLASS C++ applications. It uses the most advanced technology to achieve reliable and stable data transmission with low power consumption. It is equipped with advanced optics for long-distance coverage and offers a wide range of features to meet the needs of any network. The transceiver has a storage temperature range of -40 to 85°C, a wavelength of 1490nm/1310nm, an SC UPC connector, and a supply voltage of 3.3V. It is also designed to operate in a humidity range of 5% to 95%.

GPON SFP transceivers are designed to meet the highest quality and reliability standards and are ideal for GPON-OLT-CLASS C++ networks. It is designed to provide reliable data transmission over long distances and excellent performance. It is also designed to consume less power, ensuring an efficient and cost-effective solution for any network.



Features:

  • Product Name: GPON SFP Transceiver
  • Wavelength: 1490nm / 1310nm
  • Transmission Rate: 2.488Gbps / 1.244Gbps
  • Total Current: 450mA
  • Operating Temperature: -40~85℃
  • Power Supply: 3.3V
  • SFP Module Transceiver
  • SFP Optical Transceivers


Technical Parameters:

Parameter Specification
Wavelength 1490nm / 1310nm
Transmission Rate 2.488Gbps / 1.244Gbps
Application FTTH / FTTP / FTTA
Optical Components FP / DFB / DML
Receiver Sensitivity -31dBm
Product Name GPON SFP Transceiver
Total Current 450mA
Connector SC UPC
Distance 60Km
Storage Temperature -40-85C


Applications:

Universal GPON SFP transceiver module ideal for FTTH/FTTP/FTTA and other applications. The single-mode fiber optic transceiver module has passed CE, FCC, RoHs, TUV and UL certifications and is reliable and safe to use. The module features 1490nm/1310nm wavelength and 60km distance, providing maximum flexibility. Additionally, they feature a wide operating temperature range of -40 to 85°C, allowing operation in a variety of conditions.



Support and Services:

GPON SFP Transceiver Technical Support and Service

At Gigaopto, we are committed to providing our customers with the best technical support and service. Our GPON SFP Transceiver is supported by our experienced, knowledgeable, and motivated staff of engineers. They are available to answer any questions you may have about the product, as well as provide any necessary troubleshooting assistance. We also offer the following services:

  • Installation and configuration
  • Maintenance and repair
  • Software upgrades
  • 24/7 technical support

If you have any questions or concerns, don't hesitate to contact us. Our team is always here to help.



FAQ:

Q: What is the Brand Name of this GPON SFP Transceiver?
A: The Brand Name is Generic.
Q: Where is this GPON SFP Transceiver from?
A: This GPON SFP Transceiver is from Shenzhen, China.
Q: What certifications does this GPON SFP Transceiver have?
A: This GPON SFP Transceiver has CE, FCC, RoHs, TUV, UL certifications.
Q: What are the applications of this GPON SFP Transceiver?
A: This GPON SFP Transceiver is suitable for Gigabit Passive Optical Network (GPON) systems.
Q: What is the transmission rate of this GPON SFP Transceiver?
A: This GPON SFP Transceiver supports 2.5 Gbps downstream and 1.25 Gbps upstream transmission rate.
