Product Details:
|
| Interface Type: | GPON | Transmission Rate: | 2.488Gbps / 1.244Gbps |
|---|---|---|---|
| Humidity: | 5%~95% | Receiver Sensitivity: | -27dBm |
| Storage Temperature: | -40-85C | Product Name: | GPON SFP Transceiver |
| Operating Temperature: | -40~85℃ | Application: | FTTH / FTTP / FTTA |
| Highlight: | gpon sfp module,gpon transceiver,transceiver gpon |
||

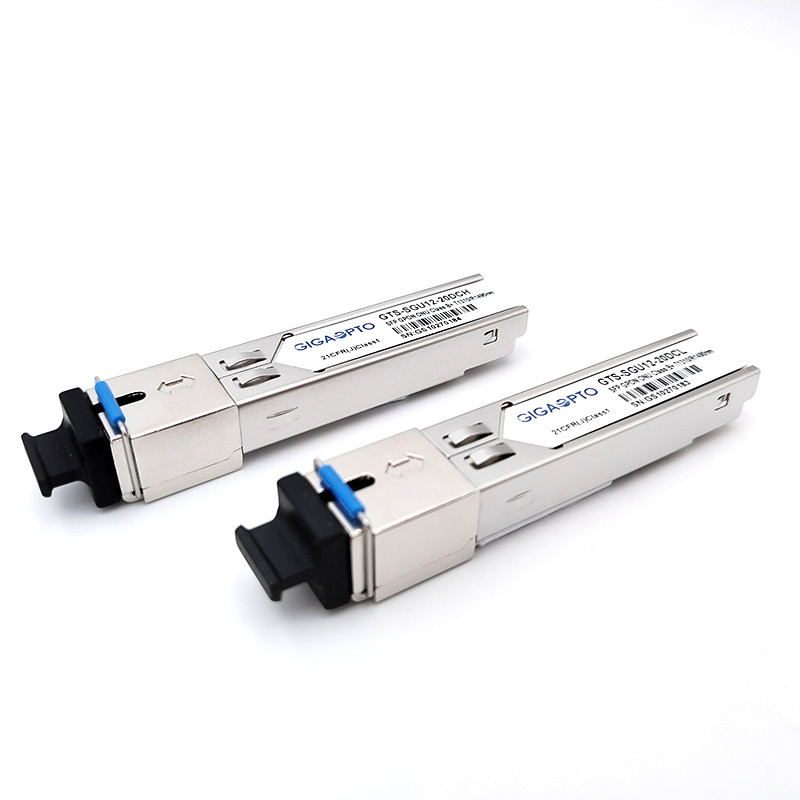

GPON SFP Transceiver is a high performance optical transceiver designed for use with GPON-OLT-CLASS C++ applications. With a transmission rate of 2.488Gbps and 1.244Gbps, it features a receiver sensitivity of -27dBm and an interface type of GPON. It is suitable for FTTH/FTTP/FTTA applications and can operate in a wide range of humidity, from 5% to 95%. This high-performance SFP transceiver is designed to provide reliable operation and fast data transmission.
| Property | Value |
|---|---|
| Distance | 60Km |
| Transmission Rate | 2.488Gbps / 1.244Gbps |
| Receiver Sensitivity | -27dBm |
| Power Supply | 3.3V |
| Operating Temperature | -40~85℃ |
| Wavelength | 1490nm / 1310nm |
| Application | FTTH / FTTP / FTTA |
| Interface Type | GPON |
| Fiber Type | Single-mode |
| Total Current | 450mA |
The Generic SFP Transceiver Modules from Shenzhen, China are CE, FCC, RoHs, TUV, and UL certified, and provide a total current of 450mA. It is suitable for single-mode applications and can be powered with a 3.3V supply. It uses optical components such as FP, DFB, and DML, and is capable of reaching a maximum distance of 60Km. This SFP Module Transceiver is a reliable and cost-effective solution for various applications. It is ideal for those looking for a Generic Transceiver from Shenzhen with the highest standards of certification. The Shenzhen Transceiver is CE-certified, FCC-certified, RoHS-certified, TUV-certified, and UL-certified, making it a great choice for those looking for a Single-mode Transceiver with the highest levels of reliability. It comes with optical components such as FP, DFB, and DML, and is capable of reaching a maximum distance of 60Km. The FP Transceiver, DFB Transceiver, and DML Transceiver are highly reliable and cost-effective solutions for various applications. The 60Km Transceiver from Shenzhen is the perfect choice for those looking for a reliable and cost-effective solution for their applications.
GPON SFP Transceiver provides technical support and services to ensure that customers get the most out of their product. Technical support and service includes the following:
