Product Details:
|
| Power Supply: | 3.3V | Connector: | SC UPC |
|---|---|---|---|
| Storage Temperature: | -40-85C | Distance: | 60Km |
| Transmission Rate: | 2.488Gbps / 1.244Gbps | Product Name: | GPON SFP Transceiver |
| Total Current: | 450mA | Optical Components: | FP / DFB / DML |
| Highlight: | gpon sfp module,gpon transceiver,transceiver gpon |
||

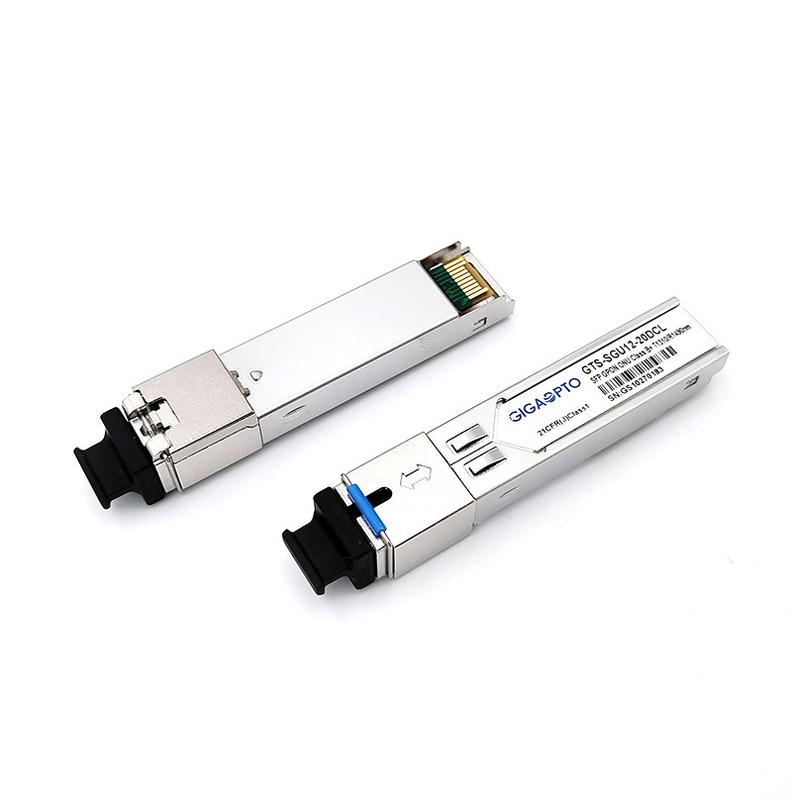

Our GPON SFP transceiver modules are designed to operate over single-mode fiber optic networks. These transceivers have a maximum transmission distance of up to 60 kilometers and are compliant with GPON OLT C++ and GPON ONU C++ standards. SC UPC connectors provide reliable, low-loss connections, and -27dBm receiver sensitivity ensures reliable communications. In addition, the -40~85°C operating temperature range makes these transceivers suitable for a variety of environments.
| Parameters | Specifications |
|---|---|
| Transmission Rate | 2.488Gbps / 1.244Gbps |
| Receiver Sensitivity | -27dBm |
| Connector | SC UPC |
| Application | FTTH / FTTP / FTTA |
| Humidity | 5%~95% |
| Optical Components | FP / DFB / DML |
| Fiber Type | Single-mode |
| Operating Temperature | -40~85℃ |
| Wavelength | 1490nm / 1310nm |
| Power Supply | 3.3V |
The Universal Brand GPON SFP Transceiver is a high-performance, cost-effective optical transceiver solution designed for Gigabit Passive Optical Network (GPON) applications. It is compatible with the IEEE 802.3ah standard and supports transmission distances of up to 60 kilometers for GPON applications. It also meets CE, FCC, RoHs, TUV and UL certifications. GPON SFP optical modules are equipped with advanced optical devices such as FP, DFB and DML, and have a wide operating temperature range of -40 to 85°C. The total current is up to 450mA, providing a reliable and cost-effective solution for GPON systems.
The GPON SFP transceiver is a high-speed optical transceiver that supports Gigabit Ethernet, Fiber Channel and other data center applications. This equipment is designed for long-term reliability and performance. It supports a variety of optical technologies, including short-range, long-range and tunable optics. With its high compatibility, the device is also compatible with a variety of industry-standard SFP transceivers.
Technical support and service for GPON SFP transceivers include installation assistance, troubleshooting and replacement parts. The device comes with a limited warranty and comes with a lifetime technical support hotline. If customers have any questions or issues regarding the product, they can contact the helpline. In addition, the company provides on-site support for installation and maintenance.
The company also provides customers with online resources such as FAQs, tutorials, and product documentation. These resources are designed to help customers better understand the product and its features. The company also provides regular software updates to ensure devices are running the latest version.
