Product Details:
|
| Features: | GPON ONU B+ | Product Name: | Mikrotik GPON SFP |
|---|---|---|---|
| Connector: | SC UPC | Details: | 1310nm 1.244G_TX /1490nm 2.488G_RX |
| Application: | Mikrotik GPON Networks | Keywords: | S-GPON-ONU, SFPONU |
| High Light: | B+ Transceiver SFPONU,Mikrotik GPON Networks SFPONU,S-GPON-ONU GPON SFP Transceiver |
||

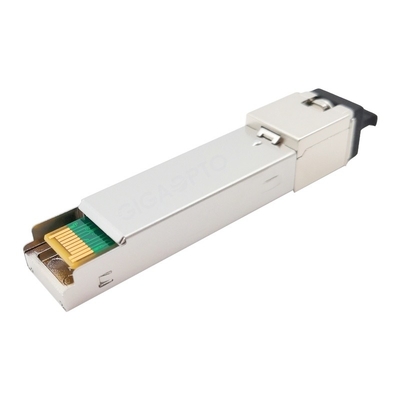

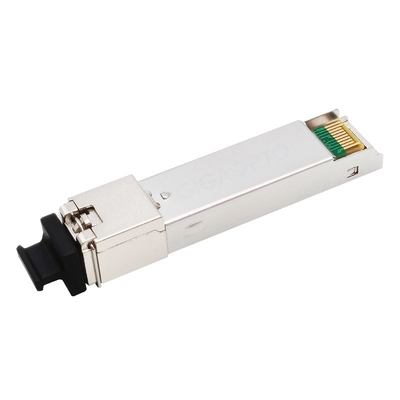

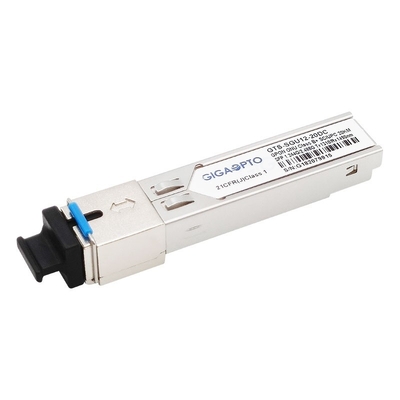

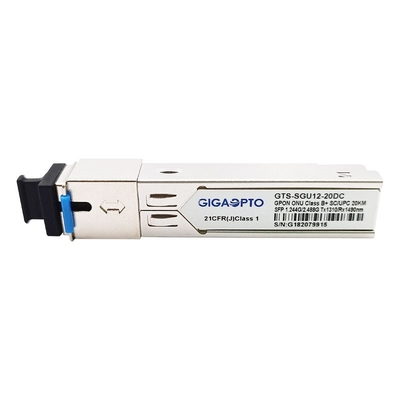

Mikrotik S-GPON-ONU Compatible GPON SFP ONU B+ Transceiver ( SFPONU 1310nm_TX/1490nm_RX, SC UPC, 20km DDM)
Description Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver
This Mikrotik S-GPON-ONU compatible SFPONU transceiver is designed for low cost P2MP FTTx applications. It can fully support the Class B+ ODN application specified by the ITU-T G.984.2 standard and ITU-T G.984.2 Amendent-2006.
The transmitter section uses a DFB laser diode and is fully compliant with IEC60825 and CDRH class 1 eye safety. It contains APC functions, a temperature compensation circuit to ensure compliance with G.984.2 requirement at operating temperature, data inputs and AC or DC coupling circuit.
The receiver section uses a hermetic packaged APD-TIA (APD with trans-impedance amplifier) and a limiting amplifier. The APD converts optical power into electrical current and the current is transformed to voltage by the trans-impedance amplifier. The differential DATA and DATA CML data signals are produced by the limiting amplifier. The APD-TIA is AC coupled to the limiting amplifier through a low pass filter.
This Mikrotik compatible SFPONU transceiver is programmed and tested in it's intended application with identical functionality to the original Mikrotik S-GPON-ONU transceiver.
Specification Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver
| Compatible Brand | Mikrotik | Compatible P/N | S-GPON-ONU |
| Product Type | GPON ONU SFP (SFPONU) | Category | Class B+ |
| Connector Type | SC UPC | Cable Link Length | 20km |
| DOM/DDM | Support | Cable Type | G.652 single-mode fiber |
| Operating Temperature | Com. / Ind. | Unit Weight | 25gram |
| Bit-Rate (TX) | 1.244Gbps | Bit-Rate(RX) | 2.488Gbps |
| Wavelength (TX) | 1310nm | Wavelength (RX) | 1490nm |
| Power Consumption | <1.0 W | Supply Current | 300mA |
| Transmitter Part | DFB Laser | Receiver Part | APD Photodetector |
| TX Average Power | +0.5~+5.0dBm | RX Sensitivity | < -28.0dBm |
| Extinction Ratio | >10dB | Saturation | >-8dBm |
| Protocols | MSA Compliant,ITU-T 984.2 | ||
Ordering Information Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver
| Specifications- Mikrotik SFPONU SMF Transceiver | |||||
| Package | TX Burst Mode | LOS/SD | Temperature | Class | DDM |
| SFP | Low Level Enable TX | RX_SD | -5~70 | B+ | Y |
| SFP | Low Level Enable TX | RX_SD | -40~85 | B+ | Y |
| SFP | High Level Enable TX | RX_SD | -5~70 | B+ | Y |
| SFP | High Level Enable TX | RX_SD | -40~85 | B+ | Y |
| SFP | Low Level Enable TX | RX_LOS | -5~70 | B+ | Y |
| SFP | Low Level Enable TX | RX_LOS | -40~85 | B+ | Y |
| SFP | High Level Enable TX | RX_LOS | -5~70 | B+ | Y |
| SFP | High Level Enable TX | RX_LOS | -40~85 | B+ | Y |
Features Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver
Application Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver
Mechanical Outline Of Mikrotik S-GPON-ONU Compatible SFPONU Transceiver
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
