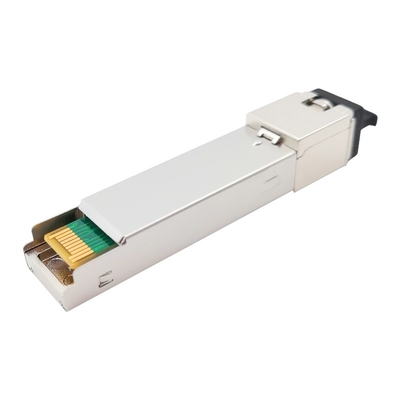

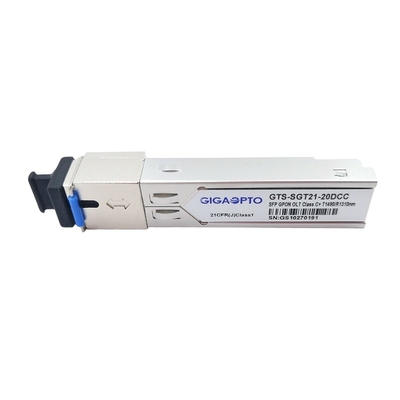

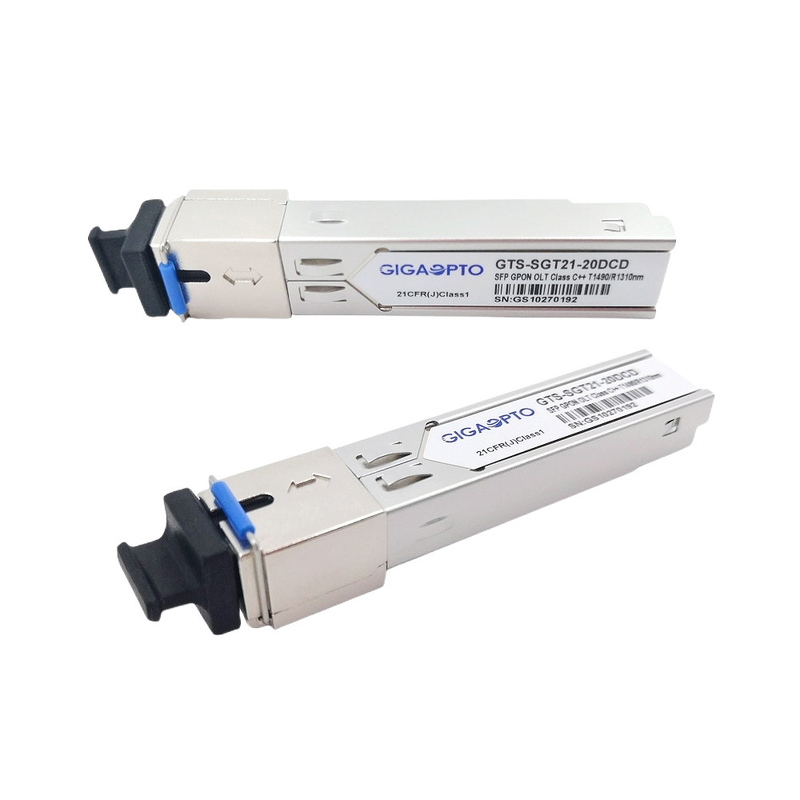

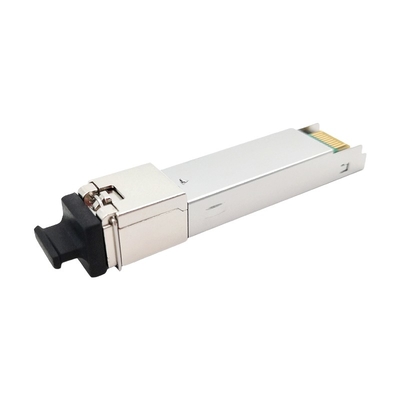

Generic GPON SFP Transceiver For RUHAN / Neophotonics / WTD / SourcePhotonics

Generic GPON SFP Transceiver For RUHAN / Neophotonics / WTD / SourcePhotonics
Generic GPON SFP Transceiver For RUHAN / Neophotonics / WTD / SourcePhotonics Generic GPON SFP Transceiver For RUHAN / Neophotonics / WTD / SourcePhotonics Generic GPON SFP Transceiver For RUHAN / Neophotonics / WTD / SourcePhotonics Generic GPON SFP Transceiver For RUHAN / Neophotonics / WTD / SourcePhotonics

Large Image :  Generic GPON SFP Transceiver For RUHAN / Neophotonics / WTD / SourcePhotonics

Product Details:
Place of Origin: China
Brand Name: Generic
Certification: CE,FCC,RoHs, TUV,UL
Model Number: GTS-SGT21-20DCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: Static bag, Plastic PVC Pack, Retail box
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C
Supply Ability: 50,000pcs/month

Generic GPON SFP Transceiver For RUHAN / Neophotonics / WTD / SourcePhotonics

Description
Product Name: Generic GPON SFP Class: C+
Interface: Simplex SC Bit Rate: D_2.488Gbps/U_1.244Gbps
Application: Generic GPON Networks Keywords: Generic GPON SFP
High Light:

C+ Simplex SC GPON SFP Transceiver

,

Neophotonics GPON SFP Transceiver

,

SourcePhotonics GPON SFP Transceiver

Generic GPON SFP For TRUHAN Neophotonics WTD SourcePhotonics Superxon Broadex BDCOM VSOL





Description



This generic GPON SFP transceiver with supports a data rate of typically 2.488 Gbps for GPON OLT applications up to 20km transmission distance, it’s designed meeting with ITU-T G.984.2 Class C+ specifications. SC receptacle is for optical interface.



This generic GPON SFP transceiver uses top quality DFB Laser transmitter operating at a nominal wavelength 1490 nm and 1310 nm APD Photodiode receiver.



DDM/DOM optical diagnostics functions are available, which provide diagnostic information about the present operating conditions.



This generic GPON SFP transceiver is fully compliant with SFP MSA and CE/RoHS certified,



It is compatible with 80% of networking equipment, such as TRUHAN/Neophotonics/WTD/SourcePhotonics/Superxon/Broadex/BDCOM/VSOL.



Specification Of Generic GPON SFP



Item Name Generic GPON SFP P/N GTS-SGT21-20DCC
Form Factor SFP Type Class C+ 20km
Data Rate Down_2.5Gbps/UP_1.25Gbps Wavelength Down_1490nm/UP_1310nm
BOSA Type DFB/APD Temp. 0 to 70°C / -40 to 85°C
TX Output Power +3 to +7dBm RX Sensitivity <-30dBm
Ext. Ratio >8.2dB Saturation Input Power >-12dBm
Connector Single SC Cable Type Single Mode Fiber
Power Dissipation <1.5W Unit Weight 25gram
DDM/DOM Support Warranty 3 years
Application GPON OLT Class C+ application, FTTX FTTH WDM Broadband Access
Compliance IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS



Features Of Generic GPON SFP



  • Hot pluggable generic GPON SFP Module
  • SFP Package with SC receptacle
  • 1.244Gbps, 1310nm BM APD Receiver
  • 2.488Gbps, 1490nm Transmitter With Isolator
  • Fast Signal Detect feature reduces ranging overhead
  • Simplified OLT Reset Timing
  • Compliant With ITU-T G.984.2
  • Squelched RX output
  • Up to 20km distance at 9/125µm G.652 SMF
  • Operating Case Temperature:Commercial: 0℃~+70℃; Industrial: -40℃~+85℃
  • RoHS6 Compliance



Application Of Generic GPON SFP



  • Gigabit-capable Passive Optical Networks (GPON)



FAQ



Q: Can you recommend some products that best meet my demands?
Yes, if you don't know which product is good, let us know your detailed requirements, and our engineers will recommend you a proper device. Or if you have a specification, just send it to me.



Q: What certification did you get?
Our product strictly operates the ISO9001:2008 quality control system and we passed the CE, FCC, ROHS and SGS tests,you can trust us.



Q: What about a warranty for your Generic GPON SFP?

3-year warranty for new generic GPON SFP, and lifetime technical support.



Q: Does GigaOpto do OEM&ODM ?
Yes. We accept OEM & ODM



Q: How can I get a sample of this generic GPON SFP to check your quality?

A free sample is available.
