Product Details:
|
| Product Name: | GPON SFP Module | Details: | TX 2.5G-1490nm/RX 1.25G-1310nm |
|---|---|---|---|
| Distance: | 20km | TX Power: | 3.5dBm (Min.) |
| Interface: | Simplex SC | Keywords: | Cisco SFP-GPON-B |
| Highlight: | TX 1490nm GPON OLT Transceiver,RX 1310nm GPON OLT Transceiver,Cisco SFP-GPON-B GPON SFP Transceiver |
||

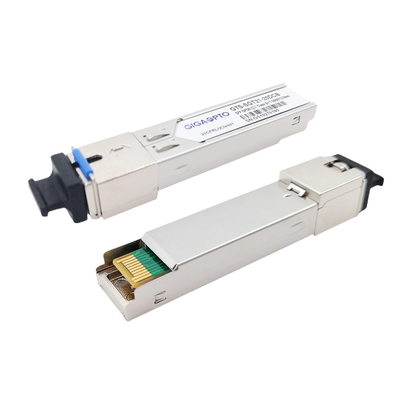

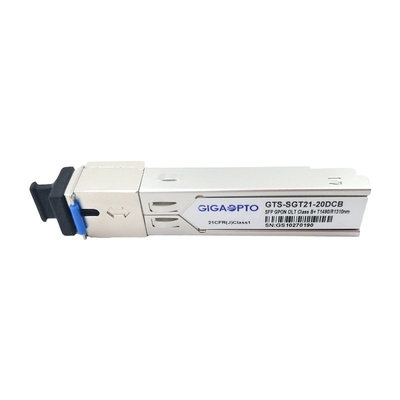

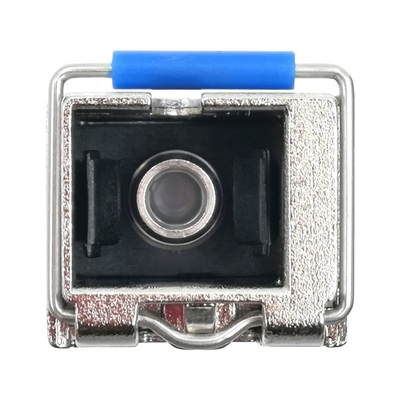

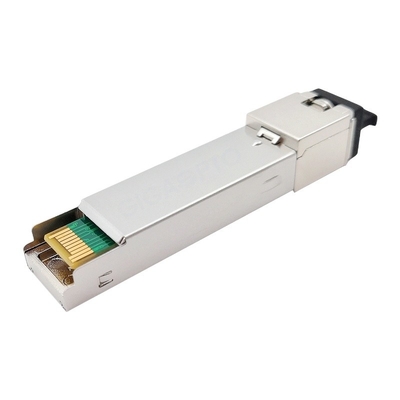

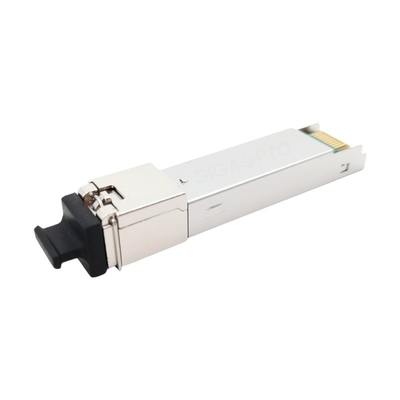

Cisco SFP-GPON-B Compatible OLT Transceiver SC Module 20km SMF
Description Of Cisco SFP-GPON-B Compatible OLT Transceiver
This Cisco SFP-GPON-B compatible OLT transceiver features with a 1490nm continuous-mode DFB transmitter and a 1310nm burst-mode APD receiver, which provides the minimum optical budget of 31.5dB.
It can fully support the GPON OLT B+ application specified by the ITU-T G.984.2 Class B+ specifications.
This OLT B+ transceiver is programmed and tested in it's intended application with identical functionality to the original Cisco SFP-GPON-B transceiver but with much lower price. It’s 100% compatible with Cisco Catalyst PON Series Switches.
Specification Of Cisco SFP-GPON-B Compatible OLT Transceiver
| Compatible Brand | Cisco | Compatible P/N | SFP-GPON-B |
| Package | SFP | Compatibility | MSA Compatible |
| Maxim Distance | 20km | Media Type | single-mode fiber |
| Data Rate | D:2.488Gbps/U:1.244Gbps | Wavelength | TX1490nm/RX1310nm |
| Transmitter Part | DFB Laser | Receiver Part | APD Photodetector |
| TX Output Power (dBm) | +1.5~+5.0dBm | RX Sensitivity | < -28.0dBm |
| Extinction Ratio | >8.2dB | Receiver Overload | >-8dBm |
| Power Budget (dB) | 31.5dB | Power Consumption | <1.5W |
| DDM/DOM | Support | Connectors | Single SC |
| Temperature Range | Commercial/Industrial | Unit Weight | 25gram |
| Application | GPON OLT Class B+ application; FTTX FTTH WDM Broadband Access | ||
| Protocols | Class 1 laser product IEC-60825, FCC 47 CFR Part 15, Class B, FDA 21 CFR 1040.10 and 1040.11, ITU-T G.984.2, RoHS-6, SFP Multi-Source Agreement (MSA) SFF-8074i, Telcordia GR-468-CORE, TR-NWT-000870 4.1 ESD sensitivity classification, SFF-8472 | ||
Features Of Cisco SFP-GPON-B Compatible OLT Transceiver
FAQ
Q: Are you factory or trading company?
Shenzhen GigaOpto Technology Co., Ltd is a specialized manufacturer of optical transceivers from 155Mbps to 100Gbps, covering PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Can I have a sample order? What is your MOQ of this Cisco SFP-GPON-B Compatible OLT Transceiver?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP, Huawei, Alcatel-Lucent, H3C and more.
Q: How can you guarantee the quality of this Cisco SFP-GPON-B Compatible OLT Transceiver?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What is the operating temperature range of optical modules?
Commercial temperature range(Com.) : 0 to 70℃
Extended temperature range(Ext.):-20 to 85℃
Industrial temperature range(Ind.)::-40 to 85℃
Q: Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q: What is the lead time?
For usual products,We keep stock, could ship about 3 days after receiving payment. For big quantity and special products, Please check lead time with our sales representative.
Q: What is your after-sales service for this Cisco SFP-GPON-B Compatible OLT Transceiver?
All our customers can get three years quality warranty and lifetime technical support.
