Product Details:
|
| Product: | Nokia XGSPON Transceiver | Package: | SFP+ |
|---|---|---|---|
| Tx Power: | 2~5dBm | Data Rate: | TX 9.953G/RX 9.953G/RX 2.488G |
| Wavelength: | TX1577nm/RX1270nm | Keywords: | 3FE47548AA， NOKIA XGSPON |
| Highlight: | 3FE47548AA Nokia SFP+ Transceiver Module,10G OLT N1 SFP+ Transceiver Module,TX 9.953G UL GPON SFP Transceiver |
||

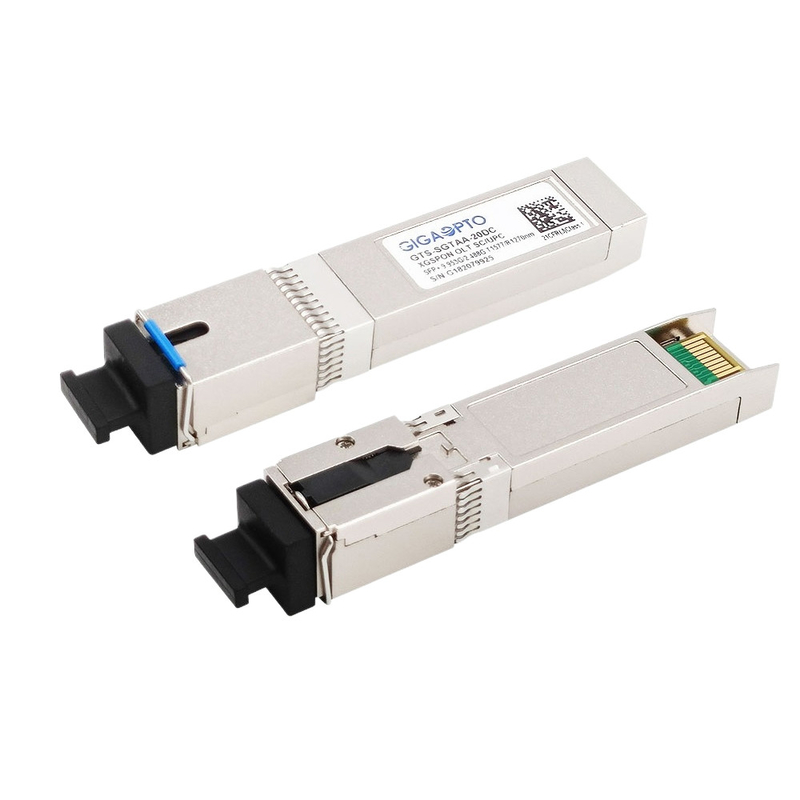

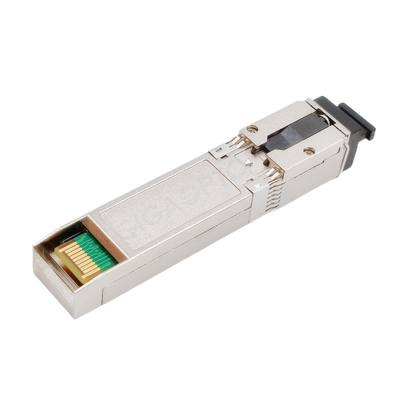

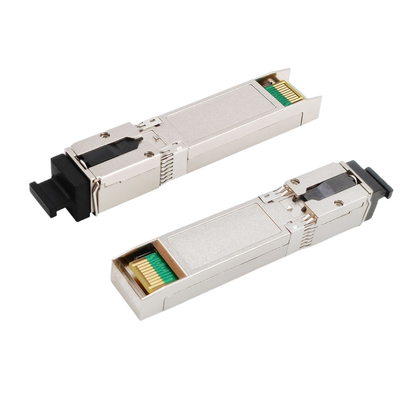

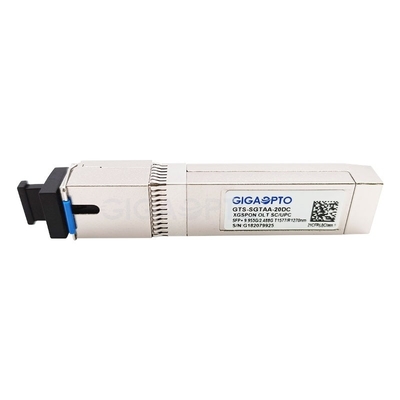

10G Nokia XGSPON OLT N1 SFP+ Transceiver Module SC For 3FE47548AA
Description Of Nokia 3FE47548AA Compatible XGSPON Transceiver
This Nokia 3FE47548AA compatible XGSPON transceiver module is designed for 10G symmetrical, low-cost point to multi-point (P2MP) Fiber to the Home (FTTH), business (FTTB), or curb (FTTC)applications.
It employs a 1577nm center wavelength mode downlink EML DFB laser operating at 9.953Gbps, and a 1270nm APD/TIA burst-mode uplink receiver operating at 9.953Gb/s and 2.488Gb/s, reaching a link up to 20km over single mode fiber (SMF) via an SC connector.
This XGSPON OLT 3FE47548AA module is fully compliant with SFP+ MSA, SFF-8472 and RoHS/CE/FCC standards.
Specification Of Nokia 3FE47548AA Compatible XGSPON Transceiver
| Compatible Brand | Nokia | P/N | 3FE47548AA |
| Application For | XGSPON OLT | Form Factor | SFP+ |
| Vendor | Gigaopto | ODN Class | N1a |
| Link Distance | 20km | Connector Type | Simplex SC UPC |
| Bit Rate Downlink | 9.953Gb/s | Bit Rate Uplink | 9.953Gb/s/2.488Gb/s |
| Wavelength (TX) | 1577nm | Wavelength (RX) | 1270nm |
| Power Dissipation | <2.0 W | Total Supply Current | <600mA |
| Transmitter Part | EML | Receiver Part | APD |
| TX Power (dBm) | 2~5dBm | Receive Sensitivity | < -27.5dBm |
| Extinction Ratio | >8.2dB | Input Saturation Power | >-7.0dBm |
| DDM/DOM | Support | Environment | Operating: -5°C to 70°C |
| Warranty | 3 Years | storage:-40~85°C | |
| Protocols | ITU-T G.987.2, G.9807.1 | ||
Product Features Of Nokia 3FE47548AA Compatible XGSPON Transceiver
Application Of Nokia 3FE47548AA Compatible XGSPON Transceiver
Standards Of Nokia 3FE47548AA Compatible XGSPON Transceiver
Ordering Information of our XGS-PON OLT SFP+ Transceivers
| P/N | Description | Data Rate (Gb/s) | Wavelength (nm) | Class | Tx/Rx Type | Tx Power | Rx Sensitivity | Interface | Temperature |
| 3FE47548AA | XGSPON OLT SFP+ for Nokia | TX 9.953G/RX 9.953G/RX 2.488G | TX1577nm/RX1270nm | N1 | EML/APD | 2~5dBm | -27.5dBm | SC UPC | Com |
| 3FE46232BAAA | XGSPON OLT SFP+ for Nokia | TX 9.953G/RX 9.953G/RX 2.488G | TX1577nm/RX1270nm | N2a | EML/APD | 4~7dBm | -29.5dBm | SC UPC | Com |
FAQ
Q: Why choose us?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field.
1. We promise all the advertised optical transceivers are brand new with new components and parts.
2. We never use old and refurbished materials.
3. All the optical transceivers have been through functional tests and aging tests.
4. We provide 3 years warranty for all the optical transceivers from the date of shipment.
Q: Please explain how you ensure compatibility for the brands:
1. Experience: We have an experienced engineering team with over 15 years of compatibility for brands.
2. Testing Facilities: We are able to access massive major manufacturers' switches, routers, NICs ...to verify the compatibility.
3. Expertise: We have a group of experts who have been focusing on hardware, software, coding compatibility, and have always been analyzing the different brands' newly released firmware.
4. Strategic Loyalty Customers: Many of our customers work very closely with us on newly released OEM equipment and help us to expand our compatibility matrix.
5. Connections: We have many good connections to understand and learn first-hand information about the compatibility trend in the market.
Q: What is your after-sales service? How about the warranty for this Nokia 3FE47548AA Compatible XGSPON Transceiver?
All our customers can enjoy the after-sales service for three-year-warranty and lifetime technical support.
Q: Can I have a sample order? What is your MOQ of the Nokia 3FE47548AA Compatible XGSPON Transceiver?
Yes, we welcome sample orders to test and check quality. MOQ is 1 for normal products.
