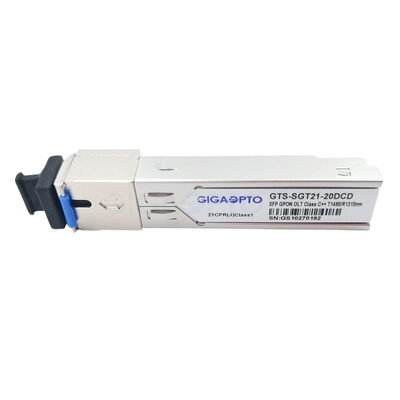

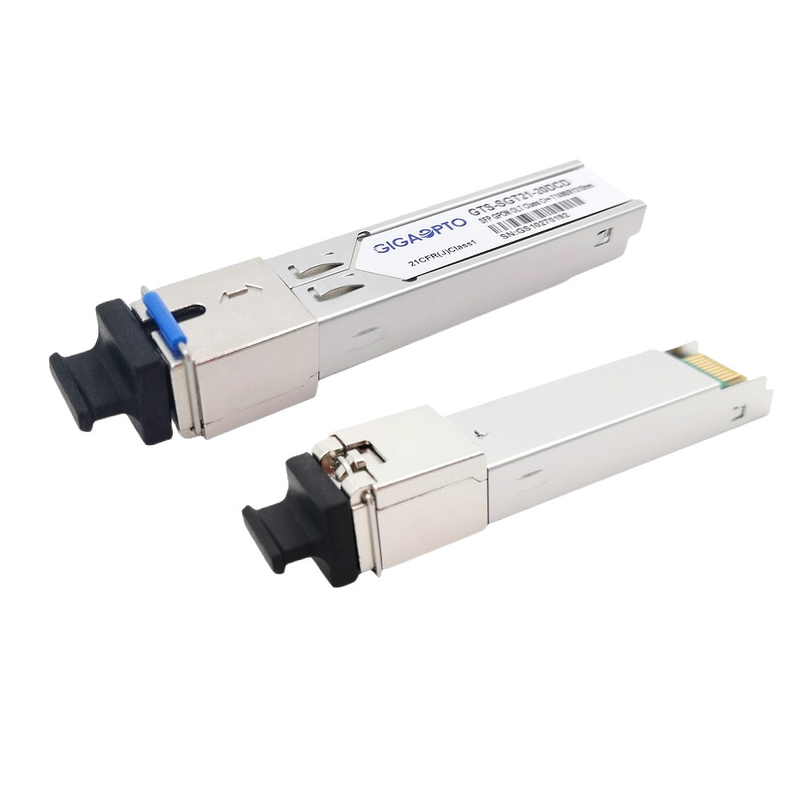

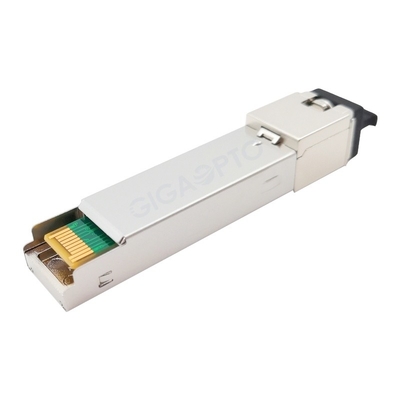

Alcatel-Lucent Nokia 3FE53441JC GPON OLT C++ Transceiver 6dBm

GPON OLT C++ Transceiver 6dBm For Alcatel-Lucent Nokia 3FE53441JC

Description Of Alcatel-Lucent Nokia 3FE53441JC Compatible SFP Transceiver

This Alcatel-Lucent Nokia 3FE53441JC compatible SFP transceiver is designed to meet ITU G.984.2 Class C++ requirements for optical line terminal (OLT) applications.

The 1490nm DFB LD transmitter has automatic power control (APC) function and temperature compensation circuitry to ensure stable optical power and extinction ratio over all operating temperature ranges. The transmitter meets Class 1 eye safety per IEC60825 and CDRH standards.

The receiver has a hermetically packaged APD-TIA (trans-impedance amplifier) pre-amplifier and a limiting amplifier with LVPECL compatible differential outputs. It features a Burst Packet Detect (SD) output which is LVTTL compatible. The SD output will come high after receiving the burst packet.

This Nokia Alcatel-Lucent 3FE53441JC compatible C++ transceiver is programmed and tested to be compatible with a wide range of Nokia GPON OLT equipment such as NOKIA Alcatel-Lucent 7360 ISAM FX-4, NOKIA Alcatel-Lucent 7360 ISAM FX-8, NOKIA Alcatel-Lucent 7360 ISAM FX-16, Nokia Alcatel-Lucent 7362 ISAM, Nokia Alcatel Lucent 7330 Fx8, etc.

It’s equivalent to the OEM Nokia Alcatel-Lucent 3FE53441JC transceiver in function but with a lower price.

Specification Of Alcatel-Lucent Nokia 3FE53441JC Compatible SFP Transceiver

Features Of Alcatel-Lucent Nokia 3FE53441JC Compatible SFP Transceiver

• Functionally identical to Nokia 3FE53441JC
• Single fiber bi-directional data links asymmetric TX 2488Mbps/RX1244Mbps application
• 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
• Small Form Factor Pluggable package with SC/UPC Connector
• Operating case temperature Range:Commercial: 0°C~70°C, Industrial: -40°C~85°C
• Single 3.3V power supply
• Digital diagnostic monitoring interface
• Digital burst RSSI function to monitor the input optical power level
• LVPECL compatible data input/output interface
• LVTTL transmitter disable control
• LVTTL transmitter laser fault alarm
• Fast LVTTL receiver Signal Detect (SD) indication response
• Low EMI and excellent ESD protection
• Class I laser safety standard IEC-60825 compliant
• RoHS6 Compliance

Application Of Alcatel-Lucent Nokia 3FE53441JC Compatible SFP Transceiver

• Nokia Gigabit-capable Passive Optical Networks (GPON)

Standards Of Alcatel-Lucent Nokia 3FE53441JC Compatible SFP Transceiver

• MSA SFF-8074i
• ITU-T G.984.2 Amendment 1
• SFF-8472
• TR-NWT-000870 4.1 ESD sensitivity classification Class2.
• Telcordia GR-468-CORE

FAQ

Q: Why choose us?

GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage.

1. Competitive prices.
2. High-quality products and services.
3. Fully compatible (Cisco/Juniper/HP/Huawei/Alcatel-Lucent Nokia/H3C...)
4. The big capability of manufacture for 40K~100K pcs per month.
5. Independent R&D ability.
6. Keep stock, Fast delivery

Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, Arista, HP, Huawei, Alcatel-Lucent Nokia, H3C, and more.

Q: Can I have a sample order? What is your MOQ for an Alcatel-Lucent Nokia 3FE53441JC Compatible SFP Transceiver?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.

Q: What are your payment terms for Alcatel-Lucent Nokia 3FE53441JC Compatible SFP Transceiver?
Usually, we need prepayment by T/T, West Union, or Paypal.

Could also support L/C, Credit terms.

Q: Could I return the products if there is a quality problem?
Yes, if there is a quality problem happen, we could accept a free exchange.

Q: Could I use our own logo and label on Alcatel-Lucent Nokia 3FE53441JC Compatible SFP Transceiver?

Yes, we could provide an OEM service and make the products with your own label.
