2.488Gbps / 1.244Gbps OLT C+ Nokia GPON SFP Transceiver For 3FE53441BAAA

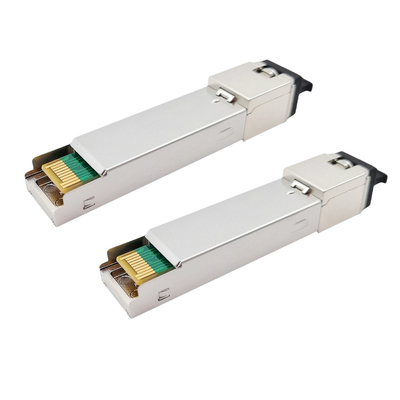

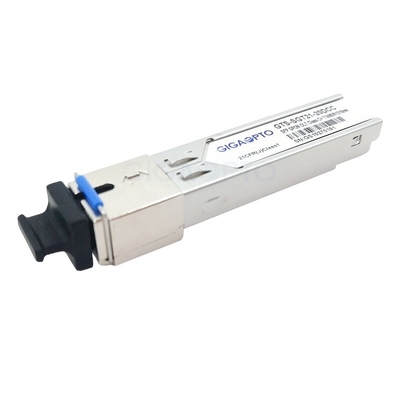

OLT C+ Nokia GPON SFP Transceiver For 3FE53441BAAA

Description of Nokia 3FE53441BAAA compatible GPON OLT Transceiver

This Nokia 3FE53441BAAA compatible GPON OLT Transceiver with supports data rate of typical 2.488 Gbps for GPON OLT applications up to 20km transmission distance, it’s designed meeting with ITU-T G.984.2 Class C+ specifications. SC receptacle is for optical interface.

The 1490nm DFB LD transmitter has automatic power control (APC) function and temperature compensation circuitry to ensure stable optical power and extinction ratio over all operating temperature ranges. The transmitter meets Class 1 eye safety per IEC60825 and CDRH standards.

The receiver has a hermetically packaged APD-TIA (trans-impedance amplifier) pre-amplifier and a limiting amplifier with LVPECL compatible differential outputs. It features a Burst Packet Detect (SD) output which is LVTTL compatible. The SD output will come high after receiving the burst packet.

The 3FE53441BAAA Nokia compatible GPON SFP module provides digital diagnostic information of its operating conditions and status, including transmitting power, laser bias current, module temperature, and supply voltage. Calibration and alarm/warning threshold data are written and stored in the internal memory (EEPROM).

This 3FE53441BAAA transceiver is programmed and tested to be compatible with a wide range of Nokia GPON OLT equipment such as NOKIA Alcatel-Lucent 7360 ISAM FX-4, NOKIA Alcatel-Lucent 7360 ISAM FX-8, NOKIA Alcatel-Lucent 7360 ISAM FX-16, Nokia Alcatel-Lucent 7362 ISAM, Nokia Alcatel Lucent 7330 Fx8 and more.

Specification of Nokia 3FE53441BAAA compatible GPON OLT Transceiver

Features of Nokia 3FE53441BAAA compatible GPON OLT Transceiver

• Functionally identical to Nokia GPON SFP 3FE53441BAAA
• Single fiber bi-directional data links asymmetric TX 2488Mbps/RX1244Mbps application
• 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
• Small Form Factor Pluggable package with SC/UPC Connector
• Single 3.3V power supply
• DDMI function available with internally calibrated mode
• Digital burst RSSI function to monitor the input optical power level
• LVPECL compatible data input/output interface
• LVTTL transmitter disable control
• LVTTL transmitter laser fault alarm
• Fast LVTTL receiver Signal Detect (SD) indication response
• Low EMI and excellent ESD protection
• International Class1 laser safety certified
• Operating temperature range:Commercial: -5°C~70°C / Industrial: -40°C~85°C
• RoHS6 Compliance

Application of Nokia 3FE53441BAAA compatible GPON OLT Transceiver

• Nokia Gigabit-capable Passive Optical Networks (GPON)

FAQ

Q: Are you trading company or manufacturer?

We are original manufacturer. We can do OEM/ODM business. Our company mainly produces SFP Transceiver.

Q: What are your main products?

PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.

Q: Why choose GigaOpto?

1. Prompt delivery and remarkable services
2. Competitive selling prices
3. Rich experience of OEM & ODM co-operation
4. 100% new materials for production and 100% reliable quality

Q: How can you guarantee the quality of the Nokia 3FE53441BAAA compatible GPON OLT Transceiver?

GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.

Q: What about the warranty of the Nokia 3FE53441BAAA compatible GPON OLT Transceiver?

3-year warranty for new products, and lifetime technical support.

Q: Can I have a sample order? What is your MOQ for a Nokia 3FE53441BAAA compatible GPON OLT Transceiver?

Yes, a sample order is available for your testing and checking quality. Mixed samples are acceptable, our MOQ is just one piece.

Q: Could I use our own logo, label and package on this Nokia 3FE53441BAAA compatible GPON OLT Transceiver?
Yes, we can help you to market your own brand of 3rd party transceivers
OEM customization : Your LOGO (Labeling); Your P/N (Labeling);Your S/N (Labeling);

EEPROM information: Vendor name: customized your information; P/N: customized your information; S/N: customized your information.

Q: What are your payment terms for Nokia 3FE53441BAAA compatible GPON OLT Transceiver?

We accept T/T, Western Union, Paypal, L/C, etc. For samples: 100% payment. Formal order: 30%as deposit, 70% balance payment before shipment. Gigaopto may be able to agree to more flexible terms with regular customers or customers with special large orders or products.

Q: How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
