Product Details:
|
| Type: | 10Gbps CSFP+ Transceiver | Data Rate(Gbps): | 10.3Gbps/10.3Gbps |
|---|---|---|---|
| Form Factor: | CSFP+ | Wavelength(Ch1): | TX1310nm/RX1270nm |
| Wavelength(Ch2): | TX1270nm/RX1330nm | Component: | DFB+PIN |
| Transmission: | 20km | DOM/DDM: | Supported |
| Keywords: | 2 Fiber BIDI Transceiver 20km | ||
| Highlight: | 10G Compact SFP,DOM Compact SFP,Dual BIDI Transceiver |
||

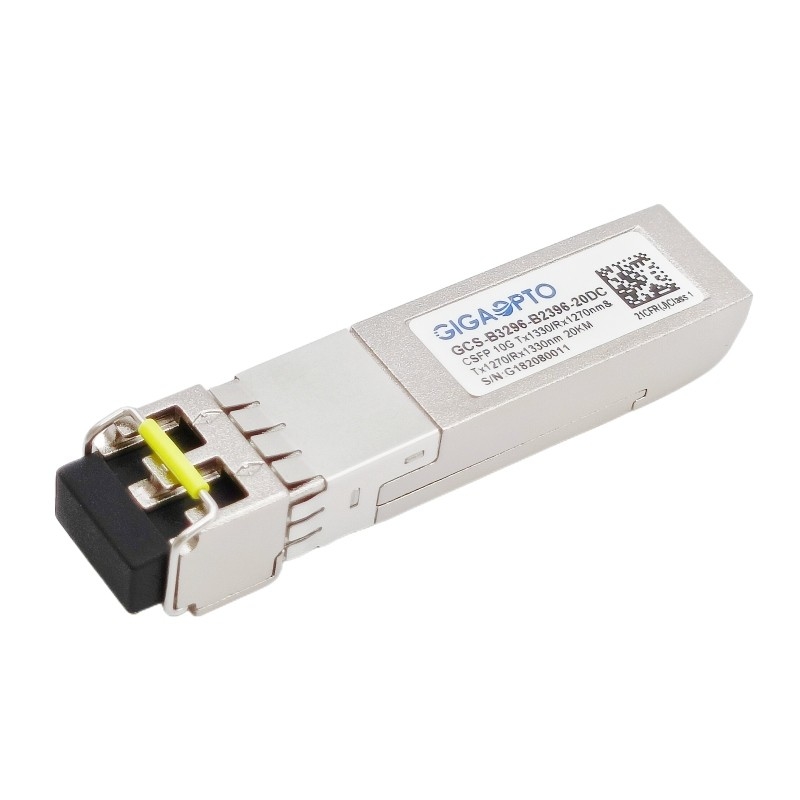

10.3Gbps 2 Fiber Compact SFP+ Transceiver Ch1-TX1330RX1270 Ch2-TX1270RX1330 20km LC SM
Description
The GCS-B3296-B2396-20DC transceiver is a small form factor pluggable module for bi-directional serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1270/1330 nm transmitter and 1330/1270 nm receiver.
This CSFP+ Transceiver is fully compliant with the compact Small Form-Factor Pluggable (CSFP) MSA option 2 for 10GBASE-LR and Fiber Channel, allowing two independent bidirectional channels per port.
It is with the SFP 20-pin connector to allow hot plug capability.Digital diagnostic functions are available via an I2C interface as specified in the MSA SFF-8472.
Specifications
| Product Name | 10G CSFP+ Transceiver | P/N | GCS-B3296-B2396-20DC |
| Form Factor | CSFP+ | Type | 2 fiber Bidirectional |
| Bit Rate (CH1/CH2)) | 10.3Gbps/10.3Gbps | Lane Count | 2x ( Tx/Rx ) |
| Transmission | 20km | Interface | LC Duplex UPC |
| Center Wavelength (CH1) | TX1330nm/RX1270nm | Center Wavelength (CH2) | TX1270nm/RX1330 |
| Power Voltage | +3.3V (typical) | Power Dissipation | ≤ 2.0W |
| Transmitter Type (CH1/CH2) | DFB | Receiver Type (CH1/CH2) | PIN+TIA |
| TX Power per Channel | -2~ +3dBm | RX Sensitivity per Channel | < -13dBm |
| Extinction Ratio | > 3.5dB | RX Saturation | > 0.5dBm |
| Optical Budget (dB) | 11dB | Digital Diagnostic | support |
| Environment Temperature | Operating: 0 to 70°C | Warranty | 36-month |
| Storage: -40°C to 85°C | Unit Weight | 30gram | |
| Compliance | 10G Ethernet Links, MSA Compliant | ||
Features
Application
Electrical and Optical Characteristics
| Parameter | Symbol | Min. | Typical | Max. | Unit |
| 9µm Core Diameter SMF | L | 20 | km | ||
| Data Rate | 1.25 | 10.3 | Gbps | ||
| Transmitter | |||||
| Center Wavelength | λC | 1260 | 1270 | 1280 | nm |
| Spectral Width (-20dB) | Δλ | 1 | nm | ||
| Average Output Power*(note3) | Pout | -2 | 3 | dBm | |
| Extinction Ratio @ 1250Mbps | ER | 3.5 | dB | ||
| Side Mode Suppression Ratio | SMSR | 30 | dB | ||
| Transmitter and Dispersion Penalty | TDP | 2 | dB | ||
| Average Power of OFF Transmitter | -30 | dBm | |||
| Receiver | |||||
| Center Wavelength | λC | 1320 | 1330 | 1340 | nm |
| Receiver Sensitivity*(note4) | Pmin | -13 | dBm | ||
| Receiver Overload | Pmax | 0.5 | dBm | ||
| Return Loss | 12 | dB | |||
| LOS De-Assert | LOSD | -14 | dBm | ||
| LOS Assert | LOSA | -30 | dBm | ||
Note3: Output is coupled into a 9/125μm single-mode fiber.
Note4: Measured with worst ER, BER less than 1E-12 and PRBS 231-1 at 10.3125Gbps.
Mechanical Dimensions
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
