Product Details:
|
| Type: | 2-fiber 1G CSFP | Data Rate(Gbps): | 1.244Gbps/1.244Gbps |
|---|---|---|---|
| TX Wavelength: | 2 X 1310nm | RX Wavelength: | 2 X 1550nm |
| Component: | DFB+PIN | Distance: | 40km |
| Temperature: | Commercial | Keywords: | 1.244G CSFP Fiber Transceiver |
| Highlight: | 1000BASE CSFP,TX1550 CSFP,Dual BIDI Transceiver |
||

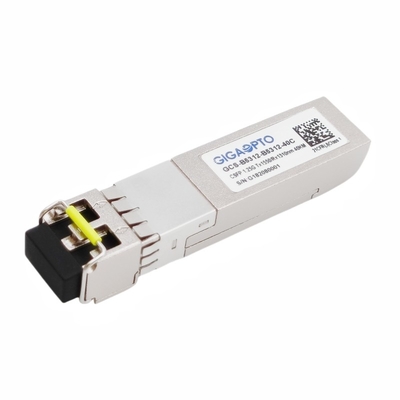

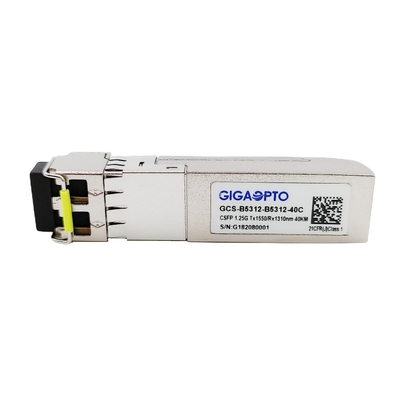

1000BASE CSFP Dual BIDI 40km TX1550 RX1310 SM Transceiver LC DOM
Description
This GCS-B5312-B5312-40C CSFP Transceiver is high performance and high stability product operating in standard temperature,provides 1000Base-BX 2-Channel throughput up to 40km over single-mode fiber (SMF) using a nominal wavelength of 1550nmTx/1310nmRx via an LC connector.
For each Channel, The transceiver consists of three sections: a 1550nm DFB laser transmitter, a 1310nm PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA) and SFF-8472.For further information, please refer to SFP MSA
Specifications
| Product Series | Dual 1000Base CSFP Transceiver | P/N | GCS-B5312-B5312-40C |
| Package | Compact SFP | Type | 2 Fiber BIDI |
| Data-Rate (Gbps) | 1.244G/1.244G | Lane Count | 2x ( Tx/Rx ) |
| Reach | 40km | Connector | LC/UPC duplex |
| TX Wavelength | 2x 1550nm | RX Wavelength | 2x 1310nm |
| Power Voltage | +3.3V (typical) | Power Consumption | ≤ 1.3W |
| TX Type | DFB | RX Type | PIN |
| TX Output Power | -5 ~ 0dBm | RX Sensitivity | < -25dBm |
| Extinction Ratio | > 9dB | Saturation | > 0dBm |
| Power-budget (dB) | 20dB | DDM | Build-in |
| Environment | Operating: standard 0 to 70°C | Warranty | 36-month |
| Storage: -40°C to 85°C | MTBF | 1,000,000Hours | |
| Protocols | 1000BASE Ethernet ,MSA Compliant , SFF-8472 | ||
Features
Application
Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1530 | 1550 | 1570 | nm | |||
| Spectral Width (-20dB) | σ | 1 | nm | |||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Average Output Power | Pout | -5 | 0 | dBm | 1 | |||
| Extinction Ratio | ER | 9 | dB | |||||
| Optical Rise/Fall Time (20%~80%) | tr/tf | 0.26 | ns | |||||
| Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
|
TX Disable |
Disable | 2.0 | Vcc | V | ||||
| Enable | 0 | 0.8 | V | |||||
|
TX Fault |
Fault | 2.0 | Vcc | V | ||||
| Normal | 0 | 0.8 | V | |||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1290 | 1310 | 1330 | nm | |||
| Receiver Sensitivity | -25 | dBm | 3 | |||||
| Receiver Overload | 0 | dBm | 3 | |||||
| LOS De-Assert | LOSD | -27 | dBm | |||||
| LOS Assert | LOSA | -40 | dBm | |||||
| LOS Hysteresis | 1 | 4 | dB | |||||
| Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
|
LOS |
High | 2.0 | Vcc | V | ||||
| Low | 0.8 | V | ||||||
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 223-1 test pattern @1244Mbps, BER ≤1×10-12.
4. Internally AC-coupled.
