Product Details:
|
| Type: | 2-fiber 1G CSFP | Data Rate(Gbps): | 1.244Gbps/1.244Gbps |
|---|---|---|---|
| TX Wavelength: | 2 X 1310nm | RX Wavelength: | 2 X 1550nm |
| Component: | DFB+PIN | Distance: | 40km |
| Temperature: | Commercial | Keywords: | CSFP Module |
| Highlight: | 2 Fiber Compact SFP,1.244Gbps Compact SFP,DOM SFP |
||

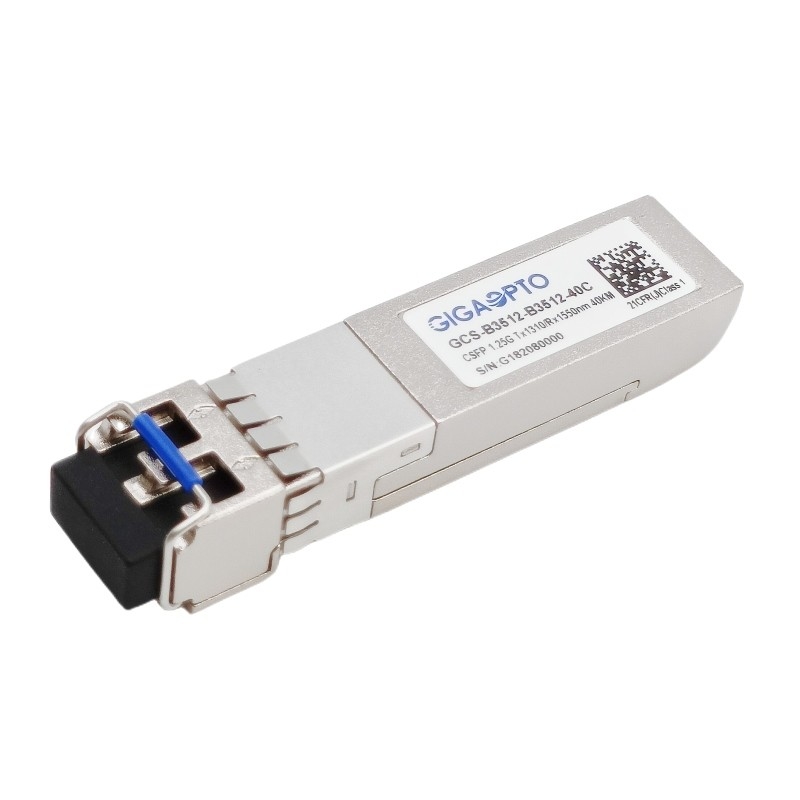

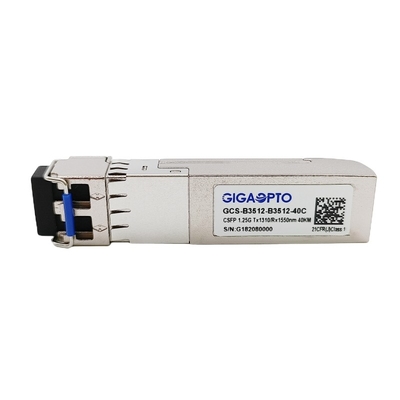

2 Fiber 1.244Gbps Compact SFP BIDI 1310nm/1550nm SMF 40km LC DOM
Description
This 1000Base 2-channel CSFP BIDI Transceivers are high performance, cost effective modules supporting 1.244Gbps and 40km transmission distance with SMF.It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C series bus specified in the MSA SFF-8472.
The transceiver consists of 2-channel Bi-directional Optical Transceiver unit with five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, type of laser (the DFB laser) and the PIN photo-detector.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access. Conventional SFP will function when plugged into a C-SFP socket, at the same time no damage to C-SFP and host board if C-SFP module is plugged into a conventional SFP socket
The compact SFP (CSFP) transceiver is fully compliant to compact Small Form-Factor Pluggable (CSFP) MSA option 2 and SFF-8472.
Specifications
| Product Series | 2 Channel CSFP Transceiver | P/N | GCS-B3512-B3512-40C |
| Form Factor | Compact SFP | Type | dual BiDi EX |
| Data Rate (Gbps) | 1.244G/1.244G | Lane Count | 2x ( Tx/Rx ) |
| Max Cable Length | 40km | Connector/Polish | LC/UPC duplex |
| TX Wavelength | 2x 1310nm | RX Wavelength | 2x 1550nm |
| Power Voltage | +3.3V (typical) | Power Consumption | ≤ 1.3W |
| LD Type | DFB | PD Type | PIN |
| TX Average Power | -5 ~ 0dBm | RX Sensitivity | < -25dBm |
| Extinction Ratio | > 9dB | Overload | > 0dBm |
| Power-budget (dB) | 20dB | Digital Diagnostics | Support |
| Temperature | Operating: Commercial 0 to 70°C | Warranty | 36-month |
| Storage: -40°C to 85°C | MTBF | 1,000,000Hours | |
| Compliance | Gigabit Ethernet, MSA Compliant | ||
Features
Application
Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1300 | 1310 | 1320 | nm | |||
| Spectral Width (-20dB) | σ | 1 | nm | |||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Average Output Power | Pout | -5 | 0 | dBm | 1 | |||
| Extinction Ratio | ER | 9 | dB | |||||
| Optical Rise/Fall Time (20%~80%) | tr/tf | 0.26 | ns | |||||
| Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
|
TX Disable |
Disable | 2.0 | Vcc | V | ||||
| Enable | 0 | 0.8 | V | |||||
|
TX Fault |
Fault | 2.0 | Vcc | V | ||||
| Normal | 0 | 0.8 | V | |||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1530 | 1550 | 1570 | nm | |||
| Receiver Sensitivity | -25 | dBm | 3 | |||||
| Receiver Overload | 0 | dBm | 3 | |||||
| LOS De-Assert | LOSD | -27 | dBm | |||||
| LOS Assert | LOSA | -40 | dBm | |||||
| LOS Hysteresis | 1 | 4 | dB | |||||
| Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
|
LOS |
High | 2.0 | Vcc | V | ||||
| Low | 0.8 | V | ||||||
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 223-1 test pattern @1244Mbps, BER ≤1×10-12.
4. Internally AC-coupled.
