Product Details:
|
| Type: | 1000Base CWDM CSFP | Data-rate(Gbps): | 1.244Gbps/1.244Gbps |
|---|---|---|---|
| Wavelength(Ch1/Ch2): | TX_C51/RX_C47 | Component: | DFB+PIN |
| Distance: | 80km | DOM/DDM: | Supported |
| Keywords: | 1000Base CWDM CSFP Transceiver | ||
| Highlight: | CWDM CSFP,TX C51 CSFP,1000BASE CSFP |
||

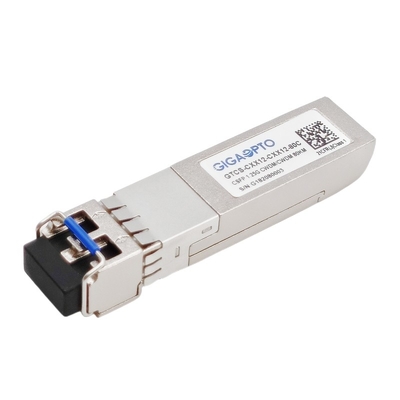

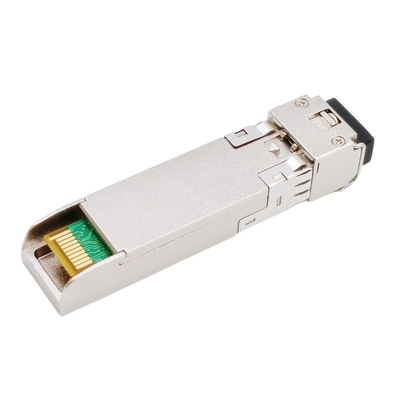

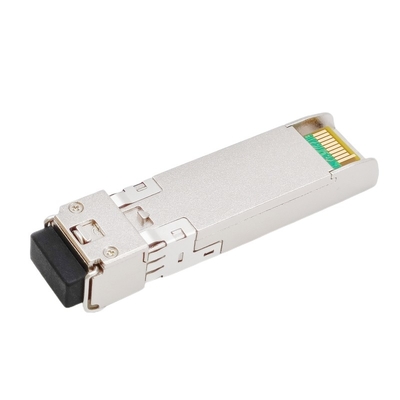

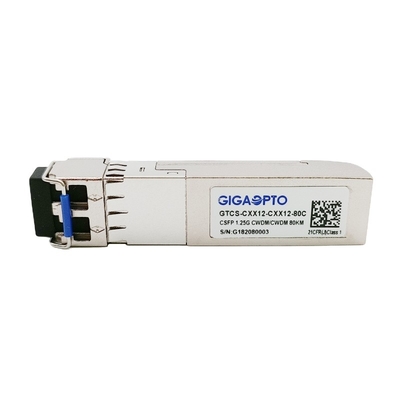

1000BASE CWDM CSFP Dual BIDI 80km TX_C51 RX_C47 SM Transceiver LC DOM
Description
This CWDM CSFP Transceiver is high performance and high stability product operating in standard temperature,provides 1000Base 2-Channel throughput up to 80km over single-mode fiber (SMF) using a nominal wavelength of TX_C51/RX_C47 via LC connector.
For each Channel, The transceiver consists of three sections: a highly reliable CWDM DFB laser transmitter, a high quality PIN photodetector integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA) and SFF-8472.
Specifications
| Product Series | CWDM CSFP | Part Number | GCS-CXX12-CXX12-80C |
| Package | CSFP | Type | CWDM BiDi |
| Data Rate (Gbps) | 2x 1.244Gbps | Lane Count | 2x ( Tx/Rx ) |
| Reach | 80km | Interface | Duplex LC |
| TX Wavelength | 2x CWDM CH51 | RX Wavelength | 2x CWDM CH47 |
| Power Voltage | +3.3V (typical) | Power Consumption | ≤ 1.8W |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Output Power | 0 ~ 5dBm | RX Sensitivity | < -32dBm |
| Extinction Ratio | > 9dB | Overload | > -8dBm |
| Power-budget (dB) | 32dB | DDMI | With |
| Temperature | Operating: Commercial 0 to 70°C | Warranty | 3 years |
| Storage: -40°C to 85°C | MTBF | 1,000,000Hours | |
| Protocols | 1000BASE Ethernet, MSA Compliant , SFF-8472 | ||
Features
Application
