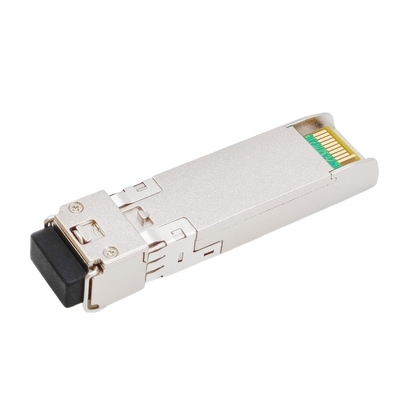

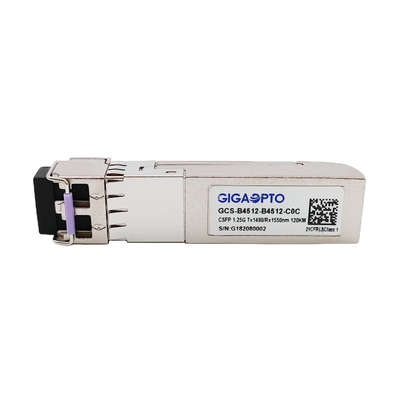

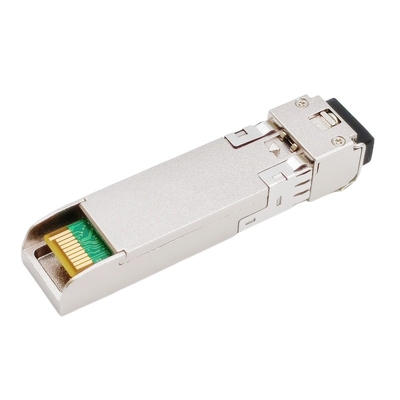

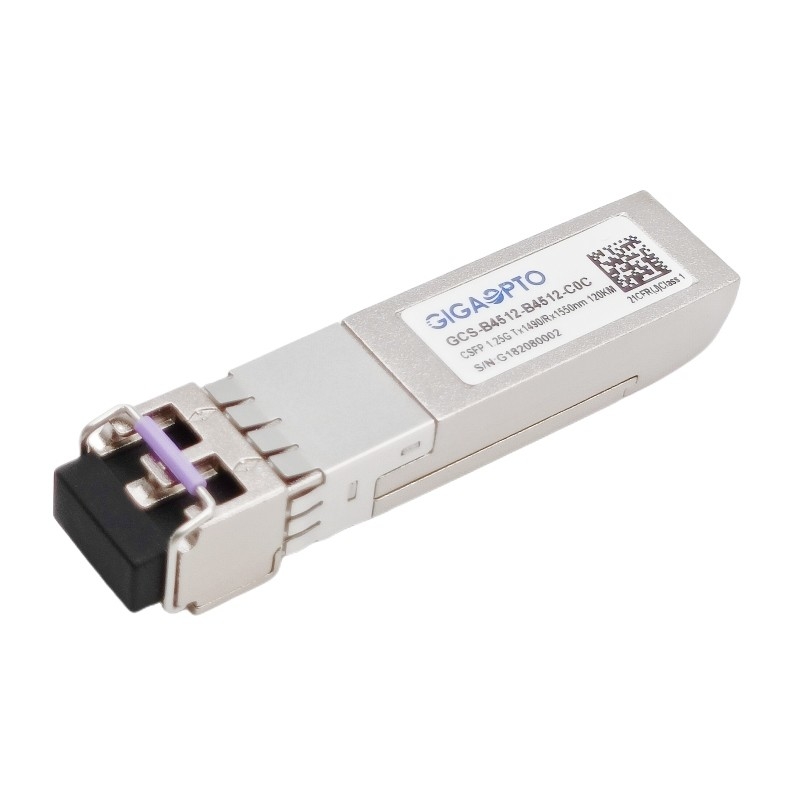

1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM LC DOM Transceiver

1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM LC DOM Transceiver
1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM LC DOM Transceiver 1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM LC DOM Transceiver 1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM LC DOM Transceiver 1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM LC DOM Transceiver

Large Image :  1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM LC DOM Transceiver

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Gigaopto
Certification: CE,FCC,RoHs, TUV,UL
Model Number: GCS-B4512-B4512-C0C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Single Package,10 or 20pcs per Tray,30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 work days
Payment Terms: T/T, L/C
Supply Ability: 50,000pcs/month

1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM LC DOM Transceiver

Description
Type: 2-fiber 1000Base CSFP Data-rate(Gbps): Dual 1.244Gbps
TX Wavelength: 2 X 1490nm RX Wavelength: 2 X 1550nm
Component: DFB+PIN Distance: 120km
DOM/DDM: Supported Keywords: 1000Base CSFP Transceiver
High Light:

TX1490 CSFP

,

RX1550 CSFP

,

LC DOM Transceiver

1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM Transceiver LC DOM





Description



This GCS-B4512-B4512-C0C CSFP Transceiver is high performance and high stability product operating in standard temperature,provides 1000Base-BX 2-Channel throughput up to 120km over single-mode fiber (SMF) using a nominal wavelength of 1490nmTx/1550nmRx via an LC connector.

For each Channel, The transceiver consists of three sections: a highly reliable 1490nm DFB laser transmitter, a high quality 1550nm PIN photodetector integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA) and SFF-8472.





Specifications



Product Series Two lanes 1000Base CSFP Part Number GCS-B4512-B4512-C0C
Package Compact SFP Type Dual BiDi
Data Rate (Gbps) 2x 1.244G Lane Count 2x ( Tx/Rx )
Reach 120km Interface LC/UPC duplex
TX Wavelength 2x 1490nm RX Wavelength 2x 1550nm
Power Voltage +3.3V (typical) Power Consumption ≤ 1.3W
TX Type DFB RX Type PIN
TX Output Power -2 ~ 5dBm RX Sensitivity < -32dBm
Extinction Ratio > 9dB Saturation > 0dBm
Power-budget (dB) 30dB DDMI With
Temperature Operating: Commercial 0 to 70°C Warranty 3 years
Storage: -40°C to 85°C MTBF 1,000,000Hours
Protocols 1000BASE Ethernet, MSA Compliant , SFF-8472




Features



  • 2-Fiber Bi-Directional CSFP Optical Transceiver
  • Up to 1.244Gbps Bi-directional Data Links each lane
  • Compliant with CSFP MSA 2.0 (Option2)
  • IEEE802.3ah 100BASE-BX, 1000BASE-BX, SONET OC-3 / SDH STM-1, Compliant
  • Compliant with Digital Diagnostic Monitor Interface SFF-8472
  • Duplex LC Connector
  • 1490nm DFB laser and 1550nm PIN photodiode
  • Up to 120km on 9/125µm SMF
  • AC/AC Coupling according to MSA
  • Single +3.3 V Power Supply
  • RoHS Compliant
  • Class 1 Laser International Safety Standard IEC 60825 Compliant



Application



  • SONET/SDH Equipment Interconnect
  • Fast Ethernet
  • Switch to Switch interface
  • Point to Point FTTH Application
  • Other optical transmission systems



Package Outline

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)



1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM LC DOM Transceiver 0
