Product Details:
|
| Product Type: | 2 Fiber 100Base CSFP BIDI EX | Data Rate(Ch1/Ch2): | 155Mbps/155Mbps |
|---|---|---|---|
| Wavelength(Ch1/Ch2): | TX_1310nm/RX_1550nm | Transmission: | 40km |
| Component: | FP+PIN | Temperature: | Commercial |
| Connector: | Dual LC | Keywords: | 2 Fiber BIDI EX Transceiver |
| Highlight: | RX 1550nm CSFP,TX 1310nm CSFP,100Base CSFP |
||

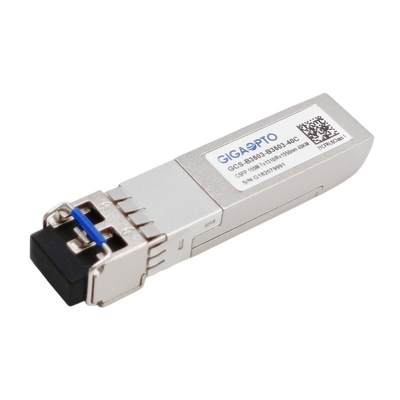

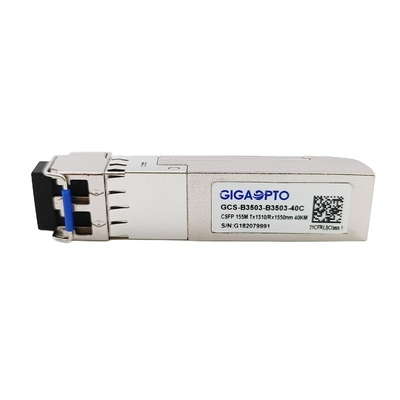

155Mbps Compact Bi-Di SFP Transceiver 1310nm TX 1550nm RX 40km
Description
This 2 Fiber 100Base CSFP transceiver is an ultra-low power (power consumption < 1.3W), high performance and high stability product operating in commercial temperature, supporting 155Mbps and 40km transmission distance with SMF cable.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA) and SFF-8472.
Features
| Product Series | 2 Fiber 100Base CSFP | Part No. | GCS-B3503-B3503-40C |
| Package | CSFP | Type | 2x BIDI per SFP port |
| Data-Rate (Ch1/Ch2) | 155Mbps/155Mbps | Lane Count | 2x (Tx/Rx) |
| Transmission | 40km @ G652 SMF | Connector | LC Duplex |
| Wavelength-Ch1 | TX_1310nm/RX_1550nm | Wavelength-Ch2 | TX_1310nm/RX_1550nm |
| Power Voltage | +3.3V | Power Dissipation | ≤ 1.3W |
| Transmitter Type | FP Laser | Receiver Type | PIN Photodiode |
| Transmitter Power | -1 ~ -4dBm | Receiver Sensitivity | < -39dBm |
| Extinction Ratio | > 9dB | Overload | > -3dBm |
| Optical Budget (dB) | 38dB | Digital Diagnostic | Support |
| Environment | Operating: 0 to 70°C | Warranty | 3-year |
| Storage: -40°C to 85°C | Unit Weight | 25gram | |
| Protocols | Fast Ethernet, MSA Compliant | ||
Features
Application
Electrical and Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |||
| Spectral Width (RMS) | ∆λ | 4 | nm | |||||
| Average Output Power | Pout | -1 | -4 | dBm | 1 | |||
| Extinction Ratio | ER | 9 | dB | |||||
| Optical Rise/Fall Time (20%~80%) | tr/tf | 0.26 | ns | |||||
| Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
|
TX Disable |
Disable | 2.0 | Vcc | V | ||||
| Enable | 0 | 0.8 | V | |||||
|
TX Fault |
Fault | 2.0 | Vcc | V | ||||
| Normal | 0 | 0.8 | V | |||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1530 | 1570 | nm | ||||
| Receiver Sensitivity | -35 | dBm | 3 | |||||
| Receiver Overload | -3 | dBm | 3 | |||||
| LOS De-Assert | LOSD | -35 | dBm | |||||
| LOS Assert | LOSA | -45 | dBm | |||||
| LOS Hysteresis | 1 | 4 | dB | |||||
| Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
|
LOS |
High | 2.0 | Vcc | V | ||||
| Low | 0.8 | V | ||||||
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 223-1 test pattern @155Mbps, BER ≤1×10-12.
4. Internally AC-coupled.
