Product Details:
|
| Product Type: | 155Mbps CSFP EX | Bandwidth(Ch1/Ch2): | 155Mbps/155Mbps |
|---|---|---|---|
| Wavelength(Ch1/Ch2)): | TX_1490nm/RX_1310nm | Fiber Distance: | 40km |
| LD/PD Type: | DFB+PIN | Temperature: | Standard 0 To 70°C |
| Connector: | LC | Keywords: | CSFP BIDI Optical Transceiver Module |
| Highlight: | 2x 155Mbps Compact SFP,LC Compact SFP,1310nm 1490nm sfp |
||

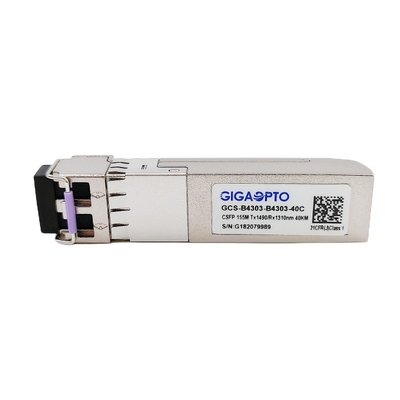

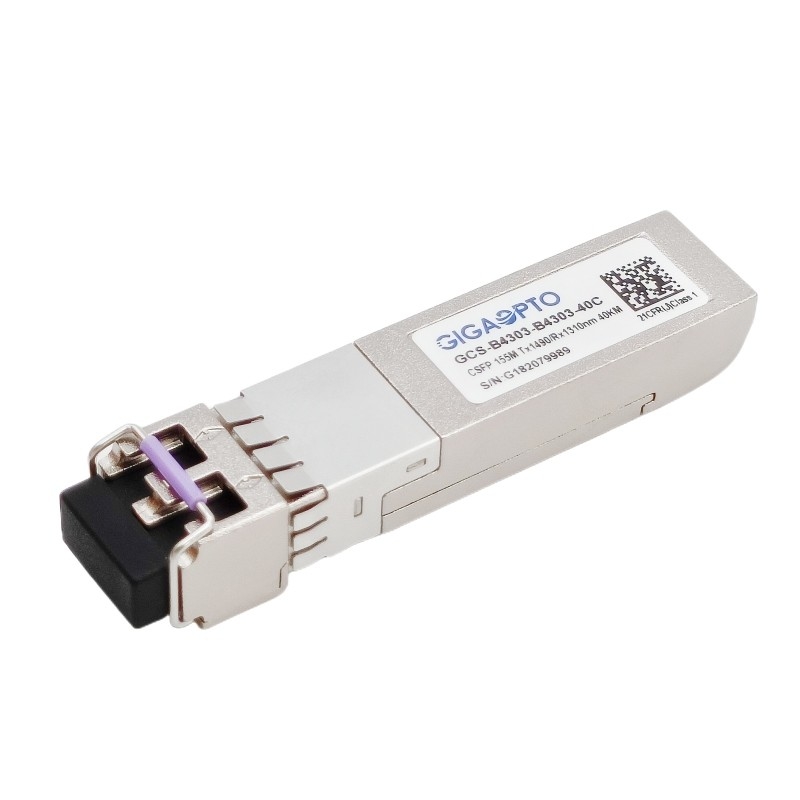

2x 155Mbps TX_1490nm/RX_1310nm CSFP BIDI Transceiver LC 40km DOM
Description
The GCS-B4303-B4303-40C compact small form-factor pluggable (CSFP) is a version of SFP with the same mechanical form factor allowing two independent bidirectional channels per port.
It include two BOSA in one SFP port, each BOSA consists of a high quality 1490nm DFB laser transmitter and high sensitivity 1310nm PIN photodiode, providing 155Mbps throughput with 40km link transmission.
It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C interface specified in the SFP MSA SFF-8472,real time monitors of temperature, supply voltage, laser bias current, laser average output power and receiving output power are provided.
This two-fiber CSFP transceiver is fully compliant to compact Small Form-Factor Pluggable (CSFP) MSA option 2 and CE/RoHS certified.
Features
| Product Series | 2x 155Mbps CSFP BIDI | Part No. | GCS-B4303-B4303-40C |
| Package | CSFP | Type | 2x BIDI per SFP port |
| Data-Rate (Ch1/Ch2) | 155Mbps/155Mbps | Lane Count | 2x (Tx/Rx) |
| Transmission | 40km @ G652 SMF | Connector | LC Duplex |
| Wavelength-Ch1 | TX_1490nm/RX_1310nm | Wavelength-Ch2 | TX_1490nm/RX_1310nm |
| Power Voltage | +3.3V | Power Dissipation | ≤ 1.3W |
| Transmitter Type | DFB Laser | Receiver Type | PIN/TIA Photodiode |
| Transmitter Power | -1 ~ -4dBm | Receiver Sensitivity | < -39dBm |
| Extinction Ratio | > 9dB | Overload | > -3dBm |
| Optical Budget (dB) | 38dB | Digital Diagnostic | Support |
| Environment | Operating: 0 to 70°C | Warranty | 3-year |
| Storage: -40°C to 85°C | Unit Weight | 25gram | |
| Protocols | Fast Ethernet, MSA Compliant | ||
Features
Application
Electrical and Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1470 | 1490 | 1510 | nm | |||
| Spectral Width (-20dB) | σ | 1 | nm | |||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Average Output Power | Pout | -4 | -1 | dBm | 1 | |||
| Extinction Ratio | ER | 9 | dB | |||||
| Optical Rise/Fall Time (20%~80%) | tr/tf | 0.26 | ns | |||||
| Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
|
TX Disable |
Disable | 2.0 | Vcc | V | ||||
| Enable | 0 | 0.8 | V | |||||
|
TX Fault |
Fault | 2.0 | Vcc | V | ||||
| Normal | 0 | 0.8 | V | |||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1290 | 1330 | nm | ||||
| Receiver Sensitivity | -35 | dBm | 3 | |||||
| Receiver Overload | -3 | dBm | 3 | |||||
| LOS De-Assert | LOSD | -35 | dBm | |||||
| LOS Assert | LOSA | -45 | dBm | |||||
| LOS Hysteresis | 1 | 4 | dB | |||||
| Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
|
LOS |
High | 2.0 | Vcc | V | ||||
| Low | 0.8 | V | ||||||
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 223-1 test pattern @155Mbps, BER ≤1×10-12.
4. Internally AC-coupled.
