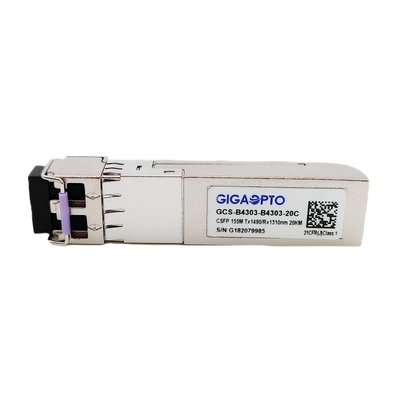

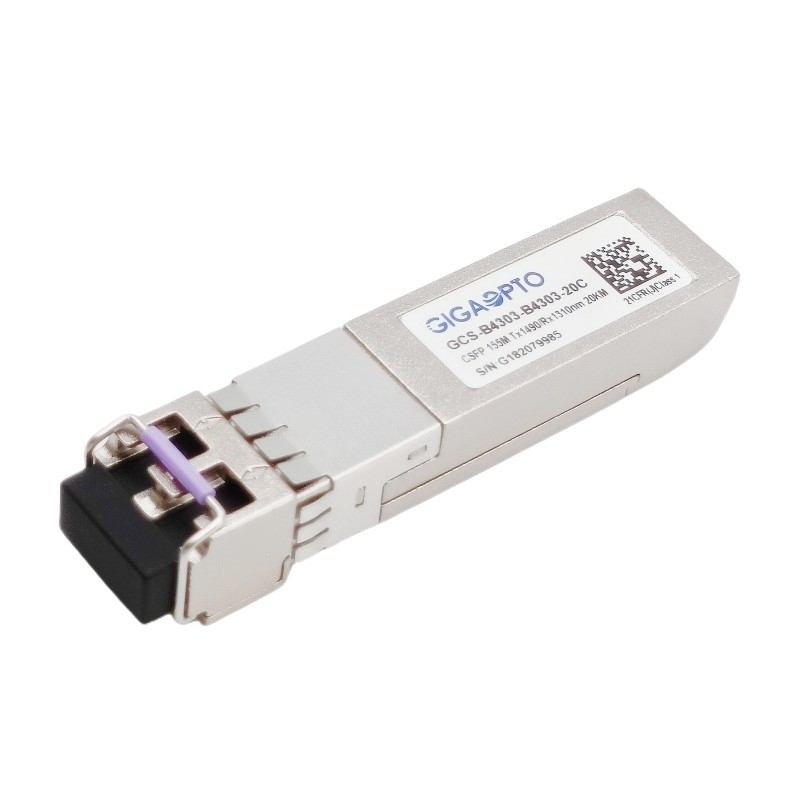

2 Fiber 100BASE BIDI CSFP Fiber Transceiver TX1490nm RX1310nm LC 20km DOM

Description
Product Type: 100BASE CSFP Data Rate: 155Mbps/155Mbps
TX Wavelength: 2 X 1490nm RX Wavelength: 2 X 1310nm
Transmission: 20km Media: SMF
DOM/DDM: Supported Keywords: 2 Fiber 100BASE BIDI CSFP Optical Fiber Transceiver
High Light:

2 Fiber sfp fiber transceiver

,

20km sfp fiber transceiver

,

DOM fibre channel sfp

2 Fiber 100BASE BIDI CSFP Optical Fiber Transceiver TX1490nmRX1310nm LC 20km DOM





Description



The 100Base CSFP Transceiver is specifically designed for the high performance integrated two bi-directional links on a duplex single-mode fiber, each link supports 155Mbps throughput and 20km transmission with LC interface.

It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C interface specified in the SFP MSA SFF-8472.

This CSFP LX Transceiver is fully compliant to compact Small Form-Factor Pluggable (CSFP) MSA option 2 and CE/RoHS certified.





Specifications



Product Series 100Base CSFP Part Number GCS-B4303-B4303-20C
Package CSFP Type 2 BOSA per port
Data Rate (Mbps) 155Mbps/155Mbps Lane Count 2x (Tx/Rx)
Link Distance 20km Connector LC duplex
TX Wavelength 2x 1490nm RX Wavelength 2x 1310nm
Voltage +3.3V (typical) Power Consumption ≤ 1.3W
Transmitter Type/Lane DFB Laser Receiver Type/Lane PIN
TX Output Power -14 ~ -8dBm RX Sensitivity < -32dBm
Extinction Ratio > 9dB RX Overload > -3dBm
Power Budget (dB) 18dB DDM/DOM Support
Temperature Operating: 0 to 70°C Warranty 3-year
Storage: -40°C to 85°C Unit Weight 25gram
Protocols Fast Ethernet, MSA Compliant





Features



  • 2 Fiber dual Bi-directional CSFP transceiver
  • Support 155Mbps bi-directional data links
  • 1490nm DFB laser and 1310nm PIN photodiode
  • A max transmission 20km on 9/125µm SMF
  • Duplex LC Connector
  • +3.3V single power supply
  • Compliant with CSFP MSA Option 2 and SFF-8472
  • Compatible with SONET OC-3 system
  • Operating case temperature:0 to +70°C (Commercial)/ -20 ~ +80°C (Extended)/ -40°C to +85°C (Industrial)
  • RoHS Compliant and lead free
  • Class 1 Laser International Safety Standard IEC 60825 Compliant





Application



  • SONET OC-3 system
  • Fast Ethernet
  • Switch to Switch interface
  • Point to Point FTTH Application
  • Other optical transmission systems





Electrical and Optical Characteristics



Parameter Symbol Min Typical Max Unit Notes
Transmitter
Centre Wavelength λc 1470 1490 1510 nm
Spectral Width (-20dB) σ     1 nm
Side Mode Suppression Ratio SMSR 30     dB
Average Output Power Pout -13   -9 dBm 1
Extinction Ratio ER 9     dB
Optical Rise/Fall Time (20%~80%) tr/tf     0.26 ns
Data Input Swing Differential VIN 400   1800 mV 2
Input Differential Impedance ZIN 90 100 110 Ω

TX Disable

Disable   2.0   Vcc V
Enable   0   0.8 V

TX Fault

Fault   2.0   Vcc V
Normal   0   0.8 V
Receiver
Centre Wavelength λc 1290   1330 nm
Receiver Sensitivity       -32 dBm 3
Receiver Overload   -3     dBm 3
LOS De-Assert LOSD     -32 dBm
LOS Assert LOSA -45     dBm
LOS Hysteresis   1   4 dB
Data Output Swing Differential Vout 400   1800 mV 4

LOS

High 2.0   Vcc V
Low     0.8 V

Notes:

1. The optical power is launched into SMF.

2. PECL input, internally AC-coupled and terminated.

3. Measured with a PRBS 27-1 test pattern @155Mbps, BER ≤1×10-12.

4. Internally AC-coupled.
