Product Details:
|
| Form Type: | CSFP | Data Rate: | 1.25Gb/s |
|---|---|---|---|
| Extinction Ratio: | >8.2dB | Centre Wavelength: | 1310nm-TX/1490nm-RX |
| Connector: | LC Duplex | Maximum Power Consumption: | 1.5W |
| Max Transmission Distance: | 10km (6.2 Miles) | ||
| Highlight: | 2 Channel CSFP Optical Transceiver,BiDi CSFP Optical Transceiver,BiDi CSFP Optical Transceiver Module |
||

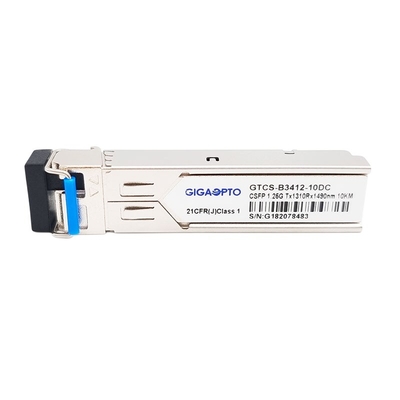

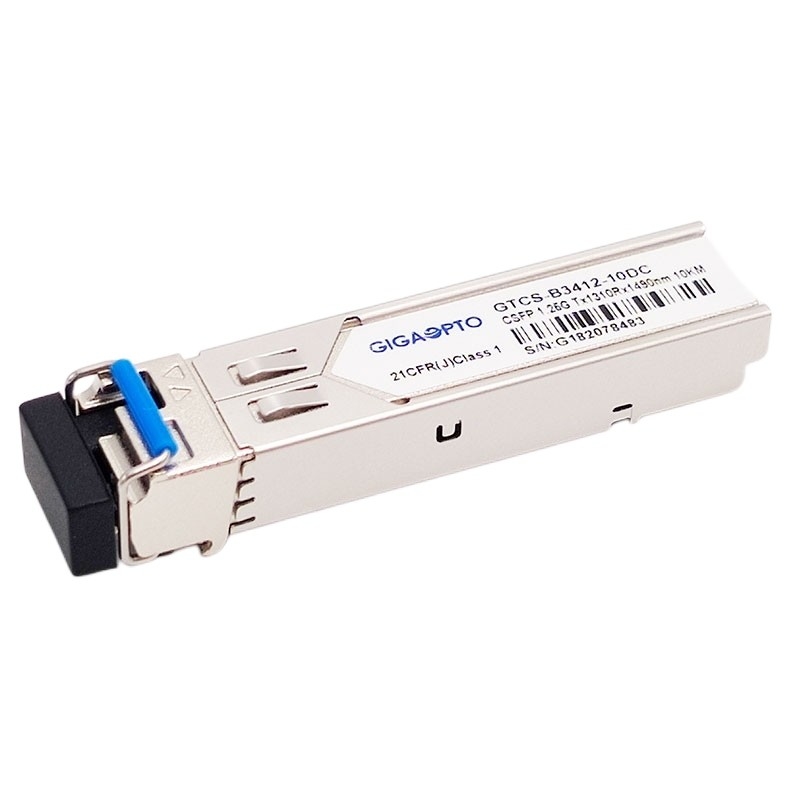

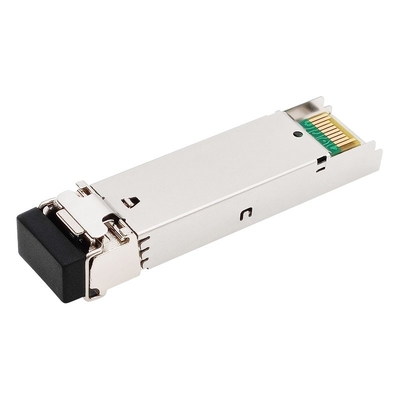

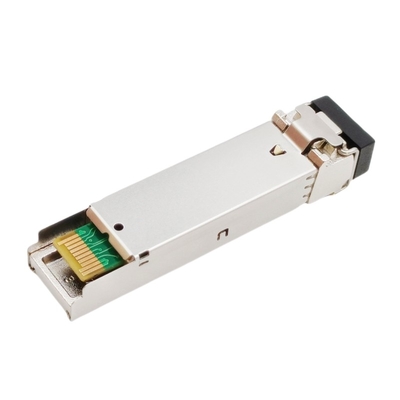

Cisco Compatible 2-Channel 1000BASE-BX BiDi CSFP TX1310nm/RX1490nm 10km Transceiver Module SMF Duplex LC DOM
Description
The GIGAOPTO's GCS-B3412-B3412-10C transceiver is a high performance and cost-effective Compact SFP (CSFP) Bi-directional optical transceiver, supporting up to1.25Gbps and 10km transmission distance with single-mode fiber (SMF).
Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. It is designed to meet Gigabit Ethernet and 1X Fiber channel application.
The transceivers are compatible with the Compact Small Form-Factor Pluggable(CSFP) Multi-Source Agreement (MSA) option 2, and SFF-8472. All modules satisfy class I laser safety requirements.
Specification
| Compatible Brand | CISCO | Compatible PN | GLC-2BX-U |
| Form Factor | Compact SFP | Data Link | 1000Mb/s |
| Optical Connector | Dual LC | Reach | 10km (6.2 miles) |
| DDM/DOM | YES | Fiber Mode | Single Mode Fiber |
| Wavelength | 1310nm-TX/1490nm-RX | Ambient Temperature | Commercial 0 to 70°C |
| Maximum Power | 1.5W | Supply Voltage | 3.30V |
| Bit Error Rate | 10^-12 | Supply Current | 300mA |
| Laser Type | FP BiDi | PD Type | PIN |
| Optical Output Power | -9 ~ -3dBm | RX Sens. | <-23dBm |
| ER | >8.2dB | RX Overload | >-3dBm |
| Total System Budget | >14dB | Power Consumption | 1.5W (Max) |
| Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | ||
Features
Commercial: 0°C~70°C (32 to 158°F)
Industrial: -40°C~85°C (-40 to 185°F)
Application
Ordering Information
| P/N | Package | Speed | Wavelength | Distance | LD Type | Connector |
| GTS-B3412-10DC | 1000BASE-BX-U BiDi SFP | 1250Mb/s | Tx1310nm/Rx1490nm | 10km | FP | Single LC |
| GTS-B4312-10DC | 1000BASE-BX-D BiDi SFP | 1250Mb/s | Tx1490nm/Rx1310nm | 10km | DFB | Single LC |
| GTS-B3512-10DC | 1000BASE-BX BiDi SFP | 1250Mb/s | Tx1310nm/Rx1550nm | 10km | FP | Single LC |
| GTS-B5312-10DC | 1000BASE-BX BiDi SFP | 1250Mb/s | Tx1550nm/Rx1310nm | 10km | DFB | Single LC |
| GTCS-B3412-10DC | 2-Channel BiDi CSFP 1000BASE-BX | 1250Mb/s | Tx1310nm/Rx1490nm | 10km | FP | Dual LC |
| GTCS-B4312-10DC | 2-Channel 1000BASE-BX-D BiDi CSFP | 1250Mb/s | Tx1490nm/Rx1310nm | 10km | DFB | Dual LC |
