Product Details:
|
| Product Category: | PON SFP Module | Type: | XGS-PON ONU |
|---|---|---|---|
| Form Type: | SFP+ | Data Rate: | 9.953Gbps |
| Wavelength: | 1270nm_Tx/1577nm_Rx | Connector: | Simplex SC/APC |
| Components: | DFB+APD | DDM: | Supported |
| Keywords: | XGS-PON ONU SFP+ Transceiver Module SC/APC | ||
| High Light: | 9.953Gbps XGS PON ONU,1270nm XGS PON ONU,1577nm XGSPON ONU |
||

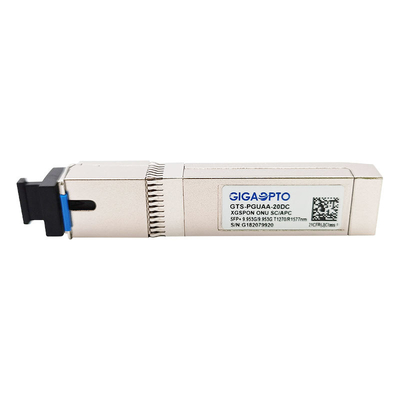

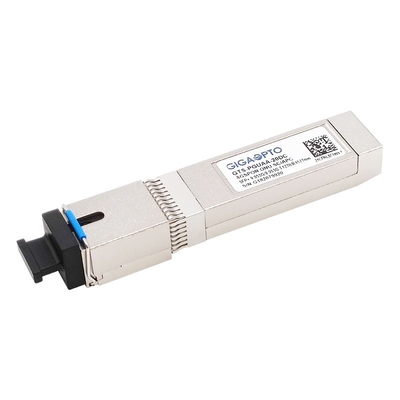

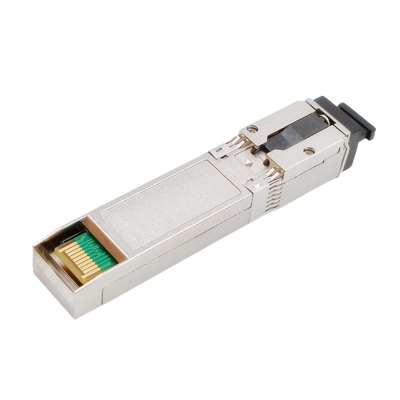

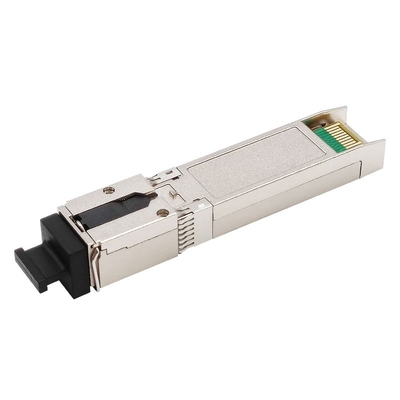

XGS-PON ONU Optical Transceiver SFP+ Module
Compliant with ITU-TG.9807, SC/APC Receptacle
Single fiber bi-directional Transceiver
Symmetric 9.953Gb/s upstream & downstream bit-rate
RoHS,CE,FCC,REACH
Description
This GTS-PGUAA-20DC_XGSPON ONU SFP+ SC APC optical transceiver module is designed for XGS-PON transmission link up to 20km via a simplex SC/APC connector. The module incorporates symmetric 9.953Gbps 1270nm burst-mode transmitter and 9.953Gbps 1577nm continuous-mode receiver.
An integrated WDM coupler can separate 1270nm input light and 1577nm output light. The metallic package guarantees excellent EMI and EMC characteristics, which totally complies with international relevant standards.
It adopts SFP+ Package. Power supply is single +3.3 Voltage. It is fully compliant with SFP+ MSA, SFF-8472 and RoHS standards.
Specification
| Product Name | XGS-PON ONU SFP Module | Packaging | SFP+ |
| Type | XGS-PON ONU | Data Rate (Gb/s) | 9.953G |
| Cable Distance | 20km | Interface/Polish | Simplex -SC/APC |
| Product Category | PON SFP | DDMI | Yes |
| Compatibility | Generic | Operating Case Temperature | -5 to 70°C |
| Warranty Time | 3-Year | -40~85°C | |
| Data Rate TX | 9.953Gbps | Data Rate RX | 9.953Gbps |
| Wavelength (TX) | 1270nm | Wavelength (RX) | 1577nm |
| Power Consumption | <1.65 W | Total Supply Current | <450mA |
| Transmitter | DFB Laser | Receiver | APD |
| TX Power (dBm) | 4~9dBm | Rx Sensitivity | < -28.5dBm |
| Extinction Ratio | >6.0dB | Overload | >-8dBm |
| Protocols | SFF-8074i , ITU-T G.9807, SFF 8472, RoHS | ||
Ordering Information
| Part. No | Specifications | |||||
| Package | Data Rate | P_DOWN | LOS/SD | Temp. | Reach | |
| (Gbps) | (Pin 9) | (Pin 8) | (°C) | (km) | ||
| GTS-PGUAA-20DCJ | SFP+ | Tx 9.953 / Rx 9.953 | With | SD | -5~70 | 20 |
| GTS-PGUAA-20DCK | SFP+ | Tx 9.953 / Rx 9.953 | Without | SD | -5~70 | 20 |
| GTS-PGUAA-20DIJ | SFP+ | Tx 9.953 / Rx 9.953 | With | SD | -40~85 | 20 |
| GTS-PGUAA-20DIK | SFP+ | Tx 9.953 / Rx 9.953 | Without | SD | -40~85 | 20 |
| GTS-PGUAA-20DCM | SFP+ | Tx 9.953 / Rx 9.953 | With | LOS | -5~70 | 20 |
| GTS-PGUAA-20DCN | SFP+ | Tx 9.953 / Rx 9.953 | Without | LOS | -5~70 | 20 |
| GTS-PGUAA-20DIM | SFP+ | Tx 9.953 / Rx 9.953 | With | LOS | -40~85 | 20 |
| GTS-PGUAA-20DIN | SFP+ | Tx 9.953 / Rx 9.953 | Without | LOS | -40~85 | 20 |
Features
Application
Standards
Package Outline
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
