Generic Class B+ ONU GPON SFP Transceiver Module SMF 1310nm 1490nm SC APC optical connector DDM

Class B+ GPON ONU SFP Transceiver SC APC receptacle

1.244Gb/s Upstream and 2.488Gbps Downstream

RoHS-6 Compliant

Description

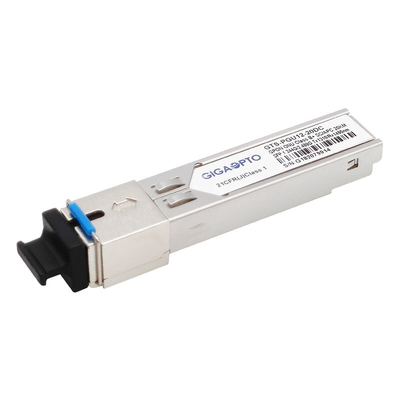

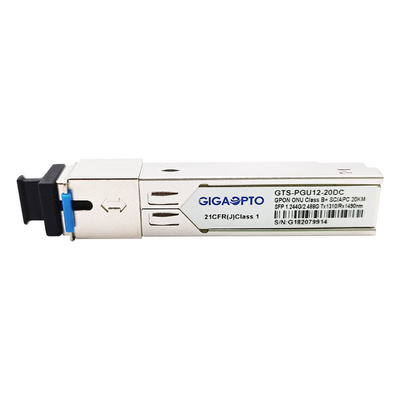

Gigaopto’s high performance GPON ONU Class B+ SFP transceiver module GTS-PGU12-20DC is designed for P2MP FTTx applications. It can fully support the Class B+ ODN application specified by the ITU-T G.984.2 standard and ITU-T G.984.2 Amendent-2006.

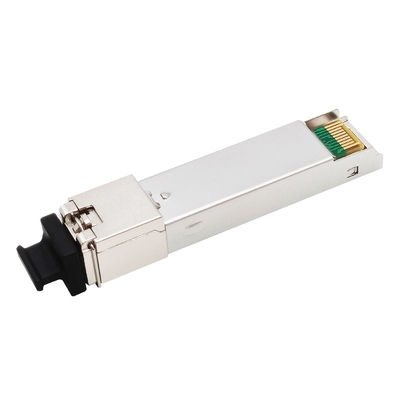

It is supplied in the SFP package with a single SC/APC receptacle connector.

The module consists of a 1310nm un-cooled DFB Laser, an InGaAs preamplifier and a WDM filter in a high-integrated optical sub-assembly. It transmits 1.244Gbps at 1310nm in burst mode and receives 2.488Gbps at 1490nm in continuous mode.

Digital diagnostic functions are available, as specified in SFF-8472.

Specification

Ordering Information

Features

• SFP Package With SC Receptacle
• 1.244Gbps, 1310nm Burst Mode Transmitter
• 2.488Gbps, 1490nm Continuous Mode Receiver
• Un-cooled DFB Laser and APD High Sensitivity Detector
• Class 1 FDA and IEC60825-1 Laser Safety Compliant
• Operating Case Temperature: Standard: 0℃~+70℃/ Industry: -40℃~+85℃
• Compliant with ITU-T G.984.2 and G.984.2 Amendent-2006
• Compliant with SFP MSA Specification

Application

• Gigabit Passive Optical Networks (GPON)
• FTTx

Standards

• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with ITU-T 984.2
• Complies with FCC 47 CFR Part 15, Class B
• Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
• Complies with SFF-8472
• Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.
• Compatible with Telcordia GR-468-CORE

Package Outline

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)

For more GPON ONU SFP Transceivers, please refer to the following form

GPON ONU Transceiver Series (Data RateTX-1.244G/RX-2.488G, Wavelength:TX1310nm/RX1490nm, Class B+, DFB+APD)
