Product Details:
|
| Form Factor: | SFF 2x10 | Data Rate: | Tx1.244/Rx2.488 |
|---|---|---|---|
| Wavelength: | 1310nm-TX/1490nm-RX | Distance: | Class B+ 20km |
| Media: | SMF | Connector: | SC Receptacle |
| DDM: | Supported | Operating Temperature: | 0°C ~ 70°C |
| Warranty: | 3 Years | ||
| Highlight: | gpon sfp module,gpon transceiver,transceiver gpon |
||
Product Description

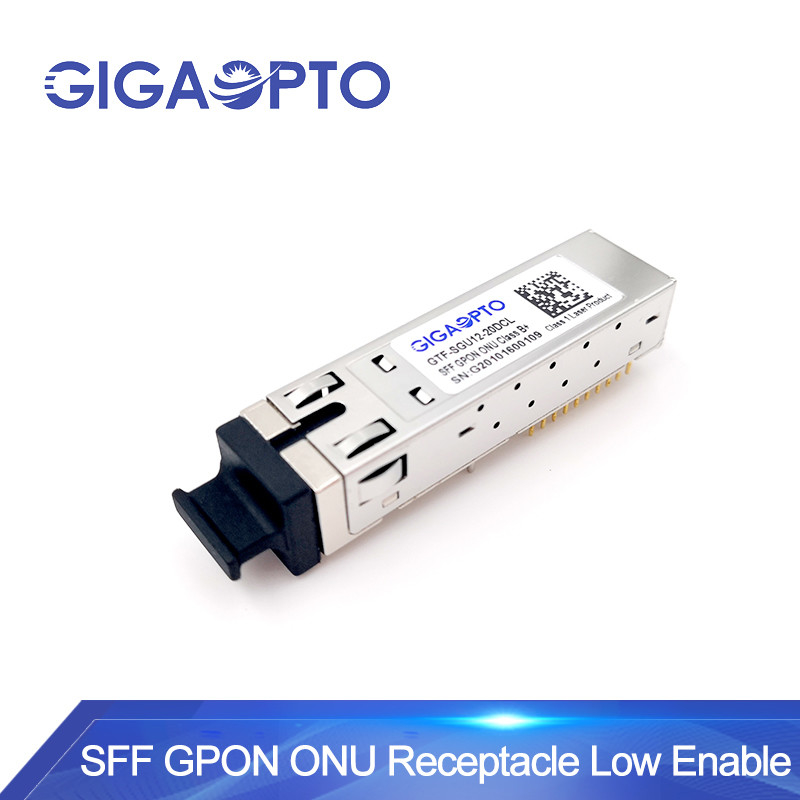

Gigaopto’s GTF-SGU12-20DCL is a high-performance and cost-effective SFF GPON ONU transceiver designed for Passive Optical Network (GPON) application, 2.488Gbps downstream and 1.244Gbps upstream. It is supplied in SFF 2×10 pin package with SC receptacle connector.This transceiver is Class 1 laser product complies with the IEC 60825-1 and IEC 60825-2, and it is ROHS6 compliant.
Features
Applications
Gigabit-capable Passive Optical Networks (GPON)
Specifications
| Connector | SC Receptacle | Transmitter Type | |
| Receiver Type | TX Power | 0.5 ~ 5 dBm | |
| Receiver Sensitivity | < -28 dBm | Power Consumption | |
| Receiver Overload | > -8 dBm | Extinction Ratio | > 10 dB |
