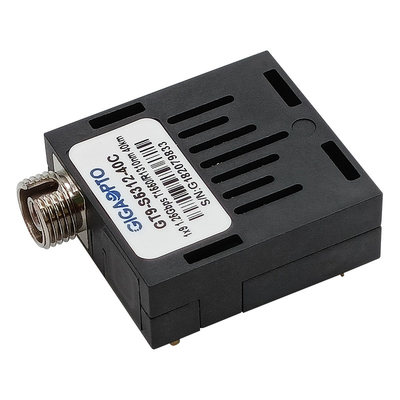

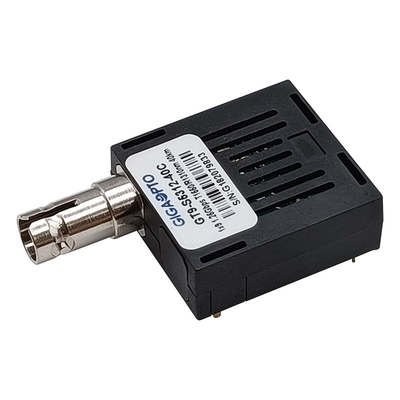

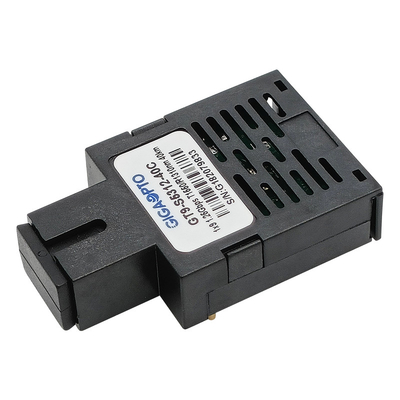

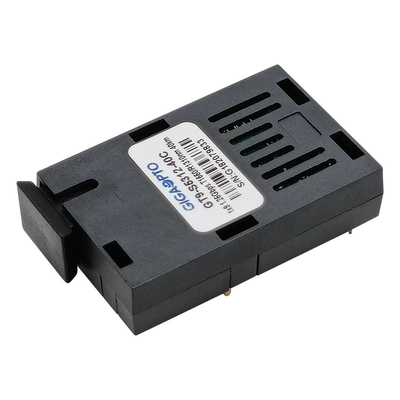

1.25Gbps 1x9 Transceiver Module BiDi TX1550nm RX1310nm SMF 40km SC FC ST Transceiver Module

1.25Gbps 1x9 TX1550nm/RX1310nm 40km SMF ST/FC/SC PECL/LVPECL Transceiver Module

Description

The GIGAOPTO's GT9-S5312-40x series are high-performance and cost-effective single mode Bi-Directional (BiDi) 1×9 optical transceivers for serial optical communication applications such as Gigabit Ethernet and 1x Fibre Channel that require data rates of 1.25Gbps. This module is designed for single-mode fiber and operates at wavelengths of 1550nm on transmitter side and 1310nm on receiver side.The transmitter section uses a DFB laser diode and is a class 1 laser compliant according to International Safety StandardIEC-825. The receiver section uses an integrated 1310nm detector preamplifier (IDP) mounted in an optical headerand a limiting post-amplifier IC. A PECL logic interfacesimplifies interface to external circuitry.

Specification

Features

• Single fiber Bi-Directional transceiver
• Industry standard 1x9 footprint
• Data rates up to 1250 Mbps
• 1550nm DFB laser transmitter and 1310nm InGaAs PIN receiver
• Distance up to 40km
• Single SC/ST/FC connector
• Differential PECL inputs and outputs
• Single power supply 3.3/5.0 V
• Compatible with solder and aqueous wash processes
• Class 1 laser product complies with EN 60825-1
• Compliant with RoHS6
• Operating case temperature: Standard: 0℃~+70℃, Industrial: -40℃~+85℃

Application

• 1G Fiber Channel, Gigabit Ethernet
• Switch to Switch Interface, Switched Backplane Applications
• Broadband aggregation and wireless infrastructure
• Gigabit Ethernet Media Converters

Ordering Information
