Product Details:
|
| Form Type: | 1x9 | Data Transfer Rate: | 0 To 1 Mbps |
|---|---|---|---|
| Transmission Distance: | 2km | Center Wavelength: | 850nm |
| Transmitter: | VCSEL Laser | Interface: | Duplex SC, ST, FC |
| Fiber Type: | Multi Mode Fiber | Keywords: | 1x9 0-1Mbps 850nm, 1x9 2km Optical Transceiver, 1x9 Multi Mode |
| High Light: | 1Mbps 1x9 Optical Transceiver,850nm 1x9 Optical Transceiver,2km Transceiver Module |
||

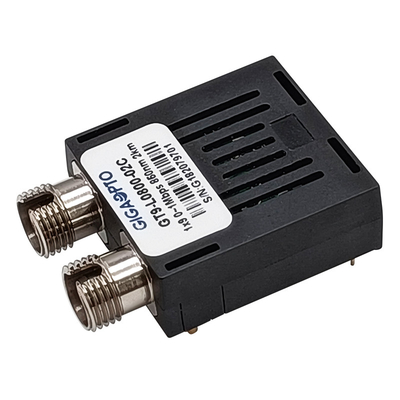

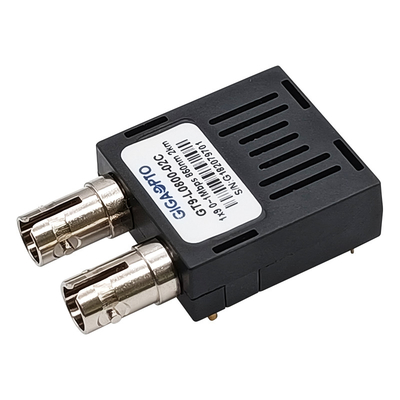

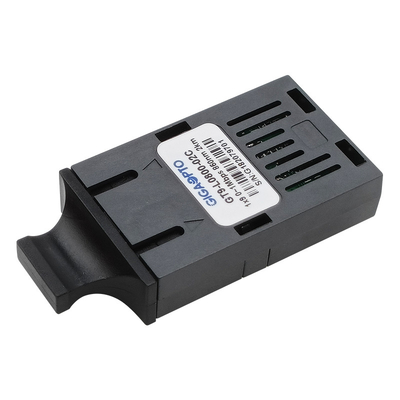

1x9 0 to 1Mbps Multi-Mode 850nm 2km Duplex SC/ST/FC TTL/LVTTL 0~1M Transceiver Module
Description
The GIGAOPTO's GT9-L0800-02x series transceivers are high-performance, cost-effective modules with a TTL data interface that supports a data rate of 0~1Mbps and a 2km transmission distance over a multi-mode fiber cable (MMF), designed for duplex optical data communications. This series of fiber optic transceivers are supplied in the industry-standard 1×9 SIP package style with a duplex SC/FC/ST type connector interface. It is suitable for photoelectric conversion equipment such as RS232/ RS485 in power control and industrial control below 1Mb/s.
Specification
| Form Factor | 1x9 | Data Rate | 0~1Mbps |
| Connector | Duplex SC, ST, FC | Reach | 2km |
| DDM/DOM | No | Media | Single- Mode (SMF) |
| Warranty | 3 years | Operating Temperature | Commercial 0 to 70°C |
| Wavelength | 850nm | Power Supply Voltage | 3.3V or 5V |
| Storage Temperature | -40 to 85°C | Power Supply Current | 100mA |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -12 ~ -6 dBm | RX Sensitivity | <-16dBm |
| Extinction Ratio | >9dB | RX Overload | >-12dBm |
| Protocols | IEC-60825 FDA, RoHS | ||
Features
Application
Ordering Information
| Part Number | Description |
| GT9-L0800-02C | 1x9 Transceiver Module, 0-1M, LVTTL/TTL SC, Multi Mode 850nm, 2km, 3.3V/5V, 0 to 70°C |
| GT9-L0800-02CF | 1x9 Transceiver Module, 0-1M, LVTTL/TTL FC, Multi Mode 850nm, 2km, 3.3V/5V, 0 to 70°C |
| GT9-L0800-02CT | 1x9 Transceiver Module, 0-1M, LVTTL/TTL ST, Multi Mode 850nm, 2km, 3.3V/5V, 0 to 70°C |
| GT9-L0800-02I | 1x9 Transceiver Module, 0-1M, LVTTL/TTL SC, Multi Mode 850nm, 2km, 3.3V/5V, -40 to 85°C |
| GT9-L0800-02IF | 1x9 Transceiver Module, 0-1M, LVTTL/TTL FC, Multi Mode 850nm, 2km, 3.3V/5V, -40 to 85°C |
| GT9-L0800-02IT | 1x9 Transceiver Module, 0-1M, LVTTL/TTL ST, Multi Mode 850nm, 2km, 3.3V/5V, -40 to 85°C |
| GT9-L0800-02C3 | 1x9 Transceiver Module, 0-1M, LVTTL SC, Multi Mode 850nm, 2km, 3.3V, 0 to 70°C |
| GT9-L0800-02CF3 | 1x9 Transceiver Module, 0-1M, LVTTL FC, Multi Mode 850nm, 2km, 3.3V, 0 to 70°C |
| GT9-L0800-02CT3 | 1x9 Transceiver Module, 0-1M, LVTTL ST, Multi Mode 850nm, 2km, 3.3V, 0 to 70°C |
| GT9-L0800-02I3 | 1x9 Transceiver Module, 0-1M, LVTTL SC, Multi Mode 850nm, 2km,, 3.3V,-40 to 85°C |
| GT9-L0800-02IF3 | 1x9 Transceiver Module, 0-1M, LVTTL FC, Multi Mode 850nm, 2km,, 3.3V,-40 to 85°C |
| GT9-L0800-02IT3 | 1x9 Transceiver Module, 0-1M, LVTTL ST, Multi Mode 850nm, 2km, 3.3V, -40 to 85°C |
| GT9-L0800-02C5 | 1x9 Transceiver Module, 0-1M, TTL SC, Multi Mode 850nm, 2km, 5V, 0 to 70°C |
| GT9-L0800-02CF5 | 1x9 Transceiver Module, 0-1M, TTL FC, Multi Mode 850nm, 2km, 5V, 0 to 70°C |
| GT9-L0800-02CT5 | 1x9 Transceiver Module, 0-1M, TTL ST, Multi Mode 850nm, 2km, 5V, 0 to 70°C |
| GT9-L0800-02I5 | 1x9 Transceiver Module, 0-1M, TTL SC, Multi Mode 850nm, 2km, 5V, -40 to 85°C |
| GT9-L0800-02IF5 | 1x9 Transceiver Module, 0-1M, TTL FC, Multi Mode 850nm, 2km, 5V, -40 to 85°C |
| GT9-L0800-02IT5 | 1x9 Transceiver Module, 0-1M, TTL ST, Multi Mode 850nm, 2km, 5V, -40 to 85°C |
