Product Details:
|
| Form Factor: | 1x9 | Speed: | 1.25Gbps |
|---|---|---|---|
| Max Link Length: | 20km | Centre Wavelength: | TX1550nm/RX1310nm |
| Optical Components: | DFB | Connector: | Simplex SC, ST, FC |
| Media Type: | SMF | Keywords: | 1x9 BiDi 1.25Gbps Transceiver, 1.25G BiDi TX1550nm RX1310nm |
| High Light: | ST 1x9 Optical Transceiver,FC 1x9 Optical Transceiver,TX1550nm 1x9 Optical Transceiver |
||

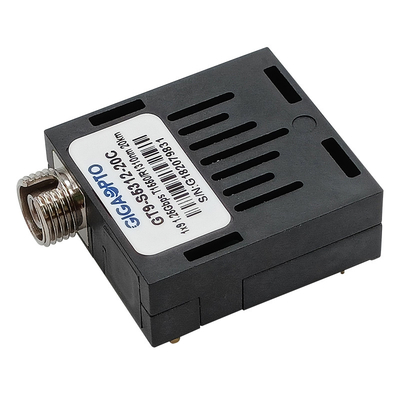

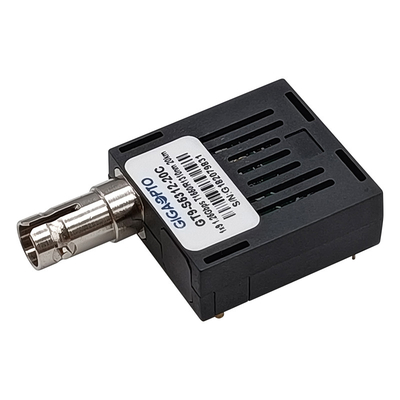

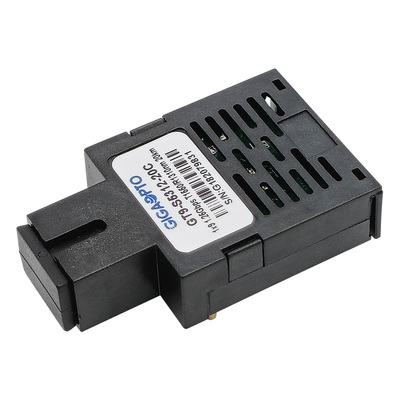

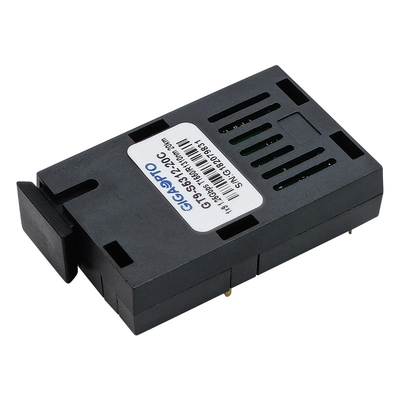

1.25Gbps 1x9 BIDI Transceiver Module TX1550nm/RX1310nm SMF 20km SC/ST/FC LVPECL PECL
Description
The GIGAOPTO's GT9-S5312-20x series single mode transceivers are low power, high performance modules for bi-directional serial optical data communications of data rate below 1.25Gbps such Gigabit Ethernet and Fibre Channel.
The transceiver provides a 20km transmission distance over a single strand of single-mode fiber. The transmitter incorporates a highly reliable 1550nm DFB (or 1310nm FP) Laser and a driver circuit which converts PECL data to light signal. The receiver incorporates an efficient 1310nm (or 1550nm) PIN photo-diode converting the light signal into an electrical current which is amplified and regenerated into PECL compatible data.
Specification
| Form Factor | 1x9 | Data Rate | 1250Mb/s |
| Optical Connector | SC,FC,ST | Max Distance | 20km |
| DDM/DOM | No | Fibre Type | Single Mode Fiber |
| Warranty | 3 years | Temperature Range |
Commercial 0 to 70°C (32 to 158°F) |
| Center Wavelength | TX 1310nm RX 1550nm | Power Supply Voltage | 3.3V or 5V |
| Storage Temperature | -40 to 85°C (-40 to 185°F) | Current | 300mA |
| Transmitter Type | DFB | PD Type | PIN |
| Launched Power | -9 ~ -3 dBm | Sensitivity | <-22dBm |
| ER | >9dB | Receiver Overload | >-3dBm |
| Protocols | Bellcore GR-253-CORE, ITU-T G.957 | ||
Features
B Type:1550nm DFB TX/1310nm PIN Rx
Application
Ordering Information
| Part Number | Description |
| GT9-S5312-20C | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, SC, SMF, 20km, 3.3V/5V, 0 to 70°C |
| GT9-S5312-20CF | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, FC, SMF, 20km, 3.3V/5V, 0 to 70°C |
| GT9-S5312-20CT | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, ST, SMF, 20km, 3.3V/5V, 0 to 70°C |
| GT9-S5312-20I | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, SC, SMF, 20km, 3.3V/5V, -40 to 85°C |
| GT9-S5312-20IF | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, FC, SMF, 20km, 3.3V/5V, -40 to 85°C |
| GT9-S5312-20IT | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, ST, SMF, 20km, 3.3V/5V, -40 to 85°C |
| GT9-S5312-20C3 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, SC, SMF, 20km, 3.3V, 0 to 70°C |
| GT9-S5312-20CF3 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, FC, SMF, 20km, 3.3V, 0 to 70°C |
| GT9-S5312-20CT3 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, ST, SMF, 20km, 3.3V, 0 to 70°C |
| GT9-S5312-20I3 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, SC, SMF, 20km, 3.3V,-40 to 85°C |
| GT9-S5312-20IF3 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, FC, SMF, 20km, 3.3V,-40 to 85°C |
| GT9-S5312-20IT3 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, ST, SMF, 20km, 3.3V, -40 to 85°C |
| GT9-S5312-20C5 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, SC, SMF, 20km, 5V, 0 to 70°C |
| GT9-S5312-20CF5 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, FC, SMF, 20km, 5V, 0 to 70°C |
| GT9-S5312-20CT5 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, ST, SMF, 20km, 5V, 0 to 70°C |
| GT9-S5312-20I5 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, SC, SMF, 20km, 5V, -40 to 85°C |
| GT9-S5312-20IF5 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, FC, SMF, 20km, 5V, -40 to 85°C |
| GT9-S5312-20IT5 | 1x9 Transceiver Module, 1.25G BiDi TX1550nm/RX1310nm, ST, SMF, 20km, 5V, -40 to 85°C |
