155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module

155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module

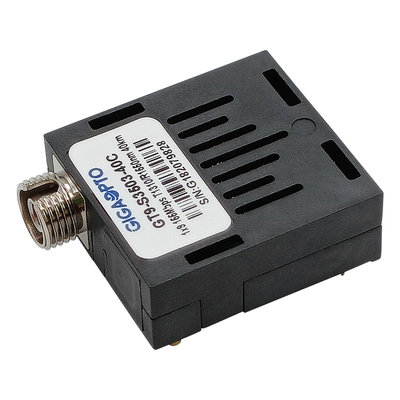

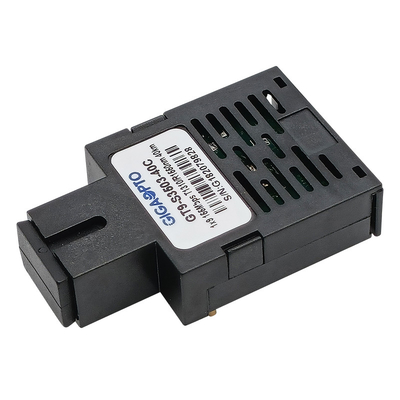

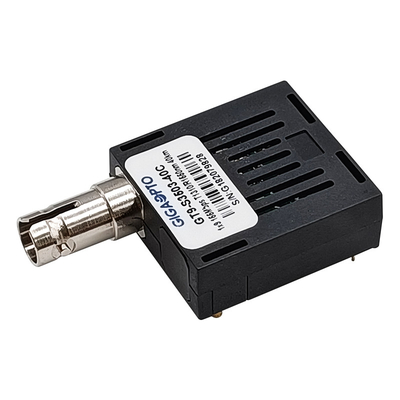

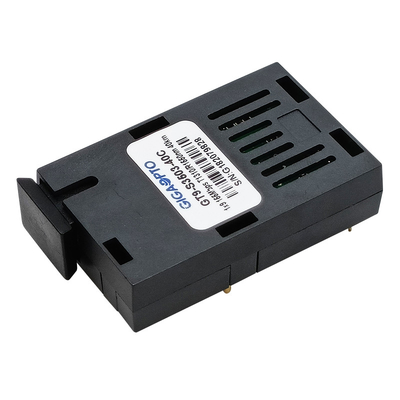

155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module 155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module 155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module 155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module

Large Image :  155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module

Product Details:
Place of Origin: China
Brand Name: GIGAOPTO
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GT9-S3503-40C
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100kpcs per month

155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module

Description
Form Type: 1x9 BiDi Max Data Rate: 155Mb/s
Max Cable Distance: 40km Centre Wavelength: TX1310nm/RX1550nm
Voltage: 3.3V Or 5V Connector: SC, ST, FC
Fiber Type: Single Mode (SMF) Keywords: 1x9 155Mbps Module, BIDI TX1310nm RX1550nm BiDi Optical Transceiver, 155M 1x9 40km 1310nm-TX/R1550nm-RX BiDi Optical Module
High Light:

RX1550nm 1x9 Transceiver Module

,

BIDI 1x9 Transceiver Module

,

TX1310nm single mode transceiver

155Mbps 1x9 TX1310nm/RX1550nm BIDI 40km SMF LVPECL PECL SC/ST/FC Transceiver Module





Description



The GIGAOPTO's GT9-S3503-40x series transceivers are high performance, cost effective modules compliant with Gigabit Ethernet and Standard of IEEE-802.3. The transceiver supports data rate of 155Mbps and 40km transmission distance with single mode fiber (SMF), operating at the normal wavelength of Tx1310nm and Rx1550nm. The transmitter section incorporates an advanced FP and driver IC with temperature compensation and automatic power control function. The receiver section incorporates an efficient InGaAs/InP PIN photodiode and transimpedance with AGC for wide dynamic range.



The 1×9 BiDi Transceivers are suitable for Fast Ethernet, SDH STM-1 L-1.1, SONET OC-3 LR-1 and ATM designs at the data rate of 155 Mb/s.





Specification



Product Package 1x9 BiDi Speed 155Mbps
Interface Single SC,FC,ST Transmission Distance 40km
DDM No Fibre Type Single Mode
Warranty 3 years Ambient Temperature 0 to 70°C (32 to 158°F)
Center Wavelength TX1310nm/RX1550nm Power Supply Voltage 3.3V or 5V
Soldering Temperature <260°C Supply Current 250mA
Transmitter Type FP Receiver PIN photo-detector
Average Output Power -10 to -3dBm RX Sens. <-35dBm
ER >10dB Saturation >-3dBm
Protocols ITU-T G.957, STM-1/OC-3, RoHS





Features



  • 1×9 Package with SC/FC/ST Receptacle
  • Up to 155Mb/s data links
  • Single fiber bi-directional transceiver
  • A type: 1310nmTx/1550nmRx

B type: 1550nmTx/1310nmRx

  • Up to 40km transmission distance with single mode fiber
  • Single +3.3V or +5V power supply
  • Standard PECL or LVPECL data output with signal detect indicator
  • Compatible with solder and aqueous wash processes
  • Eye safety designed to meet Laser Class 1, Compliant with IEC 60825-1
  • Compatible with RoHS6
  • Operating Temperature 0℃~70 ℃ or -40℃~85℃





Application



  • SONET / SDH
  • Gigabit Ethernet
  • Fiber Channel
  • Fast Ethernet 100 Mb/s Links
  • Digital video transmission system





Ordering Information



Part Number Description
GT9-S3503-40C 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 3.3V/5V, 0 to 70°C
GT9-S3503-40CF 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 3.3V/5V, 0 to 70°C
GT9-S3503-40CT 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 3.3V/5V, 0 to 70°C
GT9-S3503-40I 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 3.3V/5V, -40 to 85°C
GT9-S3503-40IF 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 3.3V/5V, -40 to 85°C
GT9-S3503-40IT 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 3.3V/5V, -40 to 85°C
GT9-S3503-40C3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 3.3V, 0 to 70°C
GT9-S3503-40CF3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 3.3V, 0 to 70°C
GT9-S3503-40CT3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 3.3V, 0 to 70°C
GT9-S3503-40I3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 3.3V,-40 to 85°C
GT9-S3503-40IF3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 3.3V,-40 to 85°C
GT9-S3503-40IT3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 3.3V, -40 to 85°C
GT9-S3503-40C5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 5V, 0 to 70°C
GT9-S3503-40CF5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 5V, 0 to 70°C
GT9-S3503-40CT5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 5V, 0 to 70°C
GT9-S3503-40I5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 5V, -40 to 85°C
GT9-S3503-40IF5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 5V, -40 to 85°C
GT9-S3503-40IT5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 5V, -40 to 85°C





Pin Definition



155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module 0





Typical Application Circuit



155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module 1





Package Outline



155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module 2
