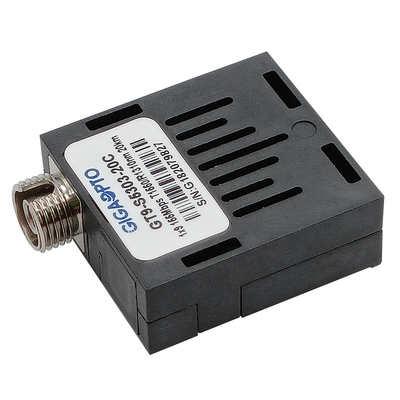

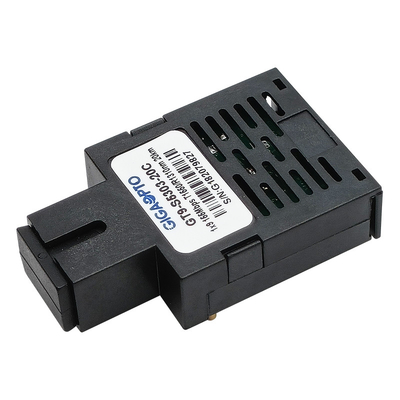

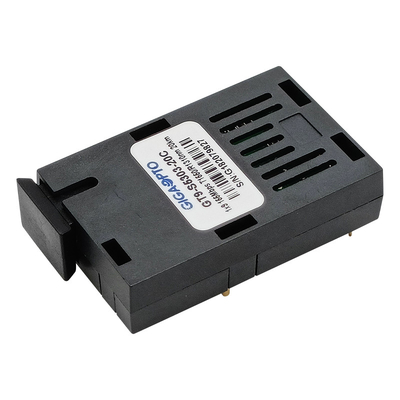

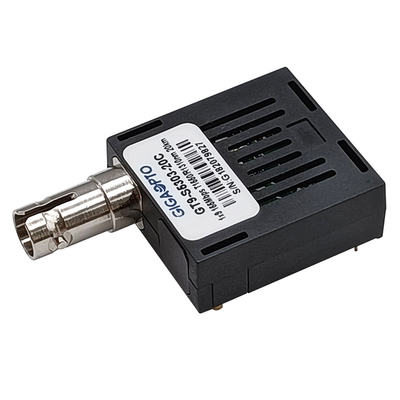

155Mbps 1x9 Transceiver BIDI SMF TX1550nm RX1310nm 20km Single SC FC ST Transceiver Module

155Mbps TX1550nm/RX1310nm 20km 1x9 BIDI SMF SC/ST/FC LVPECL PECL Transceiver Module

Description

The GIGAOPTO's GT9-S5303-20x series 1x9 single-mode transceivers are low power, high performance modules for bi-directional serial optical data communications such as ATM 155Mb/s and Fast Ethernet. The BiDi 1×9 transceivers provide 20km transmission distance over a single strand of single-mode fiber using 1550nm transmitter and 1310nm receiver.

The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

A PECL logic interface simplifies interface to the external circuitry.

Specification

Features

• Multi-sourced 1 x 9 pin packaged
• Up to 155Mb/s data links
• Single SC, ST, or FC connector
• A type: 1310nmFP Tx/1550nmRx

B type: 1550nmFP Tx/1310nmRx

• Up to 20 km over single-mode fiber
• SC /FC/ST single receptacle
• +3.3V /+5V single power supply
• PECL compatible data input/output interface
• Signal detect indicator (PECL version)
• Wave solderable and washable with process plug inserted
• Class 1 FDA and IEC60825-1 laser safety compliant
• RoHS6 Compliant
• Ambient operating temperature:

Commercial: 0 to 70°C (32 to 158°F)

Industrial:-40 to 85°C (-40 to 185°F)

Application

• ATM 155 Mbps Links
• SONET/SDH Equipment Interconnect
• Fast Ethernet 100 Mb/s Links
• Fast Ethernet media converters
