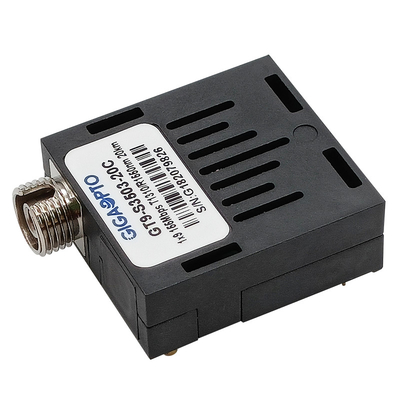

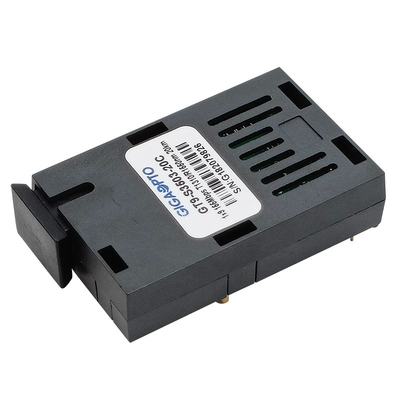

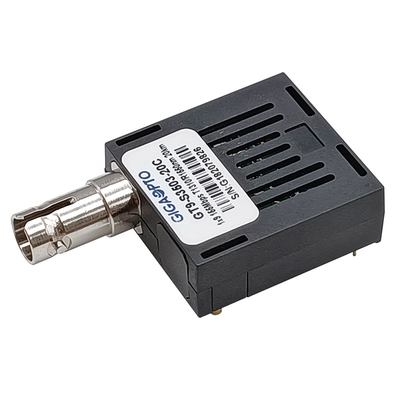

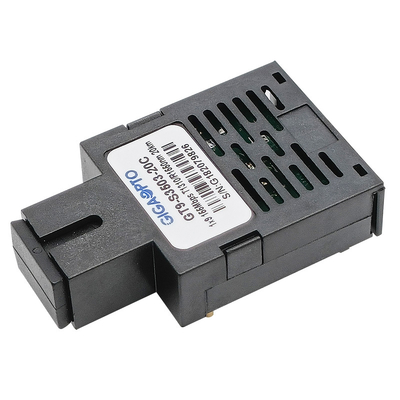

Single Fiber 1x9 Transceiver 155Mbps BIDI TX1310nm RX1550nm 20km SMF Transceiver Module Single SC FC ST

Description
Product Package: 1x9 BiDi Data Transfer Rate: 155Mbps
Max Cable Distance: 20km Centre Wavelength: 1310nm-TX/1550nm-RX
Laser Type: FP Connector: SC, ST, FC
Fiber Type: Single Mode Fiber Keywords: 1x9 BiDi 155Mbps, T1310 R1550 BiDi Optical Module
High Light:

20km 1x9 Transceiver

,

155Mbps 1x9 Transceiver

,

RX1550nm single fiber transceiver

1x9 BIDI 155Mbps 1310nm-TX/1550nm-RX SMF 20km Single SC/ST/FC LVPECL PECL Transceiver Module





Description



The GIGAOPTO's GT9-S3503-20x series Bi-Directional (BiDi) 1×9 transceiver modules support 155Mbps and 20km transmission distance with single mode fibber (SMF). The 155Mbps PECL level dual fiber optical transceiver module is designed for fiber communication applications such as 100Base-BX Fast Ethernet, SDHSTM-1, SONET OC-3 and ATM.



The module integrates two circuits for receiving and transmitting, uses single +3.3V /+5V power supply. Interface level is compatible with standard PECL levels. The transmitter incorporates a highly reliable 1310nm FP Laser and a driver circuit that converts PECL data to the light signal. The receiver incorporates an efficient 1550nm InGaAs/InP PIN photo-diode converting the light signal into an electrical current which is amplified and regenerated into PECL compatible data.





Specification



Product Packaging BiDi 1x9 Speed 155Mb/s
Connector Type Single SC,FC,ST Link Length 20km
DDM No Fiber Mode Single Mode
Warranty 3 years Commercial Environment 0 to 70°C
Center Wavelength TX-1310nm RX-1550nm Power Supply Voltage 3.3V or 5V
Operating Relative Humidity <95% Supply Current 300mA
Laser Type FP PD Type PIN
Transmitter Power -15 ~ -8dBm Receiver Sensitivity <-28dBm
ER >9dB Saturation >-5dBm
Protocols IEC-60825 FDA , ITU-T G.957





Features



  • Industry Standard 1×9 package
  • Support 155Mbps data links
  • Single fiber bi-directional transceiver
  • Single SC, ST, or FC connector
  • A type: 1310nmFP Tx/1550nmRx

B type: 1550nmFP Tx/1310nmRx

  • Up to 20 km over single mode fiber
  • 3.3V or 5V single power supply
  • Standard PECL or LVPECL data output with signal detect indicator
  • Laser safety standard IEC-60825 compliant
  • ROHS compliant and Lead-Free
  • Operating case temperature: Standard: 0 to 70°C (32 to 158°F), Industrial: -40 to 85°C (-40 to 185°F)





Application



  • ATM 155Mbps Links
  • SONET/SDH Equipment Interconnect
  • Switch to Switch Interface
  • Digital video transmission system





Ordering Information



Part Number Description
GT9-S3503-20C 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 20km, 3.3V/5V, 0 to 70°C
GT9-S3503-20CF 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 20km, 3.3V/5V, 0 to 70°C
GT9-S3503-20CT 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 20km, 3.3V/5V, 0 to 70°C
GT9-S3503-20I 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 20km, 3.3V/5V, -40 to 85°C
GT9-S3503-20IF 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 20km, 3.3V/5V, -40 to 85°C
GT9-S3503-20IT 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 20km, 3.3V/5V, -40 to 85°C
GT9-S3503-20C3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 20km, 3.3V, 0 to 70°C
GT9-S3503-20CF3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 20km, 3.3V, 0 to 70°C
GT9-S3503-20CT3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 20km, 3.3V, 0 to 70°C
GT9-S3503-20I3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 20km, 3.3V,-40 to 85°C
GT9-S3503-20IF3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 20km, 3.3V,-40 to 85°C
GT9-S3503-20IT3 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 20km, 3.3V, -40 to 85°C
GT9-S3503-20C5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 20km, 5V, 0 to 70°C
GT9-S3503-20CF5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 20km, 5V, 0 to 70°C
GT9-S3503-20CT5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 20km, 5V, 0 to 70°C
GT9-S3503-20I5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 20km, 5V, -40 to 85°C
GT9-S3503-20IF5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 20km, 5V, -40 to 85°C
GT9-S3503-20IT5 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 20km, 5V, -40 to 85°C
