DFB 1x9 Optical Transceiver 2.5Gbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Module

Certification
China Shenzhen Gigaopto Technology Co., Ltd. certification
China Shenzhen Gigaopto Technology Co., Ltd. certification
I'm Online Chat Now

DFB 1x9 Optical Transceiver 2.5Gbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Module

DFB 1x9 Optical Transceiver 2.5Gbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Module

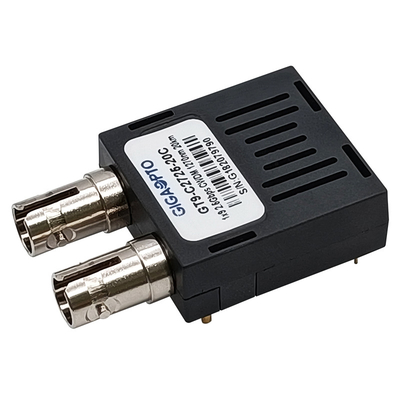

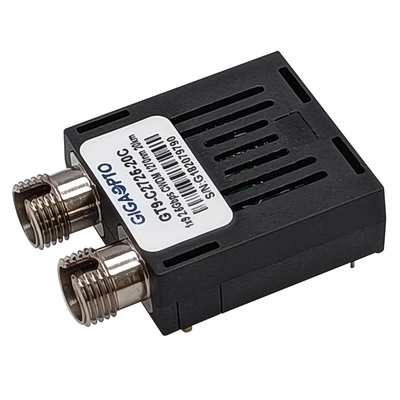

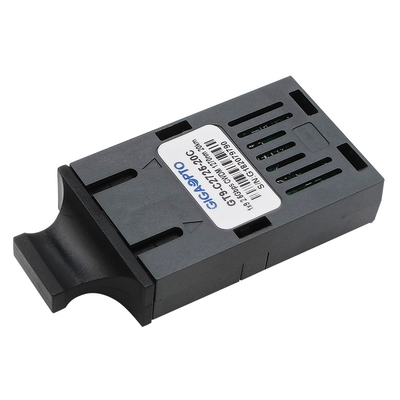

DFB 1x9 Optical Transceiver 2.5Gbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Module DFB 1x9 Optical Transceiver 2.5Gbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Module DFB 1x9 Optical Transceiver 2.5Gbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Module

Large Image :  DFB 1x9 Optical Transceiver 2.5Gbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Module

Product Details:
Place of Origin: Shenzhen, China
Brand Name: GIGAOPTO
Certification: CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Model Number: GT9-C2725-20C
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs /month

DFB 1x9 Optical Transceiver 2.5Gbps CWDM 1270nm 1610nm 20km Duplex SC ST FC SMF Module

Description
Product Package: 1x9 CWDM Data Transfer Rate: 2.5Gb/s
Transmission Distance: 20km Wavelength: 1270nm To 1610nm
Transmitter Type: DFB Connector Type: Duplex SC, FC, ST
Applications: 2x Fiber Channel, SDH STM-16/SONET OC-48 Equipment Interconnect Keywords: 1x9 2.5Gbps CWDM Module, 2.5G 20km Optical Transceiver
High Light:

DFB 1x9 Optical Transceiver

,

1x9 Optical Transceiver

,

1x9 CWDM

2.5Gbps 1x9 CWDM Transceiver Module SMF 1270nm to 1610nm 20km Duplex SC/ST/FC LVPECL PECL





Description



The GIGAOPTO's GT9-Cxx25-20x series single-mode transceivers are high performance and cost-effective CWDM 1×9 optical transceivers supporting data rates up to 2.5Gbps. There are 18 center wavelengths available from 1270nm to 1610nm. The 20nm channel spacing allows un-cooled laser operation. This CWDM 1×9 transceiver module provides 20km transmission distance over single mode fiber. 1X9 SIP package style transceivers are compliant with the industrial standard specification. The high performance uncooled CWDM DFB transmitter and high sensitivity PIN receiver provide superior performance for SDH STM-16 and SONET OC-48 CWDM applications.





Specification



Packaging CWDM 1×9 Bit Rate 2.5Gbps
Optical Connector Dual SC,FC,ST Link Length 20km
DDM Not Supported Cable Type Single Mode Fiber
Warranty 3 years Commercial Temperature 0 to 70°C (32 to 158°F)
Wavelength 1270nm to 1610nm Supply Voltage 3.3V or 5V
Laser Type DFB Receiver Type PIN
Transmitter Output Power -2 ~ 3 dBm Receiver Sensitivity <-20dBm
Extinction >8.2dB Overload >-3dBm
Protocols Telcordia (Bellcore) GR-468-CORE, RoHS





Features



  • Industry Standard 1x9 Footprint
  • Up to 2.5Gbps data links
  • 18-Wavelength CWDM DFB transmitter from 1270nm to 1610nm, with each step 20nm
  • Up to 20km transmission distance
  • SC/FC/ST optional optical interface transceiver module
  • Uncooled DFB Laser Transmitter
  • +3.3V or +5V single power supply
  • PECL / LVPECL compatible data input/output interface
  • PECL / LVPECL receiver signal-detected indication
  • Wave Solderable and Aqueous Washable
  • Class 1 laser safety standard IEC 60825 compliant
  • Compliant with ITU-T G.694.2
  • Compliant with Telcordia (Bellcore) GR-468-CORE
  • Operating case temperature: Commercial: 0℃~+70℃, Industrial: -40℃~+85℃





Application



  • SDH STM-16/SONET OC-48 Equipment Interconnect
  • 2x Fibre Channel
  • CWDM Network





Ordering Information



Part Number TX(xx=) Conn. Voltage Temp. Description
GT9-Cxx25-20C

27=1270nm

29=1290nm

31=1310nm

33=1330nm

35=1350nm

37=1370nm

39=1390nm

41=1410nm

43=1430nm

45=1450nm

47=1470nm

49=1490nm

51=1510nm

53=1530nm

55=1550nm

57=1570nm

59=1590nm

61=1610nm

SC 3.3V/5V 0 to 70°C 1x9 CWDM, 2.5Gbps, 20km, SMF, SC, 3.3V/5V Commercial Transceiver
GT9-Cxx25-20I SC 3.3V/5V -40 to 85°C 1x9 CWDM, 2.5Gbps, 20km, SMF, SC, 3.3V/5V Industrial Transceiver
GT9-Cxx25-20C3 SC 3.3V 0 to 70°C 1x9 CWDM, 2.5Gbps, 20km, SMF, SC, 3.3V Commercial Transceiver
GT9-Cxx25-20I3 SC 3.3V -40 to 85°C 1x9 CWDM, 2.5Gbps, 20km, SMF, SC, 3.3V Industrial Transceiver
GT9-Cxx25-20C5 SC 5V 0 to 70°C 1x9 CWDM, 2.5Gbps, 20km, SMF, SC, 5V Commercial Transceiver
GT9-Cxx25-20I5 SC 5V -40 to 85°C 1x9 CWDM, 2.5Gbps, 20km, SMF, SC, 5V Industrial Transceiver
GT9-Cxx25-20CF FC 3.3V/5V 0 to 70°C 1x9 CWDM, 2.5Gbps, 20km, SMF, FC, 3.3V/5V Commercial Transceiver
GT9-Cxx25-20IF FC 3.3V/5V -40 to 85°C 1x9 CWDM, 2.5Gbps, 20km, SMF, FC, 3.3V/5V Industrial Transceiver
GT9-Cxx25-20CF3 FC 3.3V 0 to 70°C 1x9 CWDM, 2.5Gbps, 20km, SMF, FC, 3.3V Commercial Transceiver
GT9-Cxx25-20IF3 FC 3.3V -40 to 85°C 1x9 CWDM, 2.5Gbps, 20km, SMF, FC, 3.3V Industrial Transceiver
GT9-Cxx25-20CF5 FC 5V 0 to 70°C 1x9 CWDM, 2.5Gbps, 20km, SMF, FC, 5V Commercial Transceiver
GT9-Cxx25-20IF5 FC 5V -40 to 85°C 1x9 CWDM, 2.5Gbps, 20km, SMF, FC, 5V Industrial Transceiver
GT9-Cxx25-20CT ST 3.3V/5V 0 to 70°C 1x9 CWDM, 2.5Gbps, 20km, SMF, ST, 3.3V/5V Commercial Transceiver
GT9-Cxx25-20IT ST 3.3V/5V -40 to 85°C 1x9 CWDM, 2.5Gbps, 20km, SMF, ST, 3.3V/5V Industrial Transceiver
GT9-Cxx25-20CT3 ST 3.3V 0 to 70°C 1x9 CWDM, 2.5Gbps, 20km, SMF, ST, 3.3V Commercial Transceiver
GT9-Cxx25-20IT3 ST 3.3V -40 to 85°C 1x9 CWDM, 2.5Gbps, 20km, SMF, ST, 3.3V Industrial Transceiver
GT9-Cxx25-20CT5 ST 5V 0 to 70°C 1x9 CWDM, 2.5Gbps, 20km, SMF, ST, 5V Commercial Transceiver
GT9-Cxx25-20IT5 ST 5V -40 to 85°C 1x9 CWDM, 2.5Gbps, 20km, SMF, ST, 5V Industrial Transceiver
