Product Details:
|
| Form Factor: | 1x9 | Speed: | 155Mb/s |
|---|---|---|---|
| Max Transmission Distance: | 40km | Wavelength: | 1270nm To 1610nm |
| Laser Type: | DFB | Connector: | Duplex SC, ST, FC |
| Fibre Mode: | Single Mode | Keywords: | 1x9 155Mbps CWDM, 40km Optical Transceiver, 155M 1270nm To 1610nm |
| Highlight: | 155Mbps 1x9 Optical Transceiver,CWDM 1x9 Optical Transceiver,40km LVPECL transceiver |
||

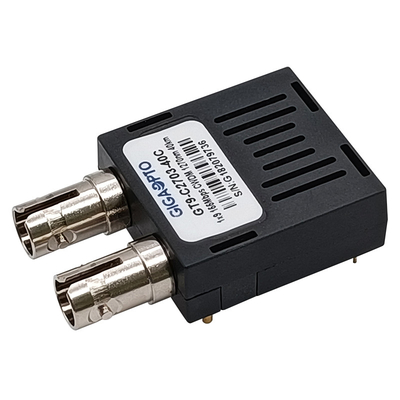

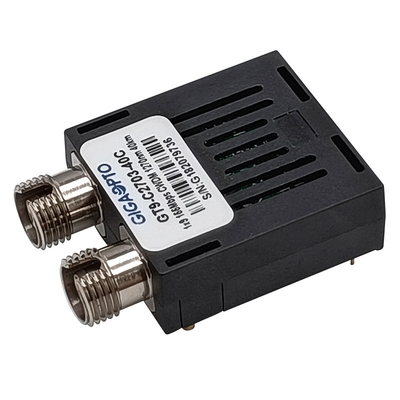

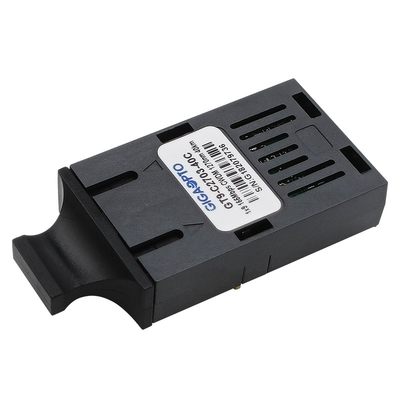

155Mbps 1x9 CWDM 1270nm to 1610nm SMF 40km Transceiver Module Duplex SC/ST/FC LVPECL PECL
Description
The GIGAOPTO's GT9-Cxx03-40x series single-mode transceivers are a low power, high performance CWDM 1×9 modules supporting data rate up to 155Mbps for bi-directional serial optical data communications such as SONET OC-3 / SDH STM-1 and Fast Ethernet. The CWDM 1x9 footprint fibre optical transceiver consists of a transmitter optical sub-assembly, a receiver optical sub-assembly and an electrical sub-assembly. There are eighteen center wavelengths from 1270nm to 1610nm, with each step 20nm. The 155Mb/s CWDM 1x9 transceiver are Class 1 laser products comply with EN60825.
Specification
| Form Factor | 1x9 | Data Transfer Rate | 155Mbps |
| Optical Connector | SC,FC,ST | Reach | 40km |
| DDM/DOM | No | Cable Type | Single Mode (SMF) |
| Warranty | 3 years | Ambient Temperature |
0 to 70°C (32 to 158°F) -40 to 85°C (-40 to 185°F) |
| Center Wavelength | 1270nm to 1610nm | Power Supply Voltage | 3.3V or 5V |
| Soldering Temperature | <260°C/10s | Icc | 300mA |
| Transmitter Type | DFB | PD Type | PIN |
| TX Optical Power | -5 to 0dBm | RX Sensitivity | <-34dBm |
| ER | >9dB | RX Saturation | >-3dBm |
| Protocols | IEEE802.3z, RoHS | ||
Features
Application
Ordering Information
| Part Number | TX(xx=) | Conn. | Voltage | Temp. | Description |
| GT9-Cxx03-40C |
27=1270nm 29=1290nm 31=1310nm 33=1330nm 35=1350nm 37=1370nm 39=1390nm 41=1410nm 43=1430nm 45=1450nm 47=1470nm 49=1490nm 51=1510nm 53=1530nm 55=1550nm 57=1570nm 59=1590nm 61=1610nm |
SC | 3.3V/5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 40km, SMF, SC, 3.3V/5V Commercial Transceiver |
| GT9-Cxx03-40I | SC | 3.3V/5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 40km, SMF, SC, 3.3V/5V Industrial Transceiver | |
| GT9-Cxx03-40C3 | SC | 3.3V | 0 to 70°C | 1x9 CWDM, 155Mbps, 40km, SMF, SC, 3.3V Commercial Transceiver | |
| GT9-Cxx03-40I3 | SC | 3.3V | -40 to 85°C | 1x9 CWDM, 155Mbps, 40km, SMF, SC, 3.3V Industrial Transceiver | |
| GT9-Cxx03-40C5 | SC | 5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 40km, SMF, SC, 5V Commercial Transceiver | |
| GT9-Cxx03-40I5 | SC | 5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 40km, SMF, SC, 5V Industrial Transceiver | |
| GT9-Cxx03-40CF | FC | 3.3V/5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 40km, SMF, FC, 3.3V/5V Commercial Transceiver | |
| GT9-Cxx03-40IF | FC | 3.3V/5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 40km, SMF, FC, 3.3V/5V Industrial Transceiver | |
| GT9-Cxx03-40CF3 | FC | 3.3V | 0 to 70°C | 1x9 CWDM, 155Mbps, 40km, SMF, FC, 3.3V Commercial Transceiver | |
| GT9-Cxx03-40IF3 | FC | 3.3V | -40 to 85°C | 1x9 CWDM, 155Mbps, 40km, SMF, FC, 3.3V Industrial Transceiver | |
| GT9-Cxx03-40CF5 | FC | 5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 40km, SMF, FC, 5V Commercial Transceiver | |
| GT9-Cxx03-40IF5 | FC | 5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 40km, SMF, FC, 5V Industrial Transceiver | |
| GT9-Cxx03-40CT | ST | 3.3V/5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 40km, SMF, ST, 3.3V/5V Commercial Transceiver | |
| GT9-Cxx03-40IT | ST | 3.3V/5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 40km, SMF, ST, 3.3V/5V Industrial Transceiver | |
| GT9-Cxx03-40CT3 | ST | 3.3V | 0 to 70°C | 1x9 CWDM, 155Mbps, 40km, SMF, ST, 3.3V Commercial Transceiver | |
| GT9-Cxx03-40IT3 | ST | 3.3V | -40 to 85°C | 1x9 CWDM, 155Mbps, 40km, SMF, ST, 3.3V Industrial Transceiver | |
| GT9-Cxx03-40CT5 | ST | 5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 40km, SMF, ST, 5V Commercial Transceiver | |
| GT9-Cxx03-40IT5 | ST | 5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 40km, SMF, ST, 5V Industrial Transceiver |
