Product Details:
|
| Form Type: | 1x9 CWDM | Max Data Rate: | 155Mb/s |
|---|---|---|---|
| Cable Length: | 20km | Center Wavelength: | 1270nm To 1610nm |
| LD Type: | DFB | Interface: | Duplex SC, ST, FC |
| Media: | Single Mode | Keywords: | 1x9 155Mbps CWDM, 20km Optical Transceiver, 1270nm To 1610nm CWDM |
| Highlight: | 1x9 SMF Transceiver Module,1610nm SMF Transceiver Module,20km Transceiver |
||

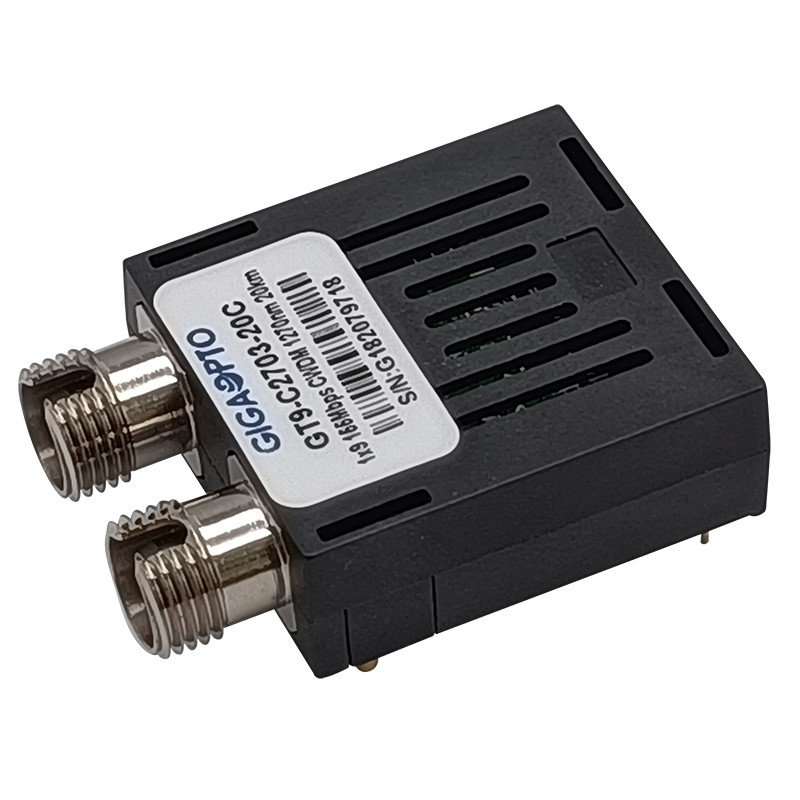

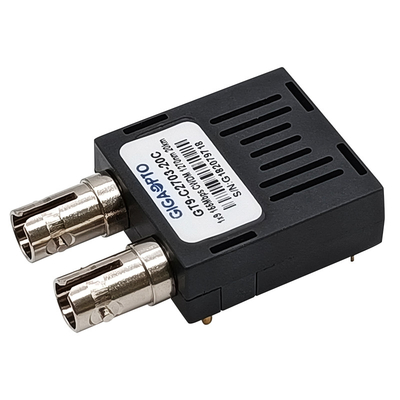

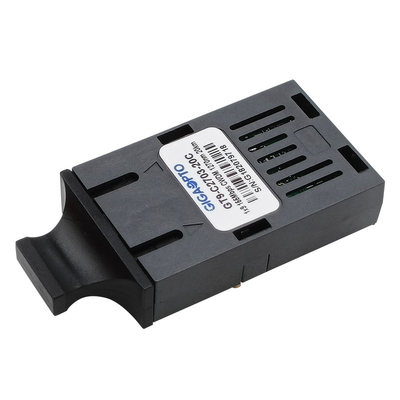

155Mbps 1x9 CWDM 1270nm to 1610nm SMF 20km Transceiver Module Duplex SC/ST/FC LVPECL PECL
Description
The GIGAOPTO's GT9-Cxx03-20x series single-mode transceivers are high performance, cost effective CWDM modules compliant with Gigabit Ethernet and Standard of IEEE-802.3. The transceiver series are designed for Fast Ethernet and SDH STM-1/SONET OC-3 application that requires data rate below 155Mb/s.
The 1x9 CWDM transceiver provides high-capacity, high-bis bandwidth communication solutions for multiplexed optical networks. There are eighteen center wavelengths available from 1270nm to 1610nm, each step 20nm. The transmitter uses a highly reliable CWDM DFB Laser and the receiver uses an efficient InGaAs PIN photodiode. The transceiver has excellent immunity and reliability.
Specification
| Package | 1x9 CWDM | Data Link | 155Mbps |
| Optical Connector | Duplex SC,FC,ST | Distance | 20km |
| DDM | No | Cable Type | Single Mode (SMF) |
| Warranty | 3 years | Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Centre Wavelength | 1270nm to 1610nm | Power Supply Voltage | 3.3V or 5V |
| Soldering Temperature | <260°C | Storage Temperature | -40 to 85°C(-40 to 185°F) |
| Optical Components | DFB | Receiver Type | PIN |
| Average Output Power | -5 to 0dBm | Receiver Sens. | <-34dBm |
| Extinction Ratio | >9dB | RX Overload | >-3dBm |
| Protocols | IEEE802.3z, RoHS | ||
Features
Application
Ordering Information
| Part Number | TX(xx=) | Conn. | Voltage | Temp. | Description |
| GT9-Cxx03-20C |
27=1270nm 29=1290nm 31=1310nm 33=1330nm 35=1350nm 37=1370nm 39=1390nm 41=1410nm 43=1430nm 45=1450nm 47=1470nm 49=1490nm 51=1510nm 53=1530nm 55=1550nm 57=1570nm 59=1590nm 61=1610nm |
SC | 3.3V/5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 20km, SMF, SC, 3.3V/5V Commercial Transceiver |
| GT9-Cxx03-20I | SC | 3.3V/5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 20km, SMF, SC, 3.3V/5V Industrial Transceiver | |
| GT9-Cxx03-20C3 | SC | 3.3V | 0 to 70°C | 1x9 CWDM, 155Mbps, 20km, SMF, SC, 3.3V Commercial Transceiver | |
| GT9-Cxx03-20I3 | SC | 3.3V | -40 to 85°C | 1x9 CWDM, 155Mbps, 20km, SMF, SC, 3.3V Industrial Transceiver | |
| GT9-Cxx03-20C5 | SC | 5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 20km, SMF, SC, 5V Commercial Transceiver | |
| GT9-Cxx03-20I5 | SC | 5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 20km, SMF, SC, 5V Industrial Transceiver | |
| GT9-Cxx03-20CF | FC | 3.3V/5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 20km, SMF, FC, 3.3V/5V Commercial Transceiver | |
| GT9-Cxx03-20IF | FC | 3.3V/5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 20km, SMF, FC, 3.3V/5V Industrial Transceiver | |
| GT9-Cxx03-20CF3 | FC | 3.3V | 0 to 70°C | 1x9 CWDM, 155Mbps, 20km, SMF, FC, 3.3V Commercial Transceiver | |
| GT9-Cxx03-20IF3 | FC | 3.3V | -40 to 85°C | 1x9 CWDM, 155Mbps, 20km, SMF, FC, 3.3V Industrial Transceiver | |
| GT9-Cxx03-20CF5 | FC | 5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 20km, SMF, FC, 5V Commercial Transceiver | |
| GT9-Cxx03-20IF5 | FC | 5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 20km, SMF, FC, 5V Industrial Transceiver | |
| GT9-Cxx03-20CT | ST | 3.3V/5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 20km, SMF, ST, 3.3V/5V Commercial Transceiver | |
| GT9-Cxx03-20IT | ST | 3.3V/5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 20km, SMF, ST, 3.3V/5V Industrial Transceiver | |
| GT9-Cxx03-20CT3 | ST | 3.3V | 0 to 70°C | 1x9 CWDM, 155Mbps, 20km, SMF, ST, 3.3V Commercial Transceiver | |
| GT9-Cxx03-20IT3 | ST | 3.3V | -40 to 85°C | 1x9 CWDM, 155Mbps, 20km, SMF, ST, 3.3V Industrial Transceiver | |
| GT9-Cxx03-20CT5 | ST | 5V | 0 to 70°C | 1x9 CWDM, 155Mbps, 20km, SMF, ST, 5V Commercial Transceiver | |
| GT9-Cxx03-20IT5 | ST | 5V | -40 to 85°C | 1x9 CWDM, 155Mbps, 20km, SMF, ST, 5V Industrial Transceiver |
