Product Details:
|
| Form Type: | 1x9 | Data Link: | 155Mb/s |
|---|---|---|---|
| Cable Length: | 20km | Centre Wavelength: | 1310nm |
| Laser Type: | FP | Optical Connector: | Duplex SC, ST, FC |
| Cable Type: | SMF | Keywords: | 1x9 155Mbps 1310nm, 1x9 20km Optical Transceiver, 1x9 Single ModeOptical Module |

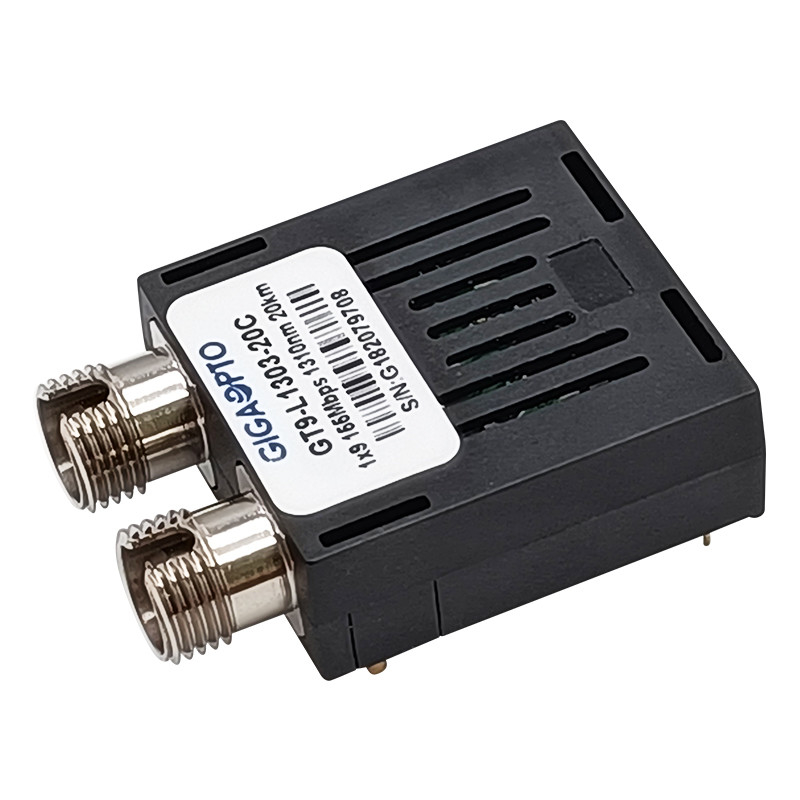

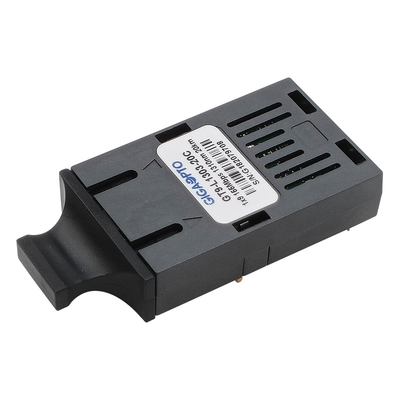

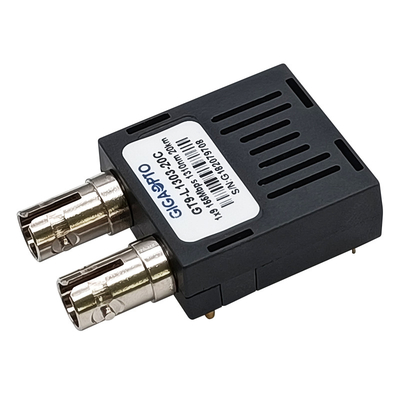

155Mbps 1310nm 1x9 Transceiver Module SMF 20km Duplex SC/ST/FC LVPECL PECL
Description
The GIGAOPTO's GT9-L1303-20x series single-mode transceivers are low power, high performance module for bi-directional serial optical data communications such as SONET OC-3 / SDH STM-1 and Fast Ethernet. This series 1x9 transceiver module supports up to 20km transmission distance over single mode fiber at a nominal wavelength of 1310nm.
The transmitter incorporates a 1310nm FP Laser and a driver circuit that converts PECL data to the light signal, and the receiver incorporates an InGaAs/InP PIN photodiode converting the light signal into an electrical current which is amplified and regenerated into PECL compatible data.
This single mode transceiver is Class 1 laser product that complies with IEC 60825.
Specification
| Product Packaging | 1x9 | Data Rate (Mb/s) | 155Mb/s |
| Connector | Duplex SC,FC,ST | Reach | 20km |
| DDM/DOM | No | Media | Single Mode Fiber |
| Warranty | 3 years | Operating Temperature |
Commercial 0 to 70°C (32 to 158°F) |
| Center Wavelength | 1310nm | Power Supply Voltage | 3.3V or 5V |
| Soldering Temperature | <260°C | Current | 300mA |
| LD Type | FP | Photo-detector | PIN |
| Optical Output Power | -15 to -8dBm | Sensitivity | <-34dBm |
| ER | >9dB | Overload | >-3dBm |
| Protocols | ITU-T G.957 Compliant | ||
Features
Application
Ordering Information
| Part Number | Description |
| GT9-L1303-20C | 1x9 Transceiver Module, 155Mbps, SC, Single Mode 1310nm 20km, 3.3V/5V, 0 to 70°C |
| GT9-L1303-20CF | 1x9 Transceiver Module, 155Mbps, FC, Single Mode 1310nm 20km, 3.3V/5V, 0 to 70°C |
| GT9-L1303-20CT | 1x9 Transceiver Module, 155Mbps, ST, Single Mode 1310nm 20km, 3.3V/5V, 0 to 70°C |
| GT9-L1303-20I | 1x9 Transceiver Module, 155Mbps, SC, Single Mode 1310nm 20km, 3.3V/5V, -40 to 85°C |
| GT9-L1303-20IF | 1x9 Transceiver Module, 155Mbps, FC, Single Mode 1310nm 20km, 3.3V/5V, -40 to 85°C |
| GT9-L1303-20IT | 1x9 Transceiver Module, 155Mbps, ST, Single Mode 1310nm 20km, 3.3V/5V, -40 to 85°C |
| GT9-L1303-20C3 | 1x9 Transceiver Module, 155Mbps, SC, Single Mode 1310nm 20km, 3.3V, 0 to 70°C |
| GT9-L1303-20CF3 | 1x9 Transceiver Module, 155Mbps, FC, Single Mode 1310nm 20km, 3.3V, 0 to 70°C |
| GT9-L1303-20CT3 | 1x9 Transceiver Module, 155Mbps, ST, Single Mode 1310nm 20km, 3.3V, 0 to 70°C |
| GT9-L1303-20I3 | 1x9 Transceiver Module, 155Mbps, SC, Single Mode 1310nm 20km, 3.3V,-40 to 85°C |
| GT9-L1303-20IF3 | 1x9 Transceiver Module, 155Mbps, FC, Single Mode 1310nm 20km, 3.3V,-40 to 85°C |
| GT9-L1303-20IT3 | 1x9 Transceiver Module, 155Mbps, ST, Single Mode 1310nm 20km, 3.3V, -40 to 85°C |
| GT9-L1303-20C5 | 1x9 Transceiver Module, 155Mbps, SC, Single Mode 1310nm 20km, 5V, 0 to 70°C |
| GT9-L1303-20CF5 | 1x9 Transceiver Module, 155Mbps, FC, Single Mode 1310nm 20km, 5V, 0 to 70°C |
| GT9-L1303-20CT5 | 1x9 Transceiver Module, 155Mbps, ST, Single Mode 1310nm 20km, 5V, 0 to 70°C |
| GT9-L1303-20I5 | 1x9 Transceiver Module, 155Mbps, SC, Single Mode 1310nm 20km, 5V, -40 to 85°C |
| GT9-L1303-20IF5 | 1x9 Transceiver Module, 155Mbps, FC, Single Mode 1310nm 20km, 5V, -40 to 85°C |
| GT9-L1303-20IT5 | 1x9 Transceiver Module, 155Mbps, ST, Single Mode 1310nm 20km, 5V, -40 to 85°C |
Pin Definition
Typical Application Circuit
Note 1: Operating Voltage: 3.3V or 5V
Note 2: 3.3V, R1=R3=R5=R7=130R, R2=R4=R6=R8=82R, R9=270R
Note 3: 5V, R1=R3=R5=R7=82R, R2=R4=R6=R8=130R, R9=510R
Package Outline
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
