Product Details:
|
| Package: | 1x9 | Speed: | 64K To 52Mbps |
|---|---|---|---|
| Max Reach: | 20km | Centre Wavelength: | 1310nm |
| Transmitter Type: | FP | Connector: | Duplex SC, ST, FC |
| Fiber Mode: | Single Mode Fiber | Keywords: | 1x9 64K~52Mbps, 1x9 1310nm 20km, 1310nm LVTTL/TTL DDM |
| Highlight: | 1310nm 1x9 Optical Transceiver,LVTTL 1x9 Optical Transceiver,20km Transceiver DDM |
||

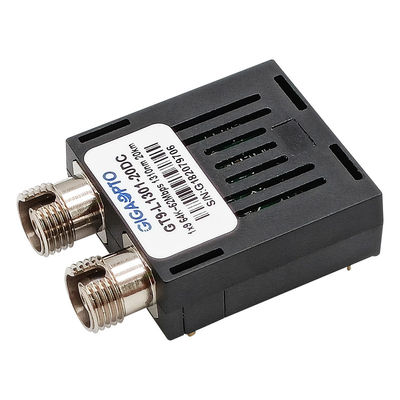

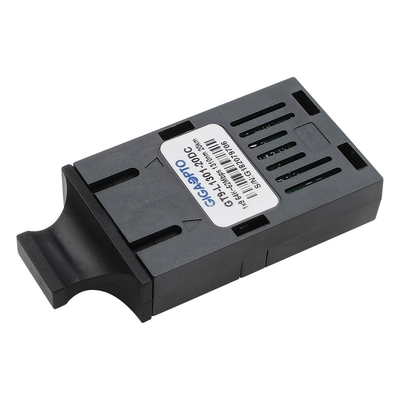

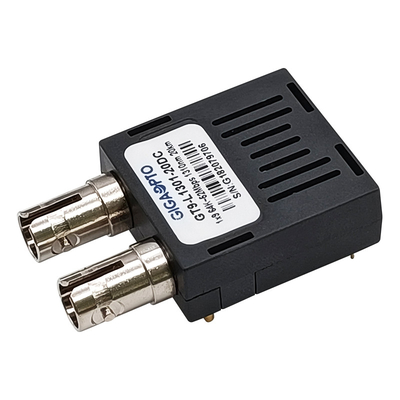

Single-Mode 64k to 52Mbps 1x9 1310nm 20km Duplex SC/ST/FC DDM I2C LVTTL/TTL Transceiver Module
Description
The GIGAOPTO's GT9-L1301-20Dx series single-mode transceivers are high-performance, cost-effective optical modules with a TTL data interface, designed for SONET/SDH equipment at a low data rate of 52 Mbps. It is industry-standard 1×9 SIP package style with a duplex SC, ST, and FC connector interface. The 1×9 transceiver supports up to 20km transmission distance over single mode fiber cable (SMF).
The transmitter section uses a multiple quantum well FP laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A TTL logic interface simplifies interface to the external circuitry.
Specification
| Product Package | 1x9 | Data Transfer Rate | 64K to 52M |
| Optical Connector | Duplex SC,FC,ST | Distance | 20km |
| DDM | Supported | Media | SMF |
| Warranty | 3 years | Temperature Range |
Commercial 0 to 70°C (32 to 158°F) |
| Center Wavelength | 1310nm | Power Supply Voltage | 3.3V or 5V |
| Storage Temperature | -40 to 85°C (-40 to 185°F) | Current | 250mA |
| Laser Type | FP | Photo-detector | PIN |
| Transmitter Output Power | -14 ~ -3 dBm | Sensitivity | <-34dBm |
| Extinction Ratio | > 10 dB | Overload | >0dBm |
| Protocols | RoHS Compliant | ||
Features
Application
Ordering Information
| Part Number | Description |
| GT9-L1301-20DC | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL SC, Single Mode 1310nm 20km, 3.3V/5V, 0 to 70°C |
| GT9-L1301-20DCF | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL FC, Single Mode 1310nm 20km, 3.3V/5V, 0 to 70°C |
| GT9-L1301-20DCT | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL ST, Single Mode 1310nm 20km, 3.3V/5V, 0 to 70°C |
| GT9-L1301-20DI | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL SC, Single Mode 1310nm 20km, 3.3V/5V, -40 to 85°C |
| GT9-L1301-20DIF | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL FC, Single Mode 1310nm 20km, 3.3V/5V, -40 to 85°C |
| GT9-L1301-20DIT | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL ST, Single Mode 1310nm 20km, 3.3V/5V, -40 to 85°C |
| GT9-L1301-20DC3 | 1x9 Transceiver Module, 64K to 52M, LVTTL SC, Single Mode 1310nm 20km, 3.3V, 0 to 70°C |
| GT9-L1301-20DCF3 | 1x9 Transceiver Module, 64K to 52M, LVTTL FC, Single Mode 1310nm 20km, 3.3V, 0 to 70°C |
| GT9-L1301-20DCT3 | 1x9 Transceiver Module, 64K to 52M, LVTTL ST, Single Mode 1310nm 20km, 3.3V, 0 to 70°C |
| GT9-L1301-20DI3 | 1x9 Transceiver Module, 64K to 52M, LVTTL SC, Single Mode 1310nm 20km, 3.3V,-40 to 85°C |
| GT9-L1301-20DIF3 | 1x9 Transceiver Module, 64K to 52M, LVTTL FC, Single Mode 1310nm 20km, 3.3V,-40 to 85°C |
| GT9-L1301-20DIT3 | 1x9 Transceiver Module, 64K to 52M, LVTTL ST, Single Mode 1310nm 20km, 3.3V, -40 to 85°C |
| GT9-L1301-20DC5 | 1x9 Transceiver Module, 64K to 52M, TTL SC, Single Mode 1310nm 20km, 5V, 0 to 70°C |
| GT9-L1301-20DCF5 | 1x9 Transceiver Module, 64K to 52M, TTL FC, Single Mode 1310nm 20km, 5V, 0 to 70°C |
| GT9-L1301-20DCT5 | 1x9 Transceiver Module, 64K to 52M, TTL ST, Single Mode 1310nm 20km, 5V, 0 to 70°C |
| GT9-L1301-20DI5 | 1x9 Transceiver Module, 64K to 52M, TTL SC, Single Mode 1310nm 20km, 5V, -40 to 85°C |
| GT9-L1301-20DIF5 | 1x9 Transceiver Module, 64K to 52M, TTL FC, Single Mode 1310nm 20km, 5V, -40 to 85°C |
| GT9-L1301-20DIT5 | 1x9 Transceiver Module, 64K to 52M, TTL ST, Single Mode 1310nm 20km, 5V, -40 to 85°C |
