Product Details:
|
| Packaging: | 1x9 | Data Link: | 64K To 52Mbps |
|---|---|---|---|
| Max Cable Distance: | 2km | Centre Wavelength: | 850nm |
| LD Type: | VCSEL | Interface: | Duplex SC, ST, FC |
| Fiber Type: | Fiber Type | Keywords: | 1x9 64K~52Mbps, 1x9 850nm 2km Transceiver, Multi Mode Optical Module |
| Highlight: | 2km 1x9 Optical Transceiver,MMF 1x9 Optical Transceiver,1x9 transceiver |
||

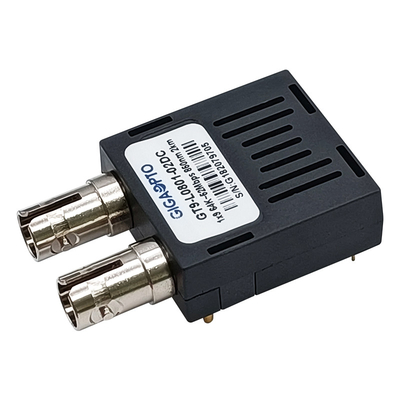

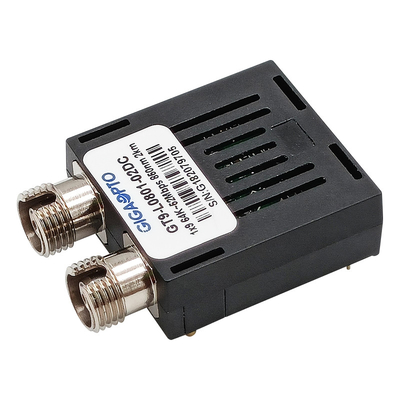

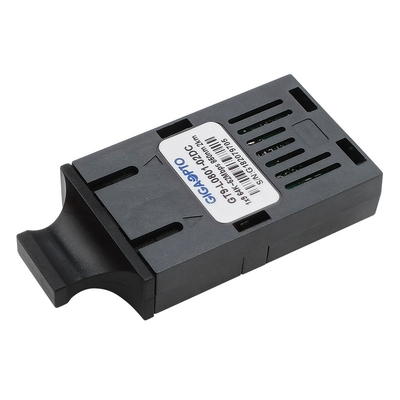

2-Core 64K to 52Mbps Multi-Mode 1x9 850nm 2km Duplex SC/ST/FC LVTTL/TTL DDM I2C Transceiver Module
Description
The GIGAOPTO's GT9-L0801-02Dx series transceivers are low power, high performance modules operating at a nominal wavelength of 850nm. The 1×9 transceiver modules contain a TTL data interface that supports a data rate of 64K to 52Mbps and link length up to 2km over multi-mode fiber cable (MMF). They are supplied in the industry standard 1×9 SIP package style with a duplex SC,ST,FC connector interface. This multi-mode transceiver is a Class 1 laser product.
Specification
| Packaging | 1x9 | Data Rate | 64K ~ 52M |
|
Optical Connector |
Duplex SC,FC,ST | Transmission Distance | 2km |
| DDM/DOM | YES | Cable Type | Multi-Mode (MMF) |
| Warranty | 3 years | Temperature |
Commercial 0 to 70°C (32 to 158°F) |
| Center Wavelength | 850nm | Power Supply Voltage | 3.3V or 5V |
| Operating Humidity | 5% ~ 85% | Power Supply Current | 150mA |
| Laser Type | VCSEL | PD Type | PIN |
| TX Optical Power | -17 ~ -13 dBm | RX Sensitivity | <-32dBm |
| ER | >10dB | RX Saturation | >-3dBm |
| Protocols | IEEE C37.94 / IEC 62843 | ||
Features
Application
Ordering Information
| Part Number | Description |
| GT9--L0801-02DC | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL SC, Multi Mode 850nm 2km, 3.3V/5V, 0 to 70°C |
| GT9-L0801-02DCF | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL FC, Multi Mode 850nm 2km, 3.3V/5V, 0 to 70°C |
| GT9-L0801-02DCT | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL ST, Multi Mode 850nm 2km, 3.3V/5V, 0 to 70°C |
| GT9-L0801-02DI | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL SC, Multi Mode 850nm 2km, 3.3V/5V, -40 to 85°C |
| GT9-L0801-02DIF | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL FC, Multi Mode 850nm 2km, 3.3V/5V, -40 to 85°C |
| GT9-L0801-02DIT | 1x9 Transceiver Module, 64K to 52M, LVTTL/TTL ST, Multi Mode 850nm 2km, 3.3V/5V, -40 to 85°C |
| GT9-L0801-02DC3 | 1x9 Transceiver Module, 64K to 52M, LVTTL SC, Multi Mode 850nm 2km, 3.3V, 0 to 70°C |
| GT9-L0801-02DCF3 | 1x9 Transceiver Module, 64K to 52M, LVTTL FC, Multi Mode 850nm 2km, 3.3V, 0 to 70°C |
| GT9-L0801-02DCT3 | 1x9 Transceiver Module, 64K to 52M, LVTTL ST, Multi Mode 850nm 2km, 3.3V, 0 to 70°C |
| GT9-L0801-02DI3 | 1x9 Transceiver Module, 64K to 52M, LVTTL SC, Multi Mode 850nm 2km, 3.3V,-40 to 85°C |
| GT9-L0801-02DIF3 | 1x9 Transceiver Module, 64K to 52M, LVTTL FC, Multi Mode 850nm 2km, 3.3V,-40 to 85°C |
| GT9-L0801-02DIT3 | 1x9 Transceiver Module, 64K to 52M, LVTTL ST, Multi Mode 850nm 2km, 3.3V, -40 to 85°C |
| GT9-L0801-02DC5 | 1x9 Transceiver Module, 64K to 52M, TTL SC, Multi Mode 850nm 2km, 5V, 0 to 70°C |
| GT9-L0801-02DCF5 | 1x9 Transceiver Module, 64K to 52M, TTL FC, Multi Mode 850nm 2km, 5V, 0 to 70°C |
| GT9-L0801-02DCT5 | 1x9 Transceiver Module, 64K to 52M, TTL ST, Multi Mode 850nm 2km, 5V, 0 to 70°C |
| GT9-L0801-02DI5 | 1x9 Transceiver Module, 64K to 52M, TTL SC, Multi Mode 850nm 2km, 5V, -40 to 85°C |
| GT9-L0801-02DIF5 | 1x9 Transceiver Module, 64K to 52M, TTL FC, Multi Mode 850nm 2km, 5V, -40 to 85°C |
| GT9-L0801-02DIT5 | 1x9 Transceiver Module, 64K to 52M, TTL ST, Multi Mode 850nm 2km, 5V, -40 to 85°C |
